Open-Q™ 624A Development Kit

3.8.25

HDMI Connector J25

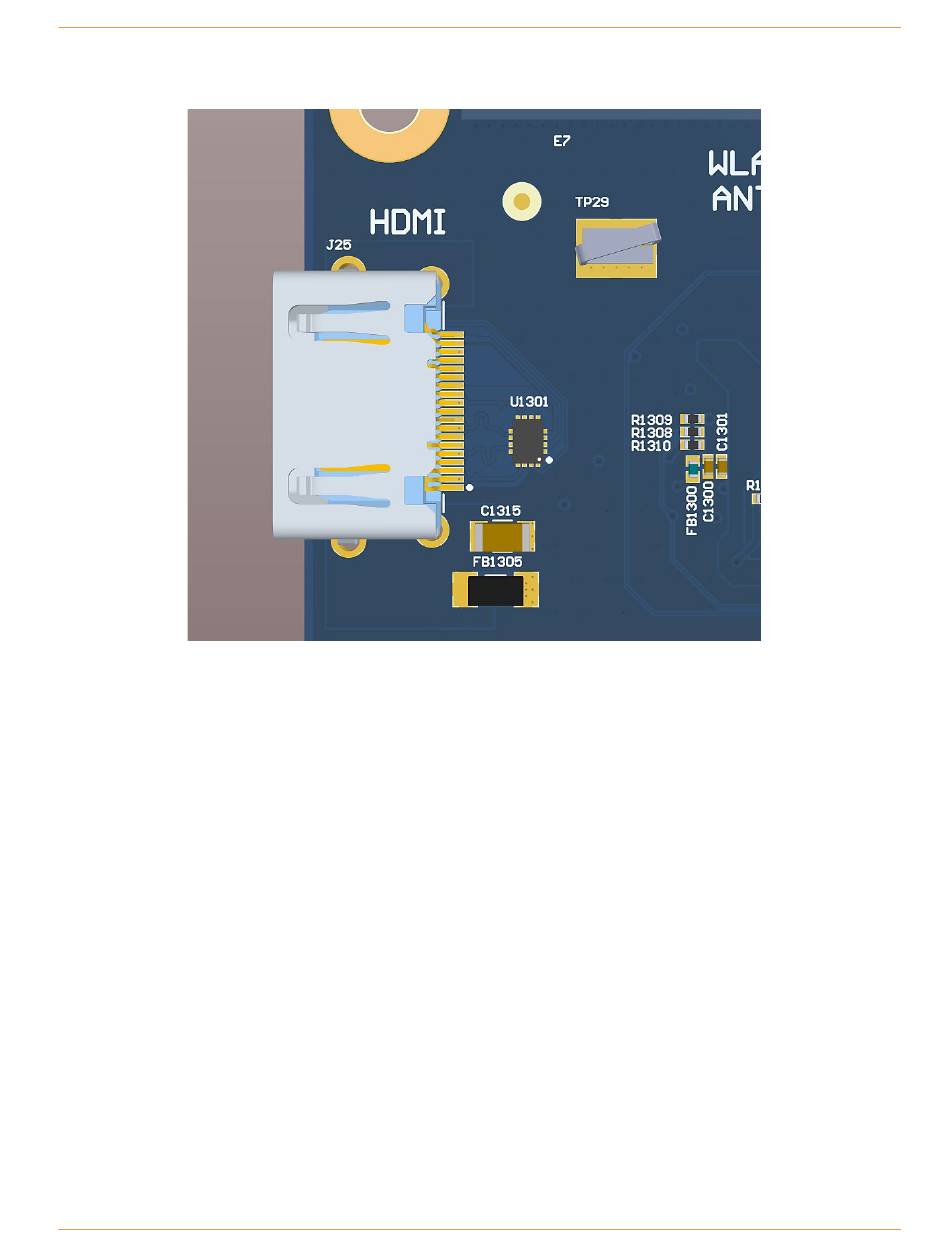

Figure 28 HDMI Connector J25

The on-board HDMI type A connector enables the Open-Q 624A development kit to connect to an external

HDMI monitor/ television via an HDMI cable. The Open-Q 624A supports up to 1080P 60fps. Note that the

HDMI port is for evaluation purposes only and may not be HDMI compliant.

Open-Q™ 624A Development Kit User Kit
