LEDs

The Power Debugger has five LEDs, which indicate the status of the tool. The debug LEDs are identical in function to
those on Atmel-ICE and previous debugger hardware. For those familiar with the Atmel-ICE debugger, the entire
central section of the Power Debugger resembles the Atmel-ICE.

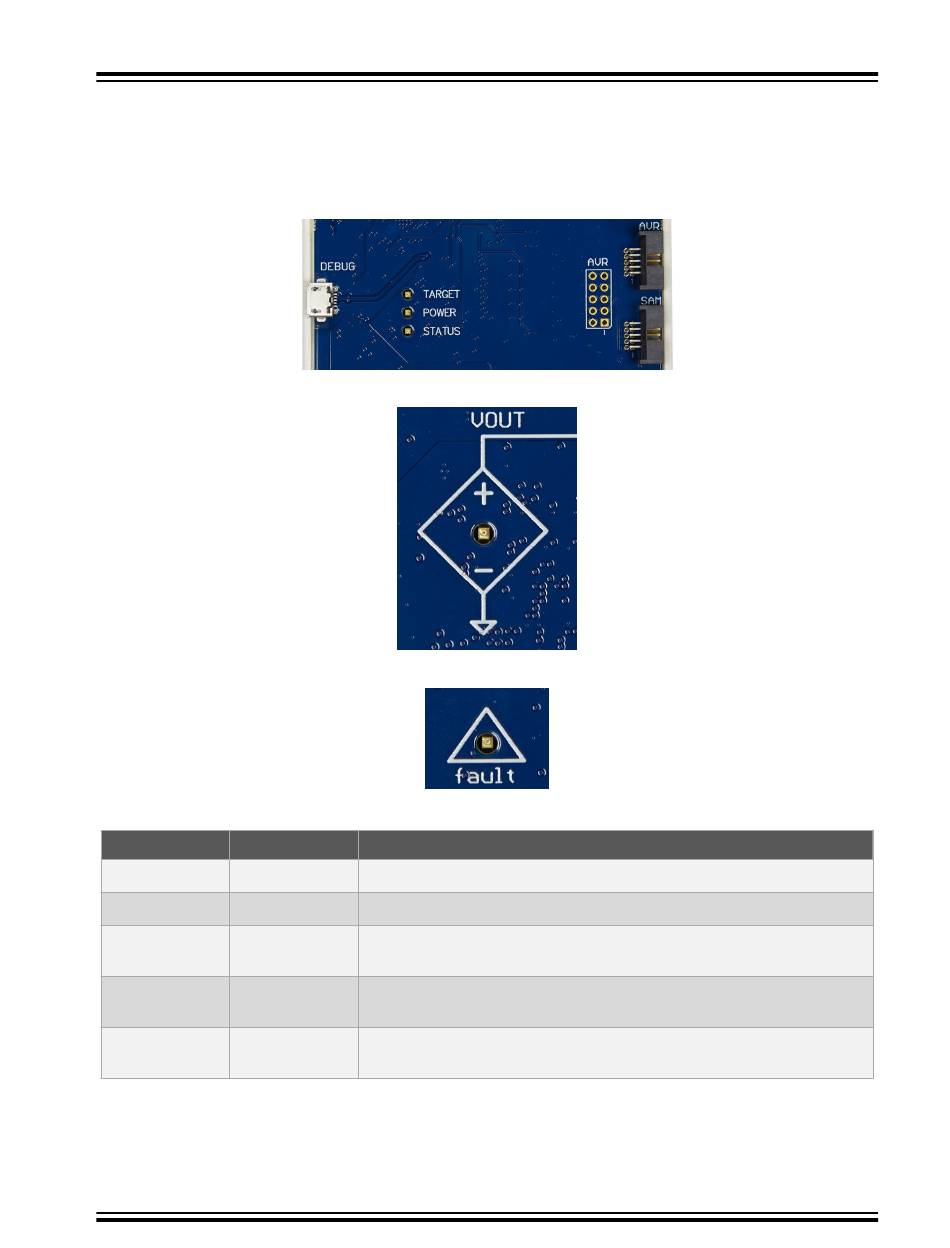

Figure 5-8. Debugger LEDs
Figure 5-9. VOUT LED, used to Indicate the Status of the Target Voltage Supply
Figure 5-10. Fault LED, used to Indicate the Status of the Analog Sampling Circuitry
Table 5-1. LEDs
LED
TARGET
POWER
STATUS
VOUT
Fault
©
2020 Microchip Technology Inc.
Function
Target Power GREEN when target power is OK.
Main Power RED when main-board power is OK.
Status Flashing GREEN when the target is running/stepping. OFF when target is
stopped.
Target Voltage GREEN when target output voltage is ON. Flashing when an overcurrent is
detected in the A channel.
Analog Fault RED when a voltage or current outside recommended operating conditions
is detected on the analog pins.
