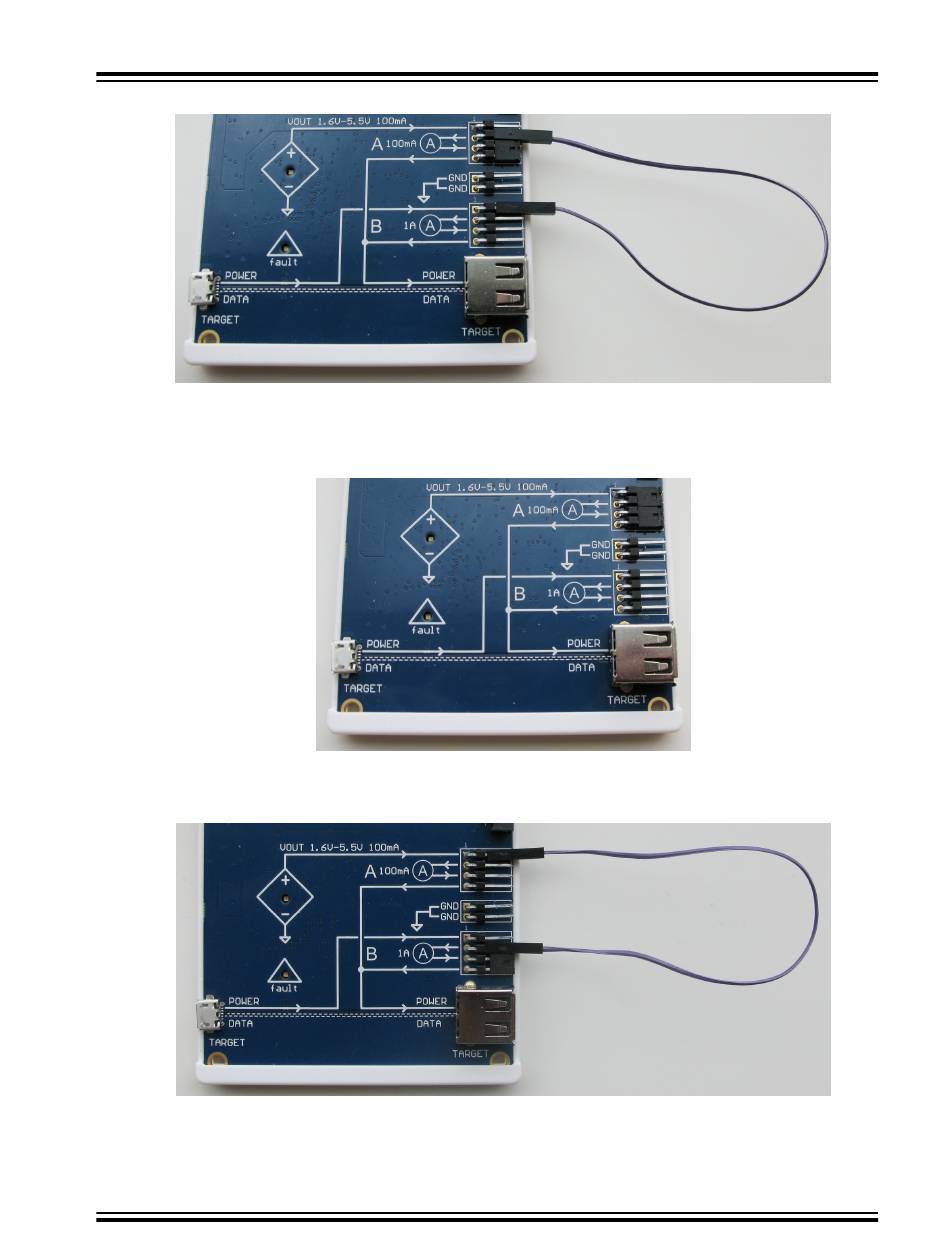

Figure 5-6. Jumper Configuration
•
Sourcing USB power from the DEBUG USB connector through the variable voltage source through the A
channel
Mount both jumpers on the A channel as shown here.
Figure 5-7. Jumper Configuration
•
Sourcing USB power from the DEBUG USB connector through the variable voltage source through the B
channel
Use a single wire to connect POWER to the B channel and a jumper to connect the output as shown here.
©
2020 Microchip Technology Inc.
User Guide
Power Debugger
Hardware Description
DS40002201A-page 82
