To do:
•
•
•
Switch back to the Data Visualizer to set up the Code Profiling interface and to connect the two variables to a graph.
3.2.12.1 Open Code Profiling Configuration Dialog
To do:
•
To do:
•
3.2.12.2 Add Data Polling Locations
To do:
•
•
©
2020 Microchip Technology Inc.

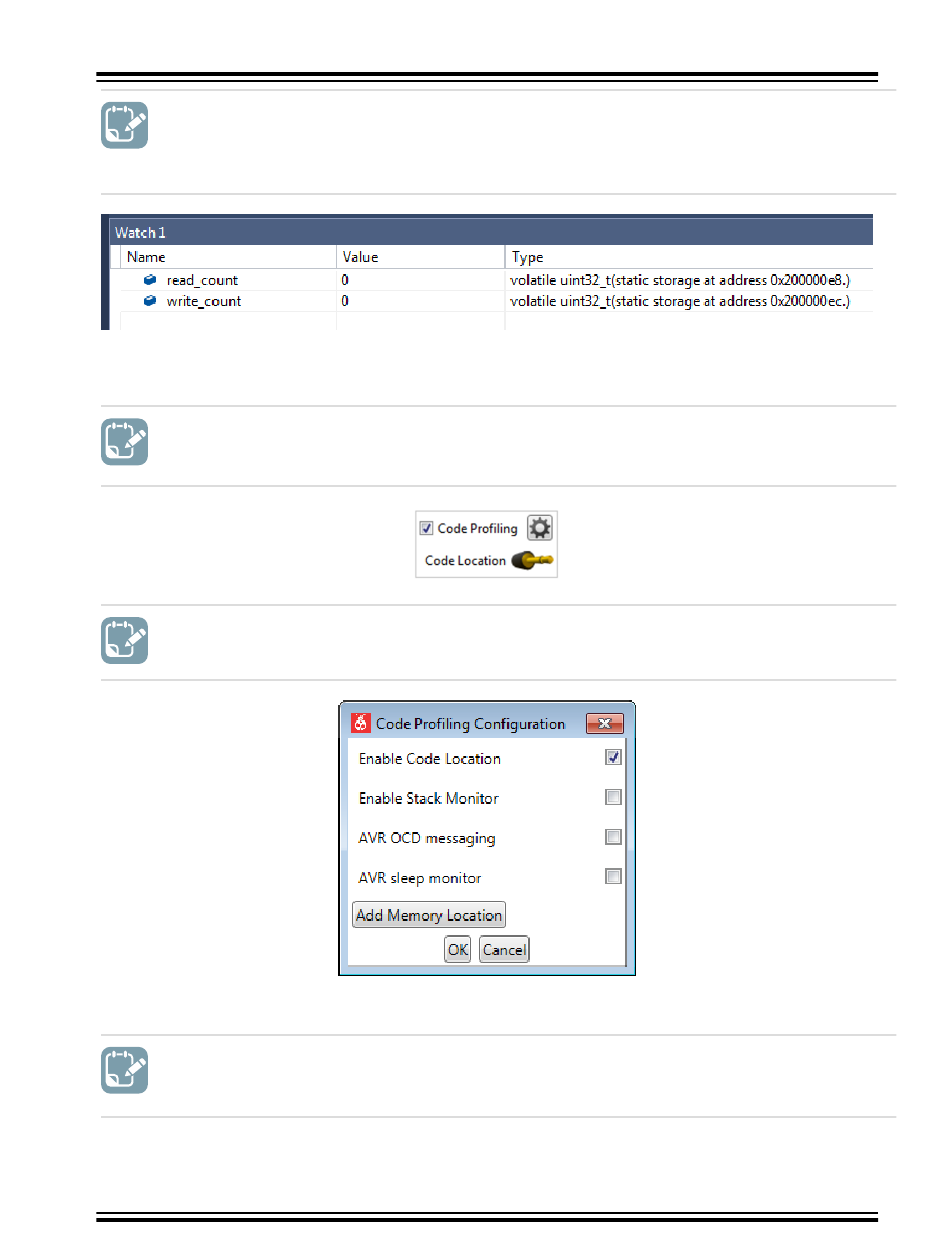

Locate the two global variables added to ui.c
Right-click each variable and select Add to Watch
Examine the type field of each variable in the Watch window to find its location
Enable the Code Profiling interface by deselecting the check box for the Code Profiling interface in
the DGI Control Panel
Open the Code Profiling Configuration window by pushing the Gear button
Click the Add Memory Location button for each memory location to be added
Fill in the address and format of each location
