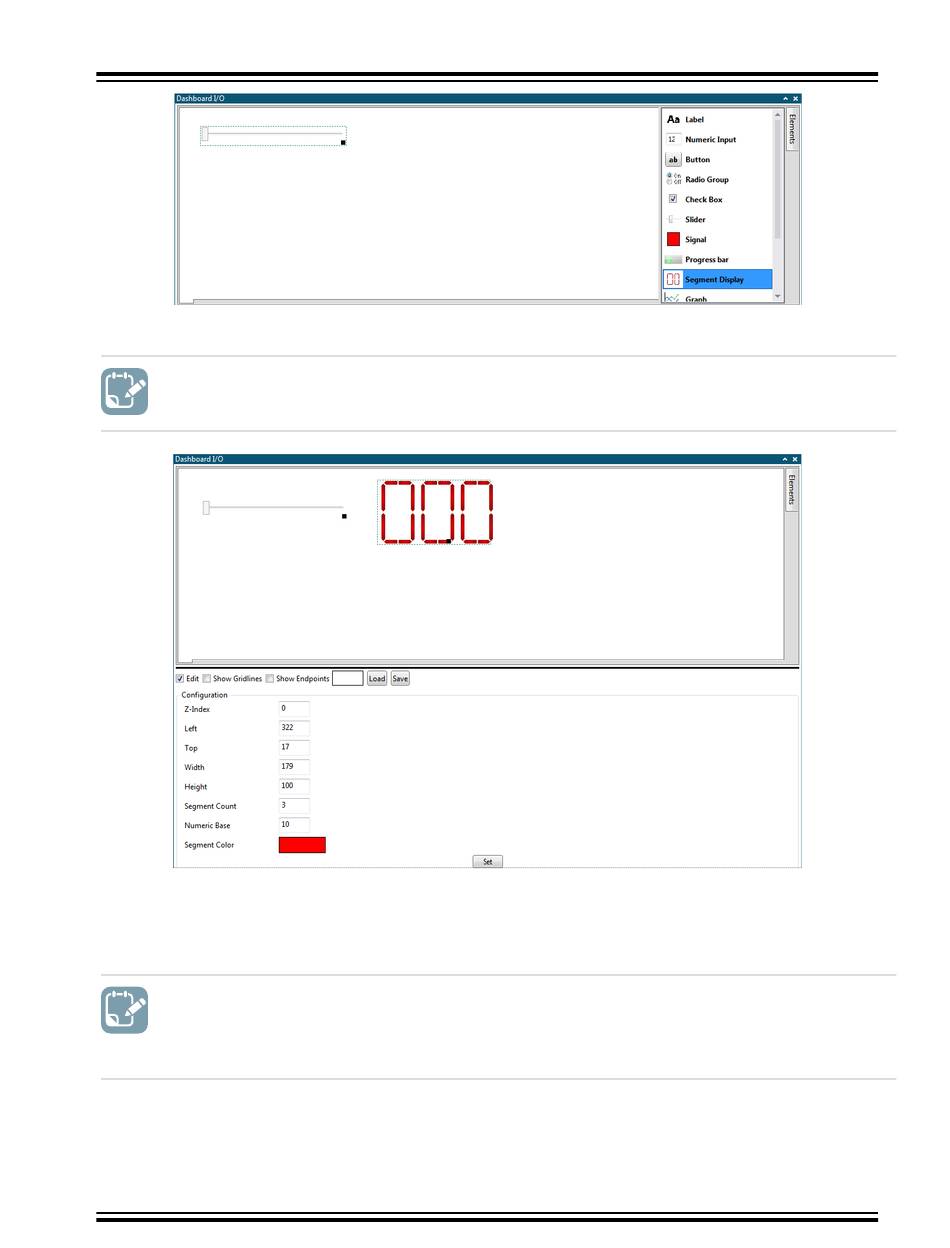

A segment display control needs to have some configuration parameters.
To do:  Select the segment display element and set its properties:
Segment Count = 3
The slider control can now be used as a source which can be connected to any relevant sink in Data Visualizer. The
segment display can similarly be used as a sink to connect any relevant source to.
The Code Profiling data polling interface provides both a source of data and a sink of data. The slider can now be
connected to the sink and the segment display to the source.
To do: 
Deselect the Edit checkbox
Select the Show Endpoints checkbox
Connect sources to sinks by dragging each source plug and drop it on a sink
©
2020 Microchip Technology Inc.
User Guide
Power Debugger
Detailed Use Cases
DS40002201A-page 51
