Hardware Description

5.1

Overview

The Microchip Power Debugger hardware consists of three main sections; the debugger, analog front-end, and data
gateway. The logical construction of the tool is shown here.

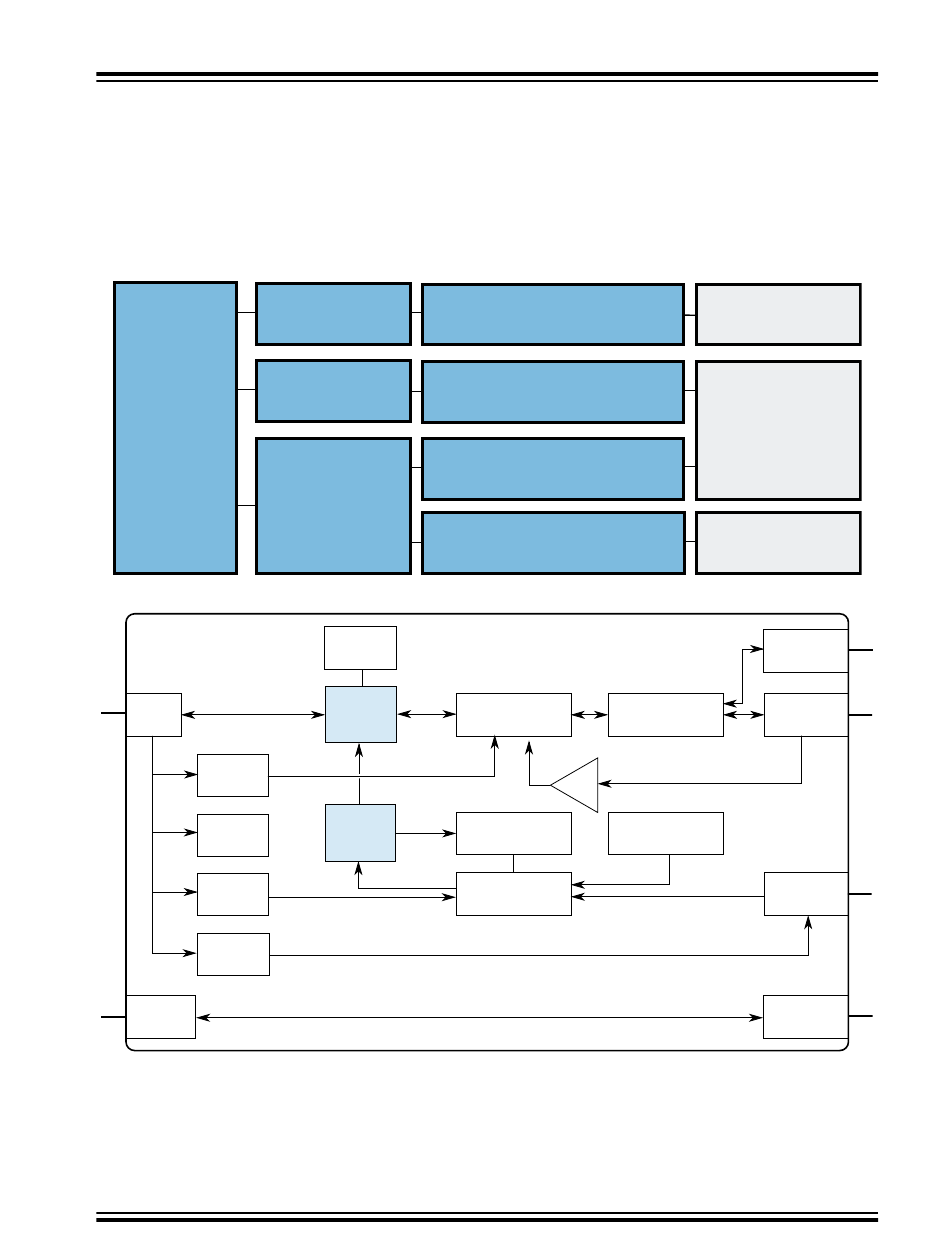

Figure 5-1. Logical Construction of the Power Debugger
USB
composite
device
Figure 5-2. Hardware Block Diagram
USB
DEBUG
12V
PSU
3.3V
PSU
ANALOG
PSU
TARGET
PSU
USB
TARGET
Power is supplied to the Power Debugger from the USB bus connected to the DEBUG port, regulated to 3.3V by a
step-down switch-mode regulator. The VTG pins are used as a reference input-only, and a separate power supply
feeds the variable-voltage side of the on-board level converters. At the heart of the Power Debugger main board is
the Microchip AVR UC3 microcontroller AT32UC3A3256, which runs at up to 84 MHz depending on the tasks being
©
