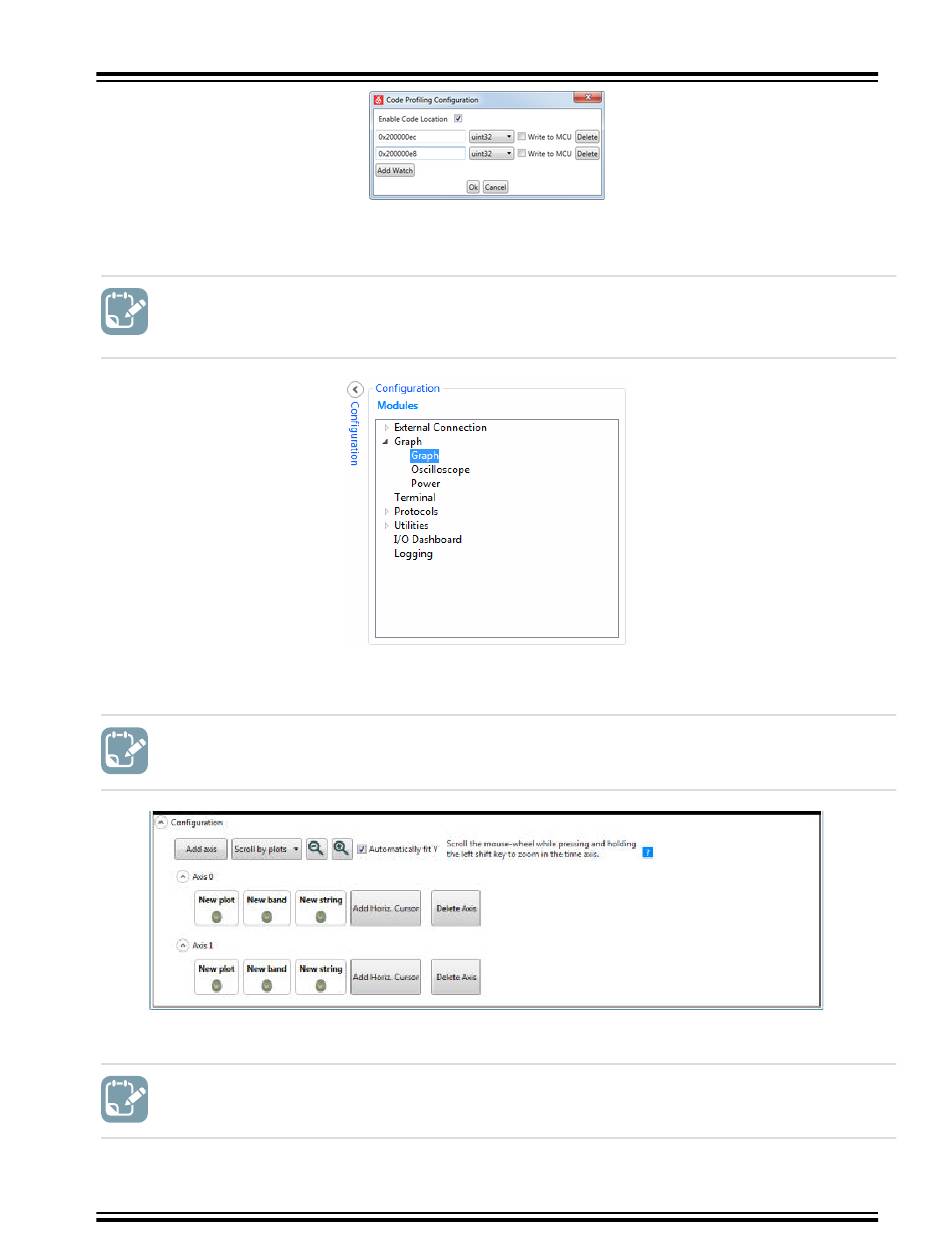

3.2.12.3 Display Variables in Graph
We now have two variables to monitor, and need to display them on a graph.
To do:
•
•
A new Graph element will open with one y axis configured. However, there are two unrelated variables to monitor,
therefore, two axes are needed.
To do:
•
There are now sources (variables) and sinks (axes), to be connected together.
To do: Drag each of the source plugs on the Code Profiling interface into the New plot (sink) jack of
each axis.
©
2020 Microchip Technology Inc.
Open the Configuration panel in Data Visualizer
Add a graph by double-clicking the Graph module
Click the Add axis button to add an additional axis
