port_pin_set_output_level (EXT1_PIN_GPIO_0, true);
}
void ui_stop_read(void)
{
// GPIO0 low
port_pin_set_output_level (EXT1_PIN_GPIO_0, false);
}
void ui_start_write(void)
{
// GPIO1 high
port_pin_set_output_level (EXT1_PIN_GPIO_1, true);
}
void ui_stop_write(void)
{
// GPIO1 low
port_pin_set_output_level (EXT1_PIN_GPIO_1, false);
}
Find the board_init.c file and add initialization of GPIO0 and 1. This can be added by copying the LED_0_PIN
initialization in system_board_init (void)
// GPIO0 to output
port_pin_set_config(EXT1_PIN_GPIO_0, &pin_conf);
// GPIO1 to output
port_pin_set_config(EXT1_PIN_GPIO_1, &pin_conf);
You can also comment out the LED toggle, as it is not relevant here.
void ui_process(uint16_t
{
/*if (0 == framenumber) {
LED_On(LED_0_PIN);
}
if (1000 == framenumber) {
LED_Off(LED_0_PIN);
}*/
}
To do:
• Build the project/solution (F7)
• Program the application into the target device using Start Without Debugging (Ctrl + Alt + F5)
• Switch to Data Visualizer to see the results

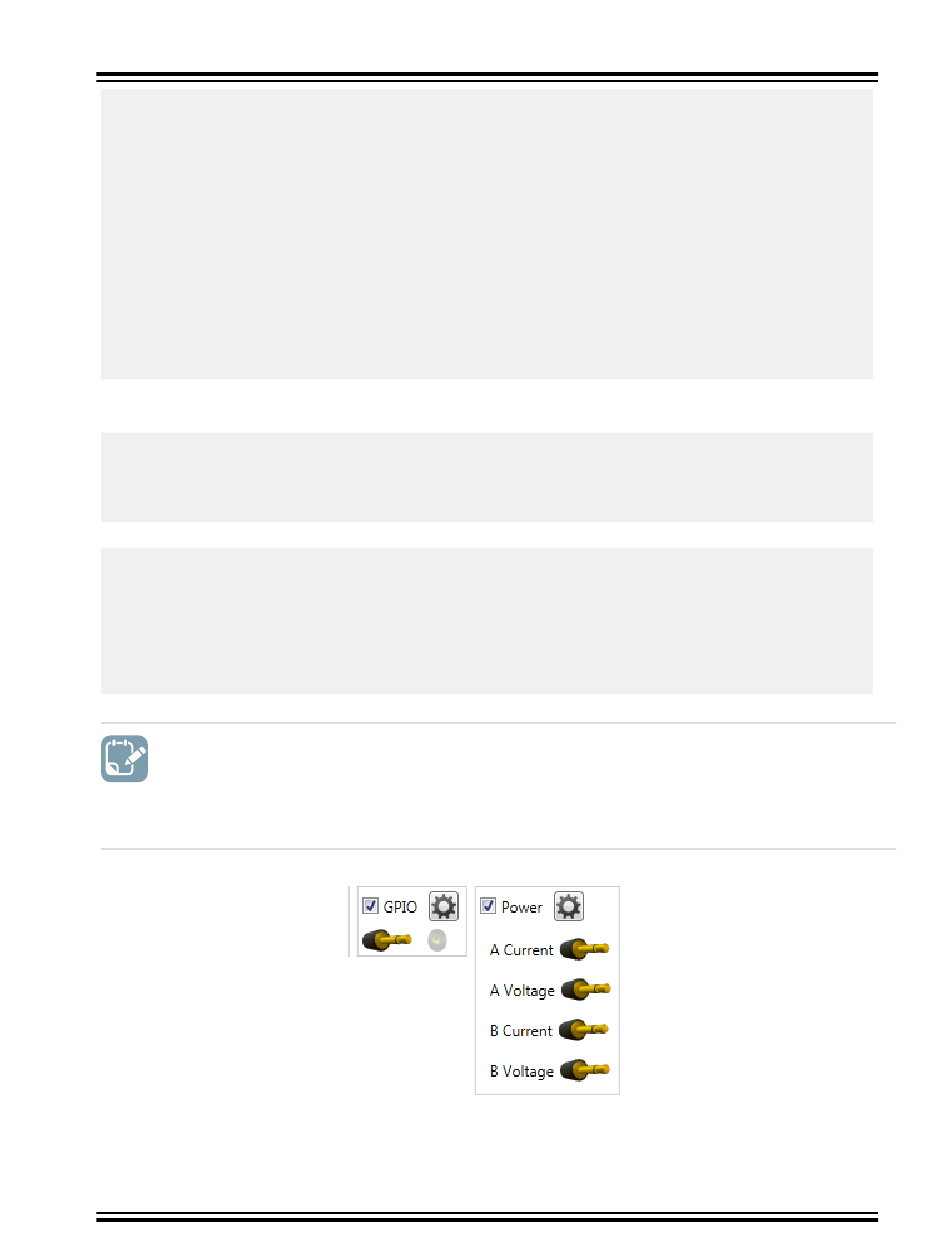

• Select both the Power interface and GPIO and start visualizing
©
