What can we see from this plot?
Even lower power consumption with the LED OFF
Result:  Using the Watchdog Timer as the wake-up source allows us to use the lowest power Sleep mode
in this example.
Now let's take a brief and closer look at the details of our plots. Enabling cursors allows us to take more accurate
measurements from the plot.
To do: 
Open the Control Panel in the upper right corner of the Power Analysis module
Expand the Cursors section
Click the Enabled box to turn the cursors on

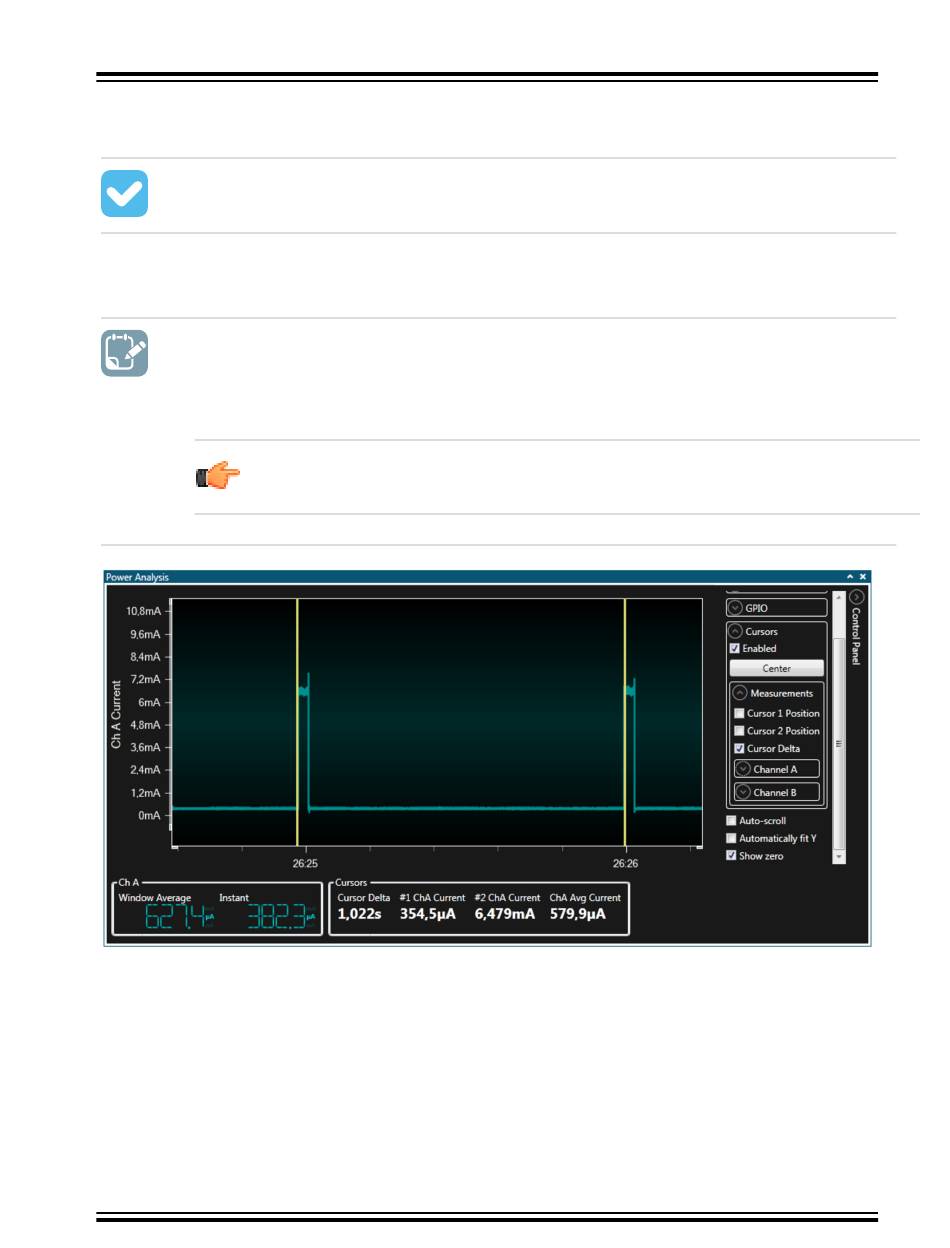

In the plot above we use two cursors to first check the delta - confirming that the Watchdog Timer interrupts
approximately every second, as expected.
Zooming further in we can see that the width of the 'on' pulse (shown as Cursor Delta) is a little over 33 ms. This
equates to a duty-cycle of 3.3% - a touch higher than intended (1%). The main clock is 16 MHz at 5V, and we are
using DIV64 CLKPR, and DIV32 on TIMER2, giving it a 128 μs tick. With overflow every 256 cycles the LED on
period is thus 32.7 ms, close to our measurement. So to achieve a 1% duty-cycle TIMER2 preload value can be
increased from 0x00 to 0xB2.
©
2020 Microchip Technology Inc.
Remember:  If the current measurements are still running, make sure to disable Auto-scroll
before enabling the cursors, or else the graph view will rapidly scroll away from the cursors.
User Guide
Power Debugger
Detailed Use Cases
DS40002201A-page 24
