aWire Physical Interface
The aWire interface makes use of the RESET wire of the AVR device to allow programming and debugging functions.
A special enable sequence is transmitted by the Power Debugger, which disables the default RESET functionality of
the pin.
When designing an application PCB, which includes a Microchip AVR with the aWire interface, it is recommended to
use the pinout as shown in
the cabling and adapters included with the particular kit.

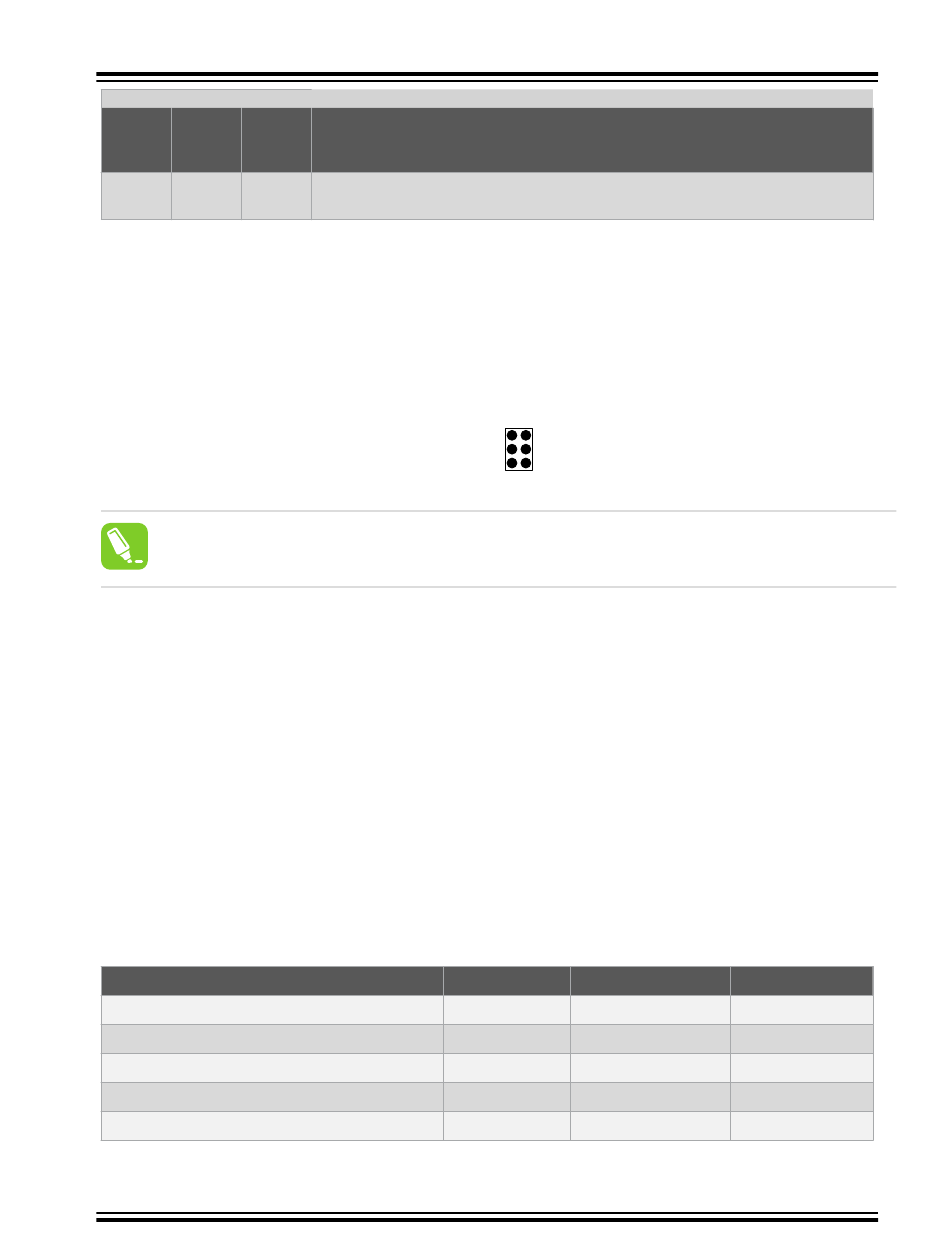

Figure 4-8. aWire Header Pinout
Tip:
Since aWire is a half-duplex interface, a pull-up resistor on the RESET line in the order of 47kΩ is
recommended to avoid false Start bit detection when changing direction.
The aWire interface can be used as both a programming and debugging interface. All features of the OCD system
available through the 10-pin JTAG interface can also be accessed using aWire.
4.3.5
Connecting to an aWire Target
The aWire interface requires only one data line in addition to V
line, although the debugger uses the JTAG TDO line as the data line.
The recommended pinout for the 6-pin aWire connector is shown in
Connection to a 6-pin 100-mil aWire Header
Use the 6-pin 100-mil tap on the flat cable (included in some kits) to connect to a standard 100-mil aWire header.
Connection to a 6-pin 50-mil aWire Header
Use the adapter board (included in some kits) to connect to a standard 50-mil aWire header.
Connection to a custom 100-mil Header
The 10-pin mini-squid cable should be used to connect between the Power Debugger AVR connector port and the
target board. Three connections are required, as described in the table below.
Table 4-8. Power Debugger aWire Pin Mapping
Power Debugger AVR PORT Pins
Pin 1 (TCK)
Pin 2 (GND)
Pin 3 (TDO)
Pin 4 (VTG)
Pin 5 (TMS)
©
2020 Microchip Technology Inc.
SAM
PORT
Pin
3, 5, 9
Ground. All must be connected to ensure that the Power Debugger and the target
device share the same ground reference.
Figure
4-8. Both 100-mil and 50-mil variants of this pinout are supported, depending on
(RESET_N) DATA
Description
1 2
VCC
(NC)
(NC)
(NC)
GND
aWire
and GND. On the target this line is the nRESET
CC
Figure
4-8.
Target Pins
Mini-Squid Pin
1
GND
2
DATA
3
VTG
4
5
User Guide
Power Debugger
On-chip Debugging
aWire Pinout
6
1
2
DS40002201A-page 62
