Introduction
Microchip's SAM R34 Xplained Pro Evaluation Kit is a hardware platform used to evaluate the
ATSAMR34 Low Power LoRa
Supported by the Atmel Studio integrated development platform, the kit provides easy access to the
features of the SAM R34 SiP and explains how to integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger, and no external
tools are necessary to program or debug the SAM R34 devices.
The Xplained Pro extension kits offer additional peripherals to extend the features of the board and ease
the development of custom designs.

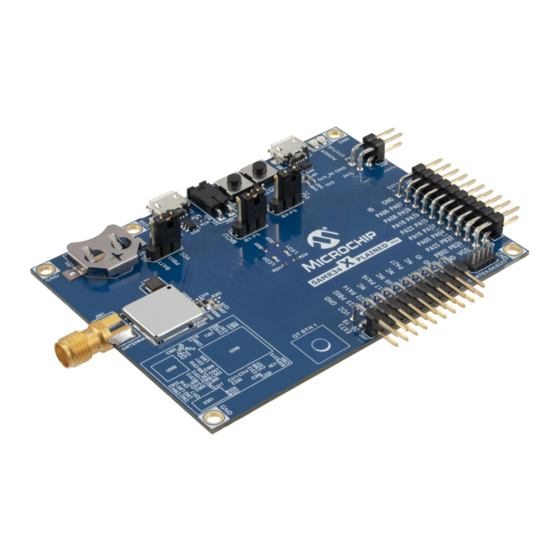

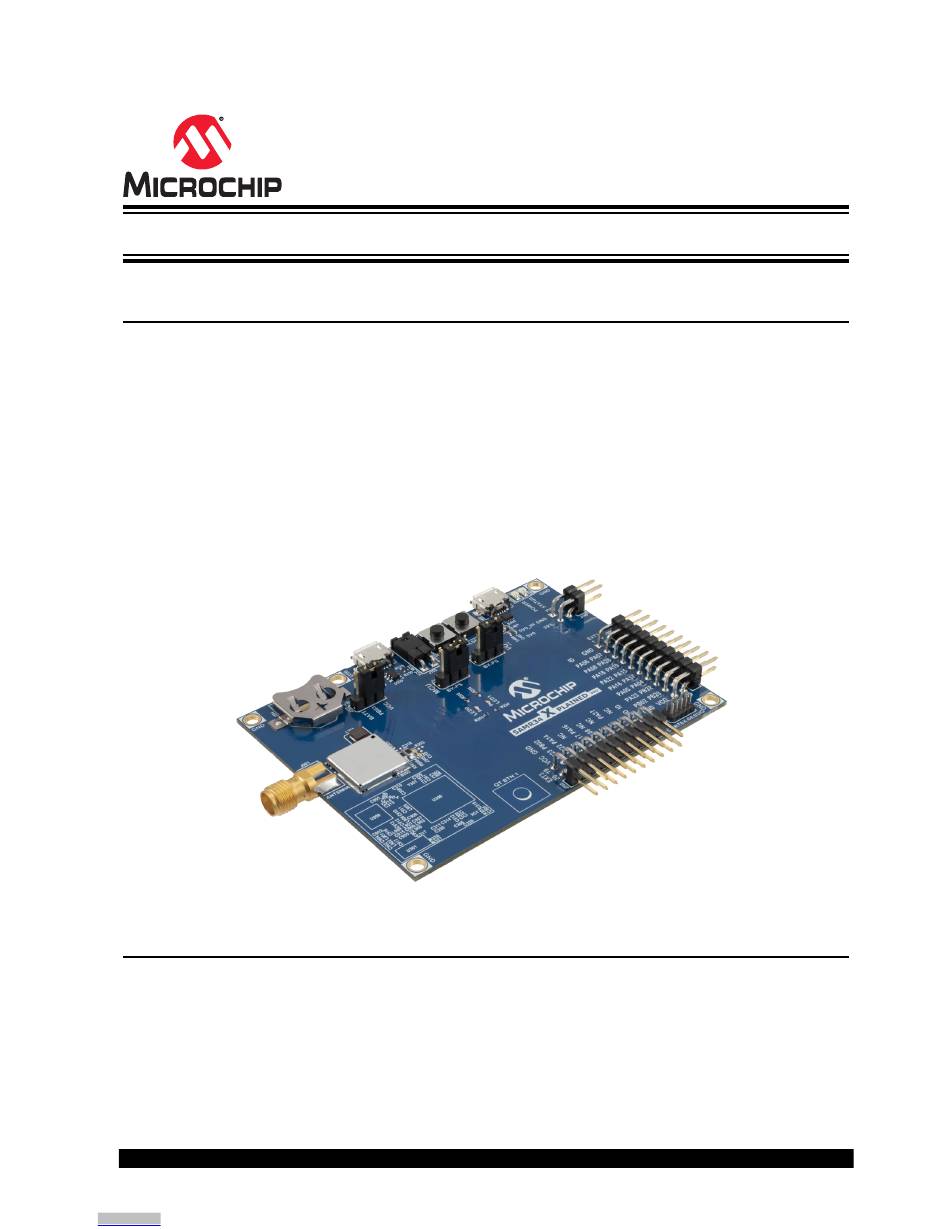

Figure 1. SAM R34 Xplained Pro Evaluation Board (DM320111)
Features
• SAM R34 SiP with Cortex
• Supports 868 MHz and 915 MHz Operation
• On-Board EDBG Debugger and Support for Atmel Studio 7 ICE
• Two Extension Headers for Signal Breakout and Expansion Boards
• On-Board Power Management System with Current Monitoring and USB Power Conditioning
• XPRO Current Measurement System Data Visualizer Support
©
2019 Microchip Technology Inc.
Arrow.com.
Downloaded from
SAM R34 Xplained Pro
Evaluation Kit (DM320111)
SAM R34 Xplained Pro User Guide
®
Sub-GHz SiP.
®
M0+ CPU and LoRa Transceiver
User Guide
DS50002803C-page 1
Advertisement
Table of Contents
Related Manuals for Microchip Technology SAM R34 Xplained Pro
Summary of Contents for Microchip Technology SAM R34 Xplained Pro
-
Page 1: Introduction
SAM R34 Xplained Pro Evaluation Kit (DM320111) SAM R34 Xplained Pro User Guide Introduction Microchip's SAM R34 Xplained Pro Evaluation Kit is a hardware platform used to evaluate the ® ATSAMR34 Low Power LoRa Sub-GHz SiP. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the SAM R34 SiP and explains how to integrate the device in a custom design. - Page 2 SAM R34 Xplained Pro Evaluation Kit... • USB Power Inlet with ESD Protection and Buck Converter • On-Board TCXO • Up to +20 dBm Maximum Output Power • +13 dBm High-Efficiency Operation • +17 dBm High-Power Operation • SMA RF Antenna Port with External Whip Antenna Included •...
-
Page 3: Table Of Contents
SAM R34 Xplained Pro Evaluation Kit... Table of Contents Introduction........................1 Features.......................... 1 1. Kit Overview......................5 2. Xplained Pro Getting Started..................6 2.1. Xplained Pro Quick Start......................6 2.2. Design Documentation and Relevant Links................. 6 2.3. Chip-Down Design Package ....................... 7 3. - Page 4 SAM R34 Xplained Pro Evaluation Kit... Customer Support......................34 Microchip Devices Code Protection Feature..............34 Legal Notice........................35 Trademarks........................35 Quality Management System Certified by DNV.............36 Worldwide Sales and Service..................37 User Guide DS50002803C-page 4 © 2019 Microchip Technology Inc. Arrow.com. Arrow.com.
-
Page 5: Kit Overview
SAM R34 Xplained Pro Evaluation Kit... Kit Overview Kit Overview The SAM R34 Xplained Pro Evaluation Kit is a hardware platform used to evaluate the ATSAMR34 Low ® Power LoRa Sub-GHz SiP module. ® The kit offers a set of features that enable the user to get started with the ATSAMR34 Low Power LoRa Sub-GHz SiP peripherals right away, and to understand how to integrate the device in their own design. -
Page 6: Xplained Pro Getting Started
The following list contains links to the most relevant documents and software for the SAM R34 Xplained Pro Evaluation Kit. • Ordering Code – The SAM R34 Xplained Pro Evaluation Kit can be ordered from www.microchipdirect.com using Ordering Code “DM320111”. -
Page 7: Chip-Down Design Package
SAM R34 Xplained Pro Evaluation Kit... Xplained Pro Getting Started Chip-Down Design Package Chip-Down Design Package is a guide for customers wanting to do their own chip-level RF PCB designs. In addition, it contains software tools for manufacturing and regulatory testing. The package includes the following: •... -
Page 8: Xplained Pro
DGI. The EDBG controls two LEDs on the SAM R34 Xplained Pro; a power LED and a status LED. The following table provides details on how the LEDs are controlled in different operation modes. -
Page 9: Xplained Pro Analog Module
SAM R34 Xplained Pro Evaluation Kit... Xplained Pro ...continued Mode Power LED Status LED Bootloader mode (idle) The power LED and the status LED blink simultaneously. Bootloader mode (firmware The power LED and the status LED blink in an alternating pattern. - Page 10 SAM R34 Xplained Pro Evaluation Kit... Xplained Pro – Control/communication interface to the EDBG The current measurement front-end is a high side shunt measurement with a pre-amplifier and a second active filter stage with gain as shown in Figure 3-1. The wide dynamic range is achieved by four measurement ranges, which are defined by two shunt resistors and the two parallel second stage active filters with gain.
-
Page 11: Hardware Identification System
3600 Maximum current [mA] uint16_t Power Sources The SAM R34 Xplained Pro Evaluation Kit can be powered by several power sources, as listed in the table below. Table 3-4. Power Sources for SAM R34 Xplained Pro Power input Voltage requirements... -
Page 12: Xplained Pro Headers And Connectors
SAM R34 Xplained Pro Evaluation Kit... Xplained Pro External power Embedded Debugger USB Target USB Note: If powering the board from the Target USB connector then jumpers J101 and J102 MUST be in the bypass position. Info: External power is required when 500 mA from a USB connector is not enough to power the board with possible extension boards. - Page 13 3.6.2 Xplained Pro Power Header The power header can be used to connect external power to the SAM R34 Xplained Pro kit. The kit automatically detects and switches to an external power source, if supplied. The power header can also be used to supply power to external peripherals or extension boards.
- Page 14 SAM R34 Xplained Pro Evaluation Kit... Xplained Pro Table 3-7. SAMR34-XPRO to BTLC1000-XPRO Connection Mapping FTDI SAMR34 XPRO BTLC1000 XPRO TTL-232R-3V3 PLUG SIGNAL J100 SIGNAL RECEPTICAL J200.3 PA06 (S0 UART RTS) J100.16 16 (UART CTS) BLE UART RTS/CTS J200.4 PA07 (S0 UART CTS) J100.18 18 (UART RTS)
-
Page 15: Hardware User Guide
Additionally, this package includes the MCHPRT test firmware, Python scripts and Radio Utility Commands Reference documentation for evaluation and test. Power Distribution The SAM R34 Xplained Pro Evaluation Kit can be powered by: • EDBG USB • TARGET USB • External (5V) The kit has a power mux which automatically chooses the power source if two or all three of the power sources are available to the kit at the same time. -
Page 16: Connectors
4.3.1 Xplained Pro Extension Headers The SAM R34 Xplained Pro Evaluation Kit headers EXT1 and EXT3 offer access to the I/O of the microcontroller in order to expand the board e.g., by connecting extensions to the board. These headers are based on the standard extension header specified in 3.6.1 Xplained Pro Standard Extension... - Page 17 SAM R34 Xplained Pro Evaluation Kit... Hardware User Guide Table 4-2. Extension Header EXT3 EXT3 SAM R34 Shared Functionality Signal Port ADC(+) ADC(-) GPIO1 PA27 GPIO2 PWM(+) PWM(-) SPI_SS PA08 EXT1 TWI_SDA PA16 EXT1 TWI_SCL PA17 EXT1 UART_RX UART_TX SPI_SS PA14...
- Page 18 A right-angled 1x2, 100 mil pin header marked with the MCU current measurement is located at the upper edge of the SAM R34 Xplained Pro. All power to the SAM R34 is exclusively routed through this header (excluding power to extension headers and peripherals). To measure the power consumption of the device, remove the jumper and replace it with an ammeter.
-
Page 19: Peripherals
EXT1 4.4.3 LEDs There is one yellow LED available on the SAM R34 Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4-8. LED Connections SAM R34 Pin... -
Page 20: Embedded Debugger Implementation
4.4.4 UART Connection The SAM R34 Xplained Pro Evaluation Kit exposes the UART on EXT1. This is useful for command line interfaces, debugging and application layer code. Info: The TXD/RXD UART signals exposed on EXT1 are connected to SERCOM 5 which is in low-power domain PD0. - Page 21 SAM R34 Xplained Pro Evaluation Kit... Hardware User Guide Embedded Debugger for on-board current measurement. Atmel Studio can be used as a front-end for the Embedded Debugger. 4.5.1 Serial Wire Debug The Serial Wire Debug (SWD) uses two pins to communicate with the target. For further information on how to use the programming and debugging capabilities of the EDBG, see 3.2 Embedded...
- Page 22 SAM R34 Xplained Pro Evaluation Kit XAM Configuration On the SAM R34 Xplained Pro Evaluation Kit the MCU and the MCU peripherals (e.g., extensions) are powered by their own regulator, as shown in the following figure. All other parts of the board, mainly the Embedded Debugger and accompanying Xplained Pro Analog Module (XAM), are powered from a separate regulator.
- Page 23 Hardware User Guide Figure 4-2. SAM R34 XAM Implementation Block Diagram On the SAM R34 Xplained Pro Evaluation Kit, the XAM can be used in four configurations: No current measurement or external MCU current measurement: The XAM is bypassed and thus the MCU and peripherals are supplied directly by the regulator. Set both jumpers in the "BYPASS"...
-
Page 24: Kit Modifications
Operating at Other Voltages The SAM R34 Xplained Pro board operates at 3.3V by default, but it is also possible to run the board at lower voltages from an external supply. The EDBG is designed to run from a 3.3V supply and won't work on other voltages;... -
Page 25: Limitations
Table 4-16). • Power ON the SAM R34 Xplained Pro via pin 4 (3V3) and pin 2 (GND) of the Power Header J100. • Program SAM R34 using industry standard 2x5 50-mil Cortex Debug Connector and external programmer such as Atmel ICE. - Page 26 SAMR34 Data Sheet specifications. The additional consumption needs to be factored into laboratory measurements with the SAM R34 XPRO. See the following table for details. Table 4-17. SAM R34 Xplained Pro Evaluation Kit Additional Power Consumers Typical Active REF_DES Description...
-
Page 27: Agency Certification
SAM R34 Xplained Pro Evaluation Kit... Agency Certification Agency Certification This equipment (SAM R34 Xplained Pro Evaluation Kit / A09-3167) is intended for evaluation purposes only. The following regulatory notices are to cover the requirements under the regulatory approval. Antenna Considerations The following table provides the list of approved antennas along with the manufacturer and part number details. -
Page 28: Canada
SAM R34 Xplained Pro Evaluation Kit... Agency Certification interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee interference will not occur in a particular installation. - Page 29 SAM R34 Xplained Pro Evaluation Kit... Agency Certification 5.4.1 Labeling and User Information Requirements Label Requirements (from RSP-100 Issue 11, Section 3): The host device shall be properly labeled to identify the module within the host device. The Innovation, Science and Economic Development Canada certification label of a module shall be...
-
Page 30: Europe
2014/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL" of 16 April 2014. SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Microchip Technology Inc. declares that the radio equipment type [A09-3167] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address (refer product specific pages): http://www.microchip.com/design-centers/wireless-connectivity/... -
Page 31: Hardware Revision History
"nnnnrrssssssssss" n = product identifier r = revision s = serial number The product identifier for the SAM R34 Xplained Pro is A09-3167. Hardware Revision Revision 1 This is an internal release of a small lot for engineering validation testing. - Page 32 SAM R34 Xplained Pro Evaluation Kit... Hardware Revision History Revision 4 This revision is the second public release. Silkscreen errors were corrected. Revision 4 PCB may be identified by the markings shown below. Figure 6-2. Revision 4 Bottom Side Silkscreen User Guide DS50002803C-page 32 ©...
-
Page 33: Document Revision History
SAM R34 Xplained Pro Evaluation Kit... Document Revision History Document Revision History Revision Date Section Description 05/2019 Introduction Updated Figure 1. Kit Overview Updated image. Hardware Revision Added Revision 4 History description and image. 03/2019 Limitations Added a new section. -
Page 34: The Microchip Web Site
SAM R34 Xplained Pro Evaluation Kit... The Microchip Web Site Microchip provides online support via our web site at http://www.microchip.com/. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information: •... -
Page 35: Legal Notice
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 36: Quality Management System Certified By Dnv
SAM R34 Xplained Pro Evaluation Kit... © 2019, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved. ISBN: 978-1-5224-4456-5 Quality Management System Certified by DNV ISO/TS 16949 Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California ®... -
Page 37: Worldwide Sales And Service
San Jose, CA UK - Wokingham Tel: 408-735-9110 Tel: 44-118-921-5800 Tel: 408-436-4270 Fax: 44-118-921-5820 Canada - Toronto Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS50002803C-page 37 © 2019 Microchip Technology Inc. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
