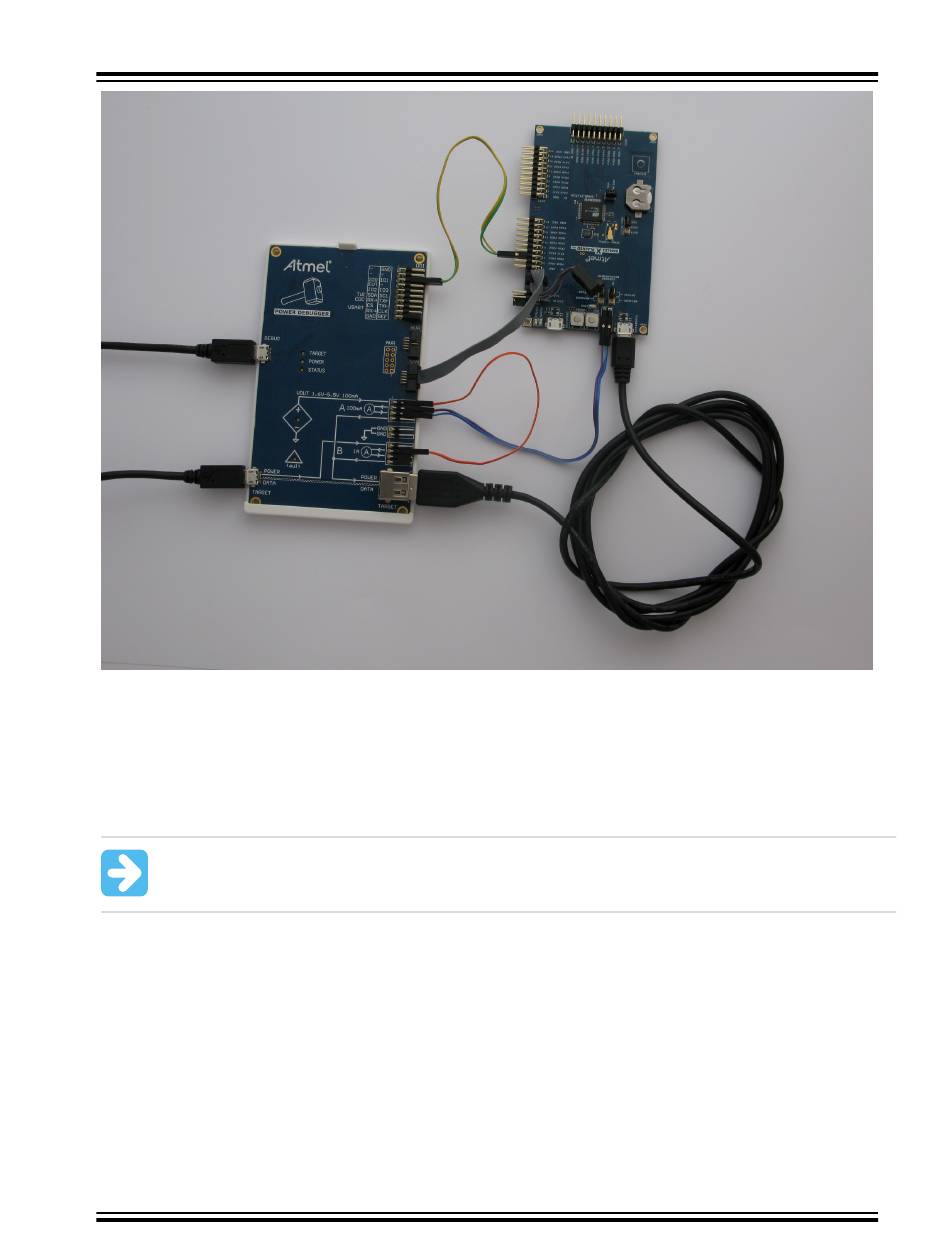

Note: The picture is slightly wrong. The debug cable is connected to the SAM debug connector but should have
been connected to the AVR debug connector.
3.2.4 VOUT Target Supply
The Power Debugger can supply voltage to a target in the range of 1.6V to 5.5V, up to 100 mA. The voltage will be
applied to the pin as shown in the silkscreen, and must be routed to the appropriate load by the user. VOUT can be
set in a number of ways.
Important: VOUT setting is stored in volatile memory on the Power Debugger. Toggling power on the tool
will result in VOUT being disconnected. This is done to protect the user's hardware.
3.2.4.1 Setting VOUT Using the Programming Dialog
VOUT can be set and read back using the programming dialog in Atmel Studio. This is done using the Tool settings
tab, which is available when using the Power Debugger. Use the slider to set the desired voltage and click Write to
apply changes. The measured value is automatically read back.
©
