3.2.13.3 Run

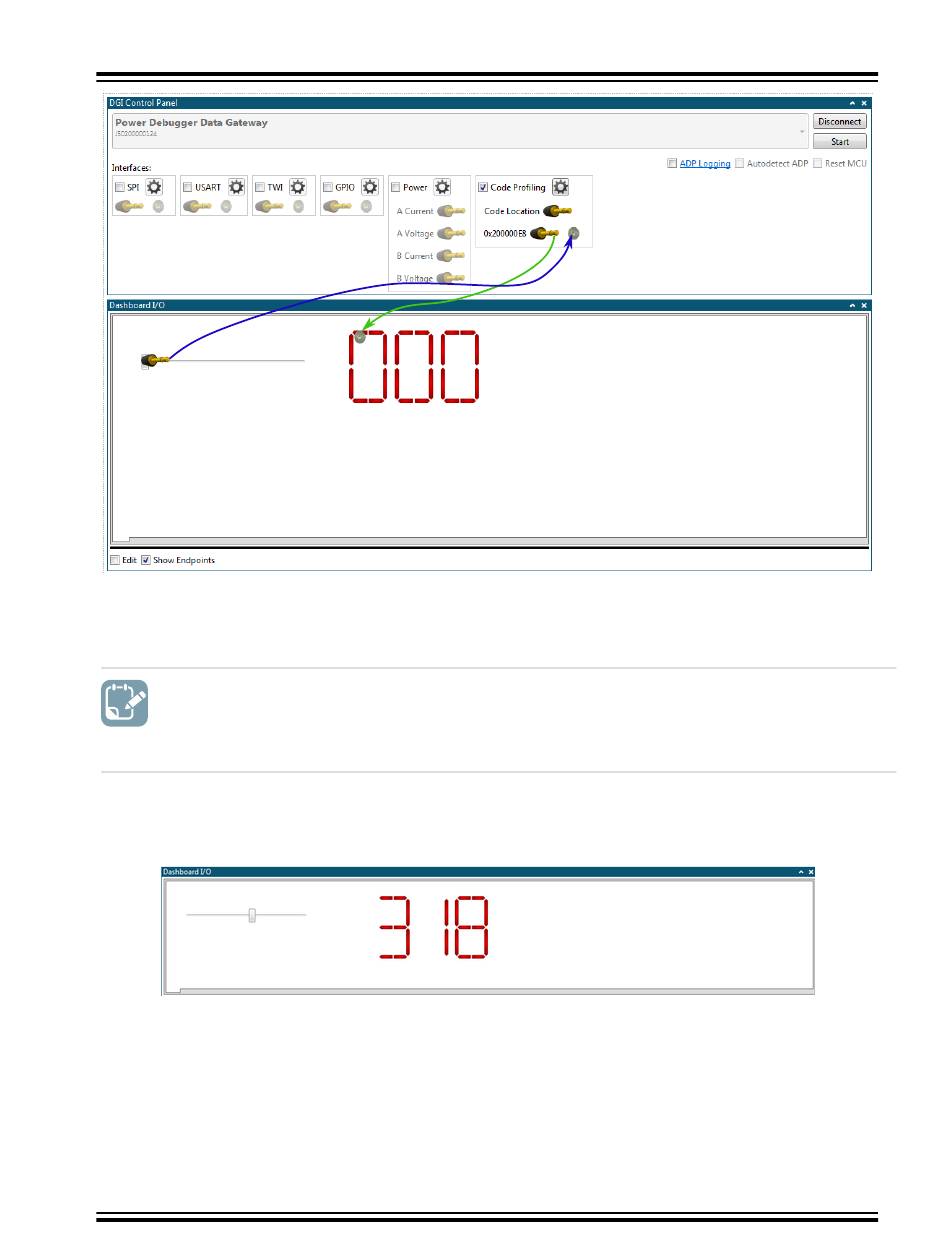

Now that the connections have been made in Data Visualizer, the system can be put into a running state and
interaction with the variable can be made through the GUI.
To do:
•
•
•
The slider is now in control of the frame_comparator variable in the application code. Drag the slider, and notice that
the LED blink frequency changes. Any change in the slider position will be sent to the target device through the
debug interface, and a new value stored in the variable. At the same time, the value is also read back from the target
and displayed on the segment display.
©
2020 Microchip Technology Inc.
Deselect the Show Endpoints checkbox
Start Data Visualizer
Resume execution in Atmel Studio (F5)
User Guide
Power Debugger
Detailed Use Cases
