USART/SPI
POWER DEBUGGER
host
USB

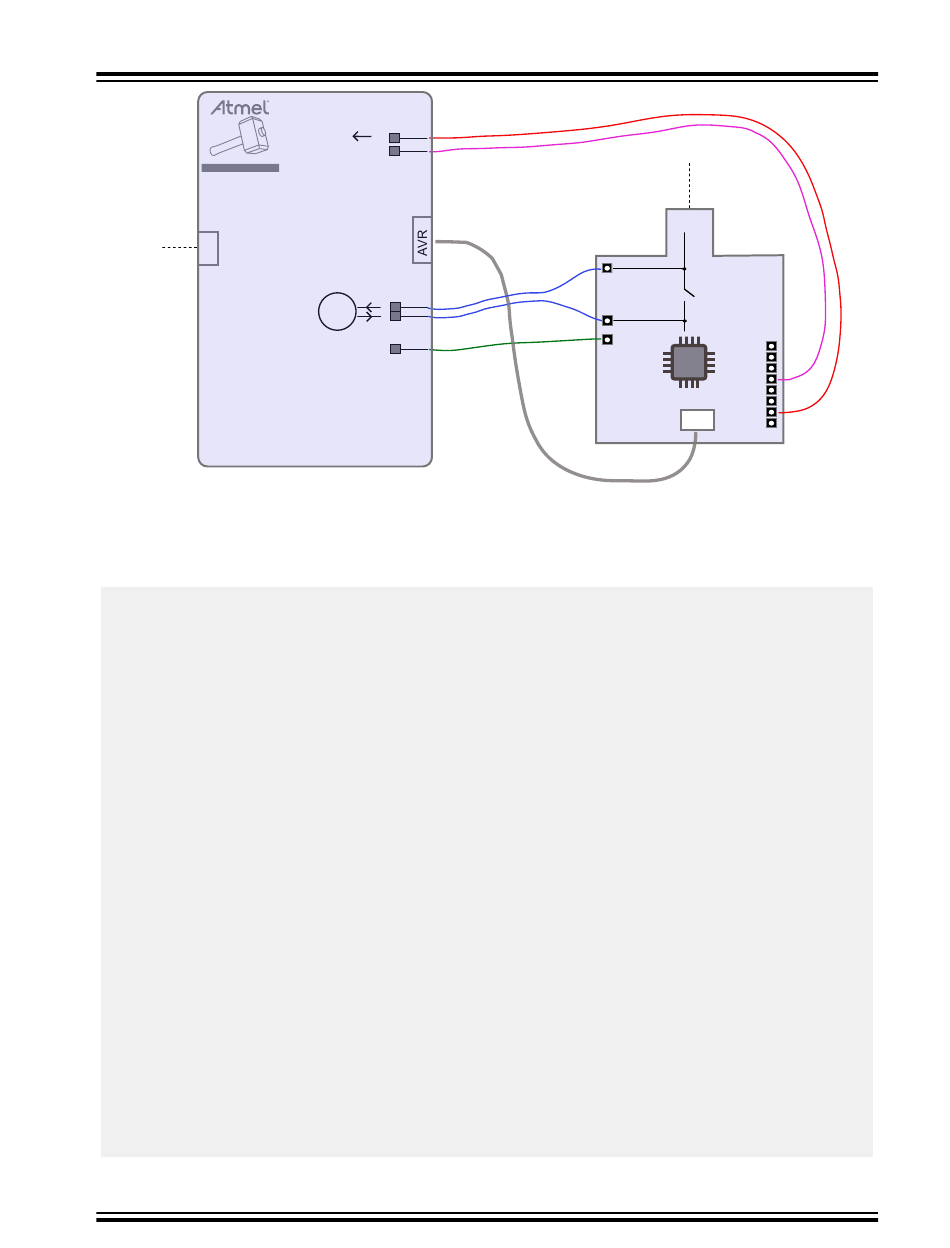

The example code makes use of the pin-change interrupt connected to the button on the Xplained Mini to toggle a
LED and update a ticker. On each button-press the LED toggles and the ticker count is sent using the DGI USART
along with a LED status message.
The code below is included in project low_power_105.
#include <avr/io.h>
#include <avr/interrupt.h>
#include <avr/sleep.h>
volatile uint8_t led_on;
volatile uint8_t send_message;
volatile uint8_t ticker = 0;
const char* message_on =
const char* message_off =
ISR (PCINT0_vect)
{
// Each botton press generates two pin-change interrupt (press, release)
// Ignore half of these
if (PINB & (1 << 7))
return;
// Update LED
if (led_on)
PORTB &= ~(1 << 5);
else
PORTB |= (1 << 5);
// Invert led_on
led_on = ~led_on;
// Flag a message send
send_message = 1;
// Increment ticker
ticker++;
// Reset ticker
if (ticker >= 10)
ticker = 0;
}
void usart_send (const char
{
// Send a character to the USART
UDR0 = data;
// Wait for the character to be sent
while (!(UCSR0A & (1 << TXC0)))
©
