3.2.5
Using Both Measurement Channels
The two current measurement channels of the Power Debugger are useful when analyzing current consumption of
two different domains. For example, both board-level current draw and MCU-only current draw can be plotted.
To best demonstrate a USB hardware device, we will make use of a Mass Storage Device example from ASF.
To do:
•
•
•
•
To do:
•
•
To do: Program the application into the target device using Start Without Debugging (Ctrl+Alt+F5).
©
2020 Microchip Technology Inc.

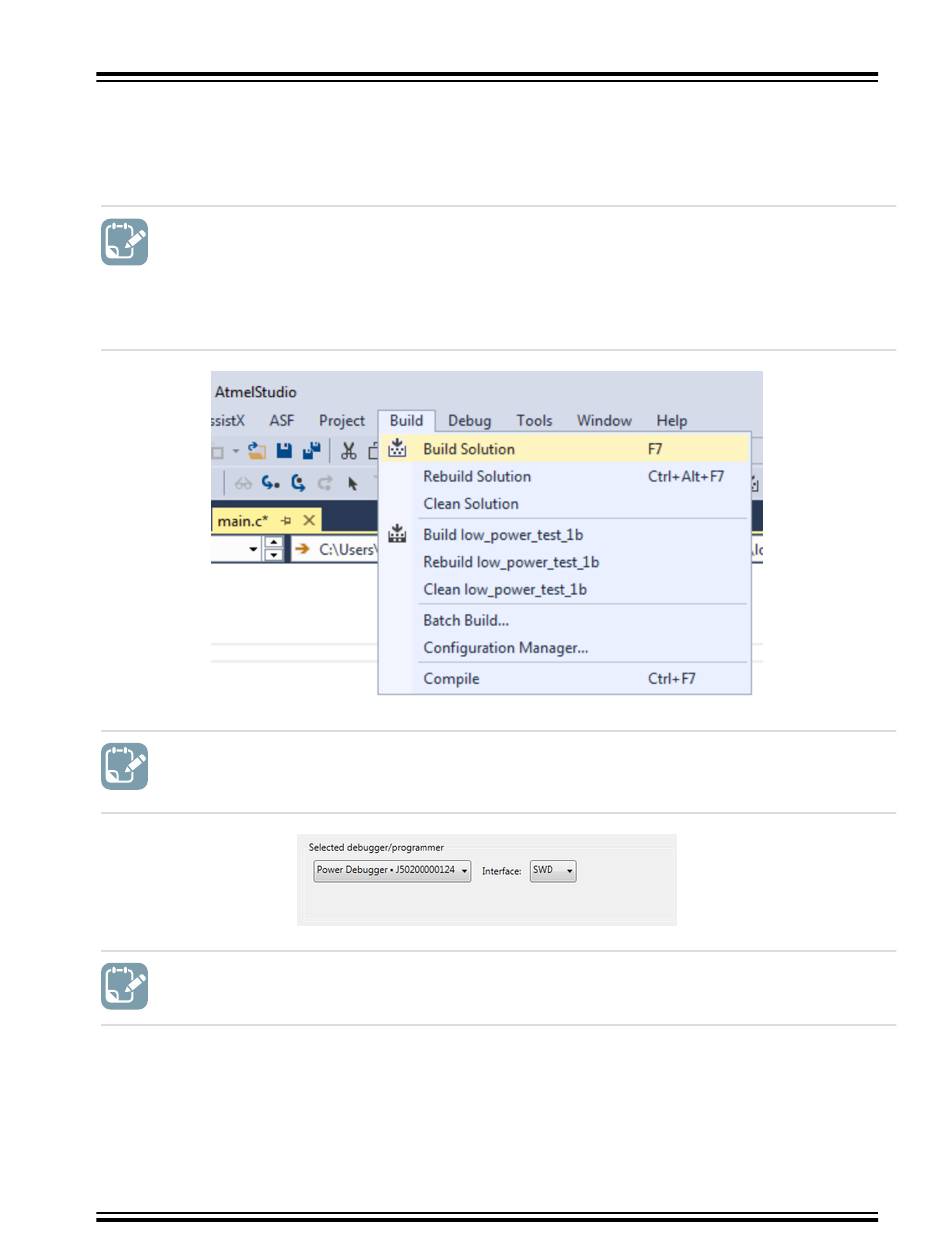

In Atmel Studio, create a New Example Project
In the New Example dialog, select the SAM L21 device family (or other relevant device) and filter by
the keyword "MSC"
Select the USB Device MSC Example
Build the project/solution (F7)
Open the project properties (right click the project in the Solution Explorer and select Properties)
On the Tool tab, select the appropriate tool and interface
User Guide
Power Debugger
Detailed Use Cases
DS40002201A-page 34
