By default, both channels will be shown in the Power Analysis graph but each plot can be moved up or down to
separate them as best suited.
3.2.8
Scaling and Scrolling a Graph
Tip:  Turn off Auto-scroll and Automatically fit Y to more closely examine a plot while it is still running.
Use the scale and offset controls in order to move the plots as needed. The mouse scroll-wheel is useful in this
regard:
Shift-scroll on the plot to zoom on the time (X) axis
Ctrl-scroll on the plot to zoom on the Y axis
Drag the graph to pan on the time (X) axis and move (offset) the Y axis
Drag the scales on the left and right to move respective channels in the Y axis (offset)
Ctrl-scroll on the respective axis scale to zoom that channel
Right-click and drag to select an area to zoom
3.2.9
Mass Storage Example
To do: 

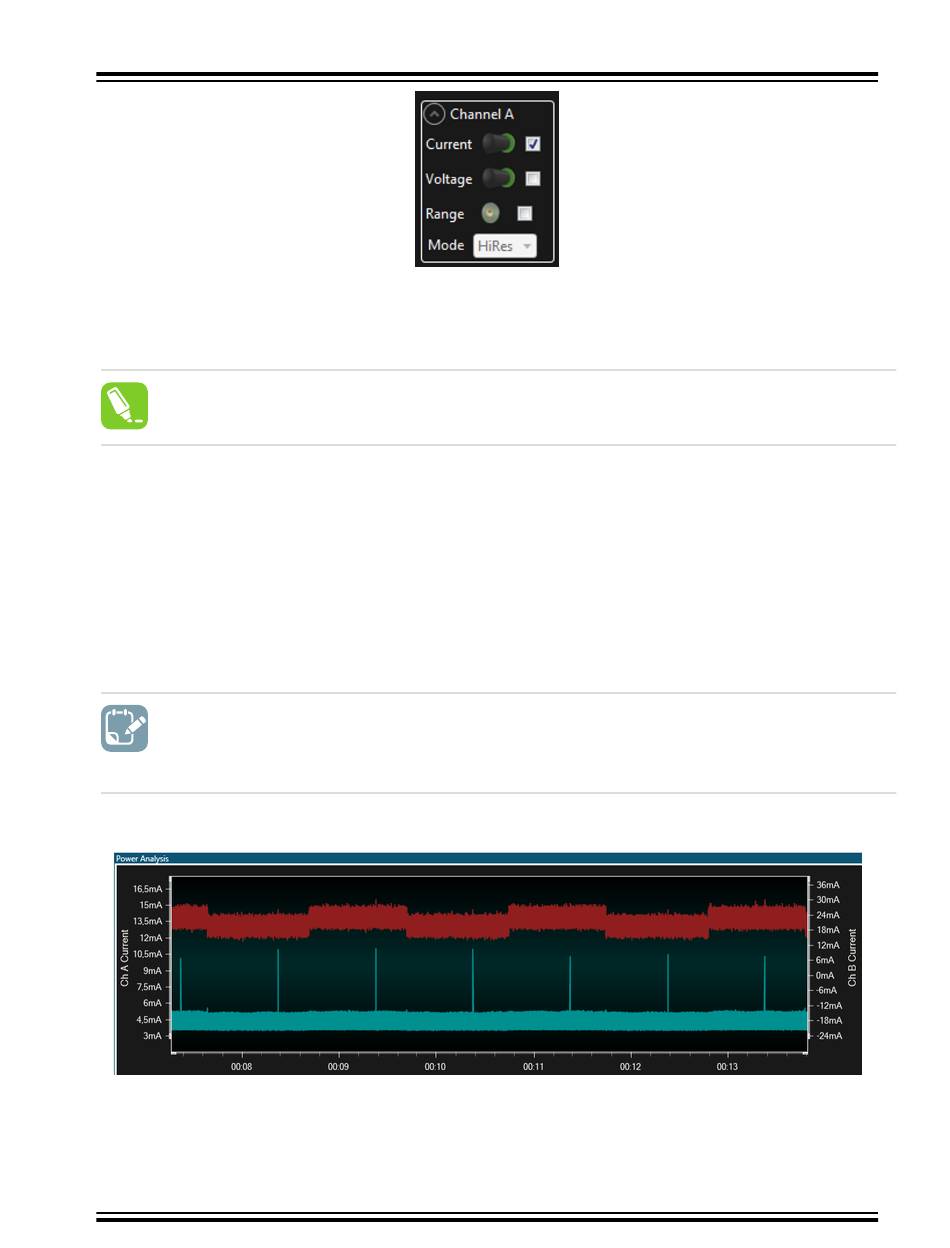

With some scrolling and scaling the plots should look something like this:
The red graph is channel B, and represents the current drawn by the entire board. It appears to toggle between two
modes at about 1-second intervals. This is the LED toggling ON and OFF.
©
2020 Microchip Technology Inc.
Program the Mass Storage Class example into the target device using Start Without Debugging (Ctrl
+Alt+F5)
Stop Data Visualizer after capturing a plot
User Guide
Power Debugger
Detailed Use Cases
DS40002201A-page 36
