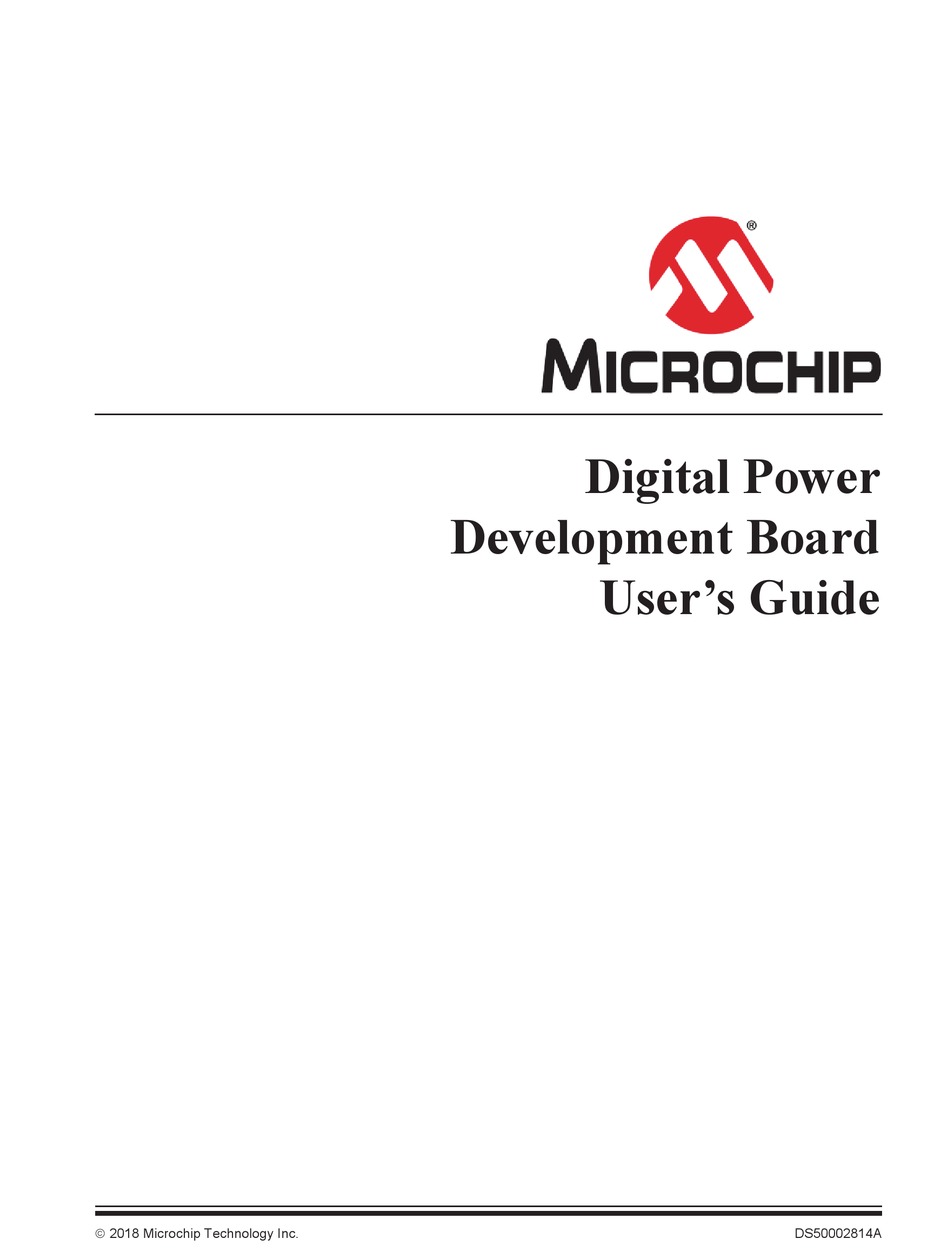

- Page 1 Digital Power Development Board User’s Guide 2018 Microchip Technology Inc. DS50002814A...
- Page 2 WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and the U.S.A.
-
Page 3: Table Of Contents
A.1 Pinout ......................13 A.2 Board Schematic ..................14 A.3 PCB Layout ....................15 Appendix B. Bill of Materials (BOM)................19 B.1 Bill of Materials ..................... 19 Worldwide Sales and Service ..................22 2018 Microchip Technology Inc. DS50002814A-page 3... - Page 4 Digital Power Development Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002814A-page 4...
-
Page 5: Preface
Document Revision History DOCUMENT LAYOUT This document describes how to use the Digital Power Development Board User’s Guide as a demonstration tool to provide a measurement platform for the Microchip dsPIC33 devices’ Digital Power Plug-In Modules. The document is organized as follows: •... - Page 6 Digital Power Development Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler...
- Page 7 Preface RECOMMENDED READING This user’s guide describes how to use the Digital Power Development Board. Other useful document(s) are listed below. The following Microchip document(s) are recommended as supplemental reference resources. • dsPIC33 Family Digital Power PIM User’s Guides are available for download from the Microchip website (www.microchip.com)
- Page 8 Digital Power Development Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002814A-page 8...
-
Page 9: Chapter 1. Overview
Power Plug-In Modules (DP PIMs). DP PIMs can be inserted into the mating socket J1 in the middle of the Digital Power Development Board. All pins of the DP PIM are accessible via test loops or pin headers. The on-board micro USB connector provides a DC power input to all circuitry. -
Page 10: Socket For Dp Pim Boards
1.2.2 Test Points The Digital Power Development Board ensures good signal integrity and provides access to all pins of a DP PIM board. Each signal line is named after the DP PIM edge connector pin number, with a “TP” (Test Point) prefix on the schematic diagram, which is similarly marked on the silkscreen. -
Page 11: Grounding System
I C bus. Both +5V and +3.3V supply rails are connected to the corresponding pins of the mikroBUS socket. The Reset button is connected to the mikroBUS socket RESET pin. 2018 Microchip Technology Inc. DS50002814A-page 11... -
Page 12: Icsp™ Programming Port
1.2.12 USB Connector The Digital Power Development Board can be powered via the micro USB connector, J2, at the right side of the board. The DP PIM board supply input and the +5V power rail for the mikroBUS click board are directly connected to the positive supply line of the USB. -
Page 13: Appendix A. Board Layout And Schematics
DIGITAL POWER DEVELOPMENT BOARD USER’S GUIDE Appendix A. Board Layout and Schematics This appendix contains the pinout, schematics and board layouts for the Digital Power Development Board. The topics covered in this appendix include: • Pinout • Board Schematic •... - Page 14 Digital Power Development Board User’s Guide 2018 Microchip Technology Inc. DS50002814A-page 14...
-
Page 15: Pcb Layout
Board Layout and Schematics PCB LAYOUT The Digital Power Development Board is a two-layer FR4, 1.55 mm, Plated-Through-Hole PCB construction. Figure A-2 through Figure A-5 illustrate the PCB layers. Figure A-6 Figure A-7 show the assembly drawings of the Digital Power Development Board. - Page 16 Digital Power Development Board User’s Guide FIGURE A-4: DIGITAL POWER DEVELOPMENT BOARD BOTTOM COPPER (BOTTOM VIEW) FIGURE A-5: DIGITAL POWER DEVELOPMENT BOARD BOTTOM SILKSCREEN (BOTTOM VIEW) 2018 Microchip Technology Inc. DS50002814A-page 16...
- Page 17 Board Layout and Schematics FIGURE A-6: DIGITAL POWER DEVELOPMENT BOARD TOP ASSEMBLY FIGURE A-7: DIGITAL POWER DEVELOPMENT BOARD BOTTOM ASSEMBLY (BOTTOM VIEW) 2018 Microchip Technology Inc. DS50002814A-page 17...
- Page 18 Digital Power Development Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002814A-page 18...
-
Page 19: Appendix B. Bill Of Materials (Bom)
DIGITAL POWER DEVELOPMENT BOARD USER’S GUIDE Appendix B. Bill of Materials (BOM) This appendix contains the Bill of Materials (BOM) for the Digital Power Development Board. • Bill of Materials BILL OF MATERIALS Table B-1 shows the Bill of Materials for the Digital Power Development Board. - Page 20 Digital Power Development Board User’s Guide TABLE B-1: DIGITAL POWER DEV. BOARD BILL OF MATERIALS (BOM) (CONTINUED) Qty. Designator Description Manufacturer Manufacturer Part Number ® Diode, LED, Red, 1.8V, 40 mA, Lite-On , Inc. LTST-C190KRKT 10 mcd, Clear, SMD, 0603 ®...
- Page 21 Bill of Materials (BOM) NOTES: 2018 Microchip Technology Inc. DS50002814A-page 21...
-
Page 22: Worldwide Sales And Service
New York, NY Tel: 46-31-704-60-40 Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 2018 Microchip Technology Inc. DS50002814A-page 22 08/15/18...
