Info: In this part of this example we are going to make use of the Programming mode only. In most
systems running code through a debugger will not yield accurate current measurements. This is because
the target device's debug module (OCD) requires a clock source which cannot be disabled while
debugging.
3.2.6 Launching Data Visualizer
The Data Visualizer is included as part of the Atmel Studio installer, and can be run either as a Studio extension or in
Stand-Alone mode.

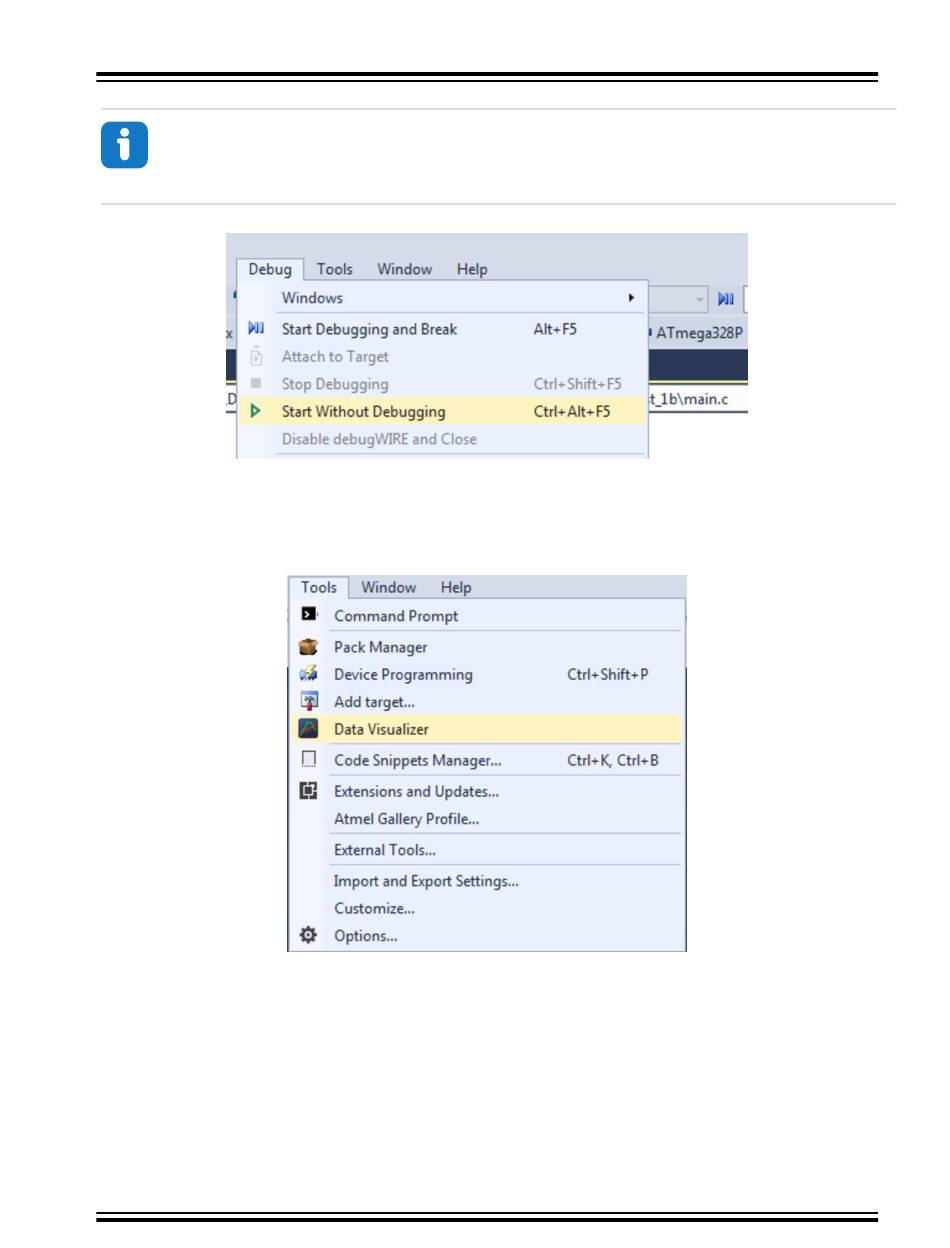

To run the Data Visualizer as an extension inside Atmel Studio, select it in the Tools menu:
Kits supporting Data Visualizer functionality include a shortcut to the extension on their start page in Atmel Studio.
If the stand-alone version of the Data Visualizer has been installed, look for the shortcut in the Windows
The stand-alone version is available for download from gallery.microchip.com.
3.2.7 Two Channel Measurement
When using hardware with two measurement channels, the Data Visualizer will display both in the same graph
(unless disabled in the Power Configuration).
On the Control panel on the right of the module the user can show or hide the current and voltage plots as well as
range information when available.
©
