Control

4.3 FC Control Profile

4.3.1 Control Word according to FC Profile

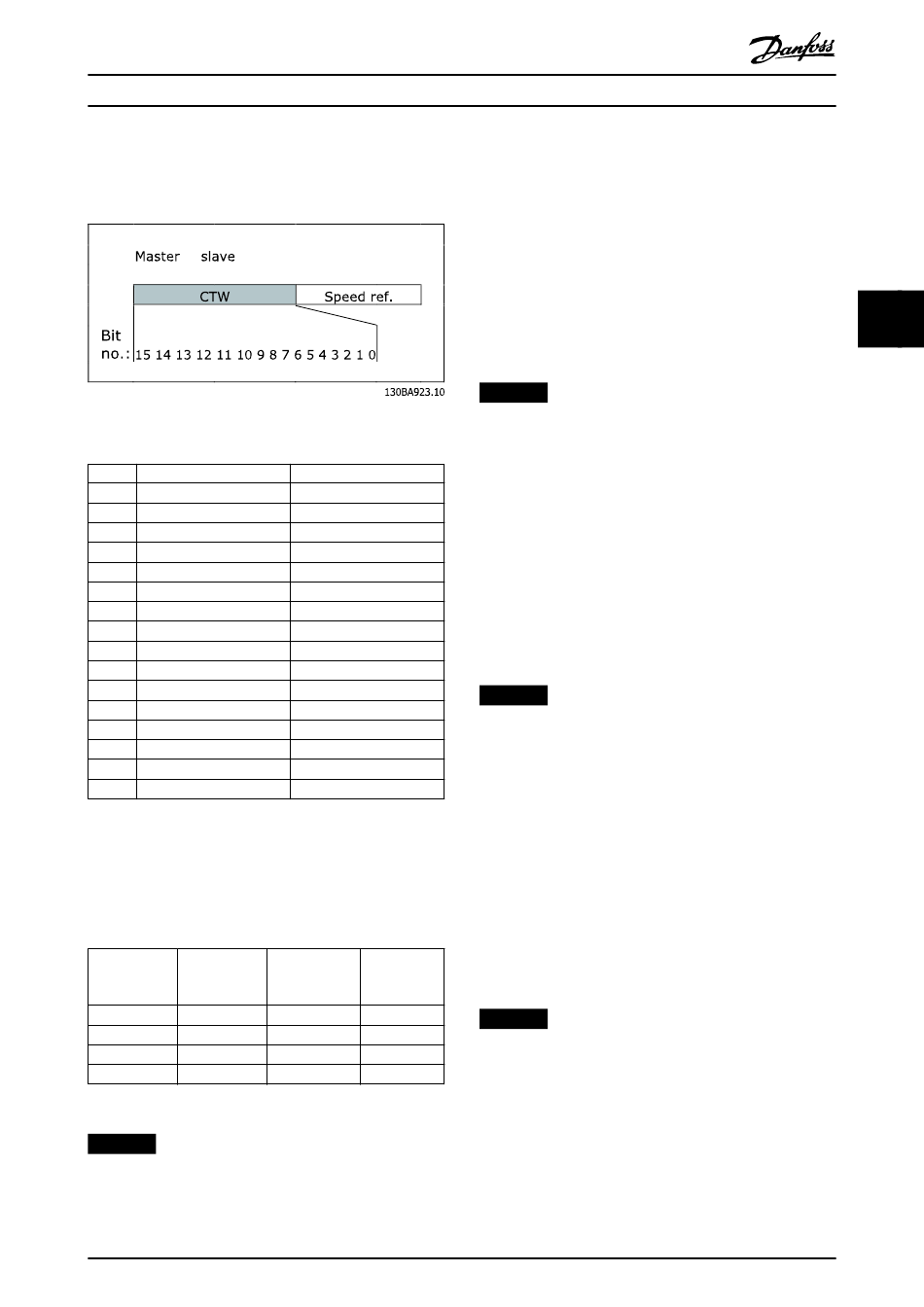

Illustration 4.2 FC Control Profile
Bit Bit value = 0
00 Reference value
01 Reference value
02 DC brake
03 Coasting
04 Quick stop
05 Hold output frequency
06 Ramp stop
07 No function
08 No function
09 Ramp 1
10 Data invalid
11 No function
12 No function
13 Parameter set-up
14 Parameter set-up
15 No function
Table 4.4 Control Word Bits
Explanation of control bits
Bits 00/01
Select between the 4 reference values, which are pre-
programmed in parameter 3-10 Preset Reference according
to Table 4.5.
Programmed Parameter
reference
value
1 3-10 [0]
2 3-10 [1]
3 3-10 [2]
4 3-10 [3]
Table 4.5 Reference Values
NOTICE
Parameter 8-56 Preset Reference Select defines how bit
00/01 gates with the corresponding function on the
digital inputs.
MG07H102
Programming Guide
Bit value = 1
External selection lsb
External selection msb
Ramp
No coasting
Ramp
Use ramp
Start
Reset
Jog
Ramp 2
Data valid
Relay 01 active
No function
Selection lsb
Selection msb
Reverse
Bit 01 Bit 00
0 0
0 1
1 0
1 1
Danfoss A/S © 06/2016 All rights reserved.
Bit 02, DC brake
Bit 02 = 0: DC braking and stop. Set braking current and
duration in parameter 2-01 DC Brake Current and
parameter 2-02 DC Braking Time.
Bit 02 = 1: Ramping, see parameter 3-41 Ramp 1 Ramp Up
Time.
Bit 03, Coasting
Bit 03 = 0: The frequency converter releases the motor
immediately (the output transistors are shut off), so that it
coasts to a standstill.
Bit 03 = 1: The frequency converter starts the motor when
all starting conditions are fulfilled.
NOTICE
Parameter 8-50 Coasting Select defines how bit 03 gates
with the corresponding function on a digital input.
Bit 04, Quick stop
Bit 04 = 0: A stop ramps down motor speed to stop via
parameter 3-81 Quick Stop Ramp Time.
Bit 04 = 01: The frequency converter starts the motor
when all starting conditions are fulfilled.
Bit 05, Hold output frequency
Bit 05 = 0: The present output frequency (in Hz) freezes. To
change the frozen output frequency, set the digital inputs
to [21] Speed up and [22] Speed down in
parameter 5-10 Terminal 18 Digital Input to
parameter 5-15 Terminal 33 Digital Input).
NOTICE
If freeze output is active, the frequency converter can
only be stopped by the following:
•
Bit 03 Coasting stop.
•
Bit 02 DC braking.
•
Digital input (parameter 5-10 Terminal 18 Digital
Input to parameter 5-15 Terminal 33 Digital
Input) programmed to DC braking, Coasting
stop, or Reset and coasting stop.
Bit 06, Ramp stop/start
Bit 06 = 0: A stop ramps down motor speed to stop via
the selected ramp-down parameter.
Bit 06 = 1: The frequency converter starts the motor when
all starting conditions are fulfilled.
NOTICE
Parameter 8-53 Start Select defines how bit 06 Ramp
stop/start gates with the corresponding function on a
digital input.
Bit 07, Reset
Bit 07 = 0: No reset.
Bit 07 = 1: Reset of trip. Reset is activated on the leading
edge of the signal, that is, when changing from logic 0 to
logic 1.
