Control
Explanation of the bits
Bit 0, Run fwd
Bit 0 = 0: The frequency converter has a stop command.
Bit 0 = 1: The frequency converter starts the motor in
clockwise direction.
Bit 1, Run rev
Bit 0 = 0: The frequency converter has a stop command.
Bit 0 = 1: The frequency converter runs the motor in
4 4
counterclockwise direction.
Bit 2, Fault reset
Bit 2 = 0: There is no trip reset.
Bit 2 = 1: A trip is reset.
Bit 3, No function
Bit 3 has no function.
Bit 4, No function
Bit 4 has no function.
Bit 5, Net control
Bit 5 = 0: The frequency converter is controlled from the
standard inputs.
Bit 5 = 1: EIP controls the frequency converter.
NOTICE
Changes affect parameter 8-50 Coasting Select to
parameter 8-56 Preset Reference Select.
Bit 6, Net reference
Bit 6 = 0: Reference is from the standard inputs.
Bit 6 = 1: Reference is from EIP.
NOTICE
Changes affect parameter 3-15 Reference Resource 1 to
parameter 3-17 Reference Resource 3. For the speed
reference, see chapter 4.5.2 Bus Speed Reference Value
under Instances 20/70 and 21/71.
4.4.2 Status Word under Instances 20/70
and 21/71

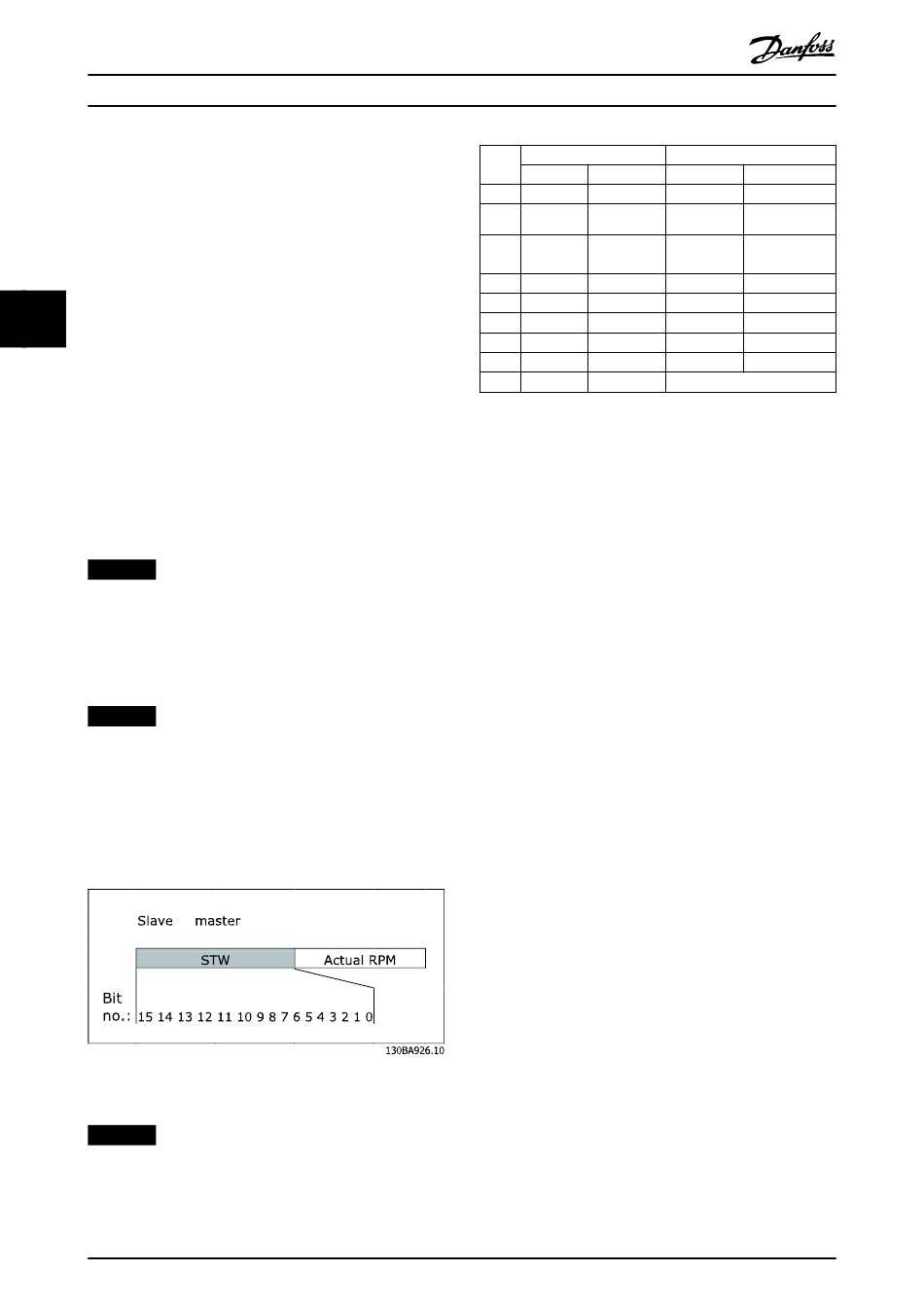

Illustration 4.5 Status Word in Instances 70 and 71
NOTICE
Bits 00 and 02 in instance 70 are identical to bits 00 and
02 in the more extensive instance 71.
18
EtherNet/IP
Bit
00
01
02
03
04
05
06
07
08–15
Table 4.9 Status Word Bits in Instances 70 and 71
Explanation of the bits
Bit 0, Fault
Bit 0 = 0: There is no fault in the frequency converter.
Bit 0 = 1: There is a fault in the frequency converter.
Bit 1, Warning
Bit 0 = 0: There is no unusual situation.
Bit 0 = 1: An abnormal condition has occurred.
Bit 2, Running 1
Bit 2 = 0: The frequency converter is not in 1 of these
states, or Run 1 is not set.
Bit 2 = 1: The frequency converter state attribute is
enabled or stopping, or fault-stop and bit 0 (Run 1) of the
control word are set at the same time.
Bit 3, Running 2
Bit 3 = 0: The frequency converter is in neither of these
states, or Run 2 is not set.
Bit 3 = 1: The frequency converter state attribute is
enabled or stopping, or fault-stop and bit 0 (Run 2) of the
control word are set at the same time.
Bit 4, Ready
Bit 4 = 0: The state attribute is in another state.
Bit 4 = 1: The state attribute is ready, enabled, or stopping.
Bit 5, Control from net
Bit 5 = 0: The frequency converter is controlled from the
standard inputs.
Bit 5 = 1: EIP has control (start, stop, reverse) of the
frequency converter.
Bit 6, Ref from net
Bit 6 = 0: The reference comes from inputs to the
frequency converter.
Bit 6 = 1: The reference comes from EIP.
Bit 7, At reference
Bit 7 = 0: The motor runs, but the present speed is
different from the preset speed reference, that is, the
speed is ramped up/down during start/stop.
Bit 7 = 1: The frequency converter and reference speeds
are equal.
Danfoss A/S © 06/2016 All rights reserved.
Instance 70
Bit = 0 Bit = 1 Bit = 0
No fault Fault No fault
– – No warning
Running 1
– –
fwd
– – –
– – –
– – –
– – –
– – –
– –
Instance 71
Bit = 1
Fault
Warning
Running 1 fwd
Running 2 rev
Ready
Ctrl from net
Ref. from net
At reference
State attribute
