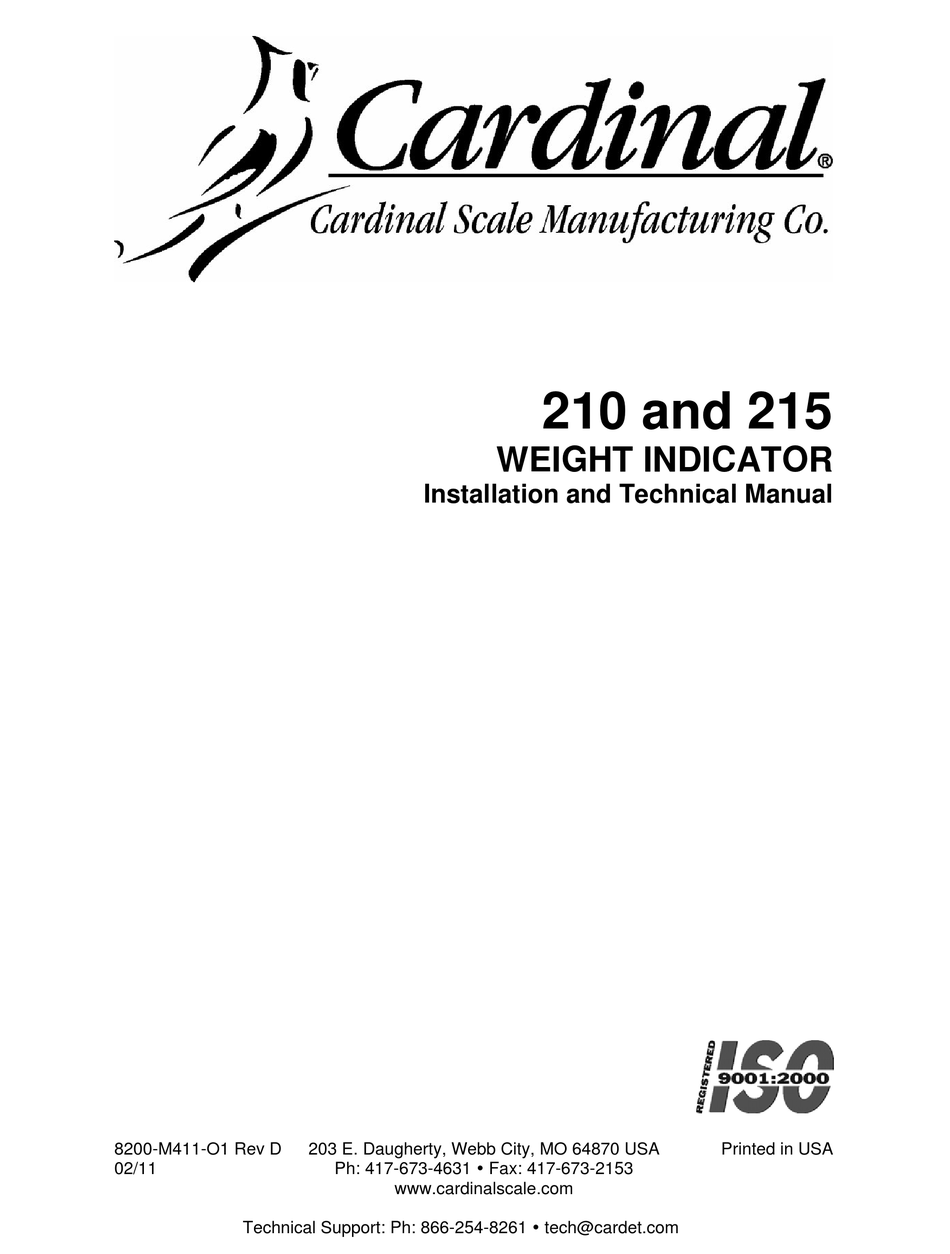

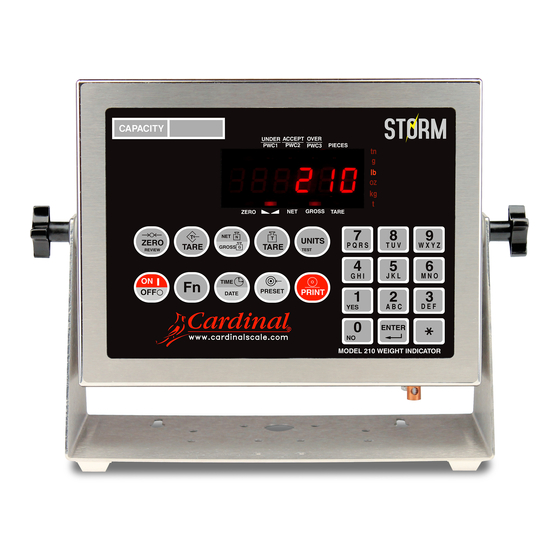

210 and 215
WEIGHT INDICATOR
Installation and Technical Manual
8200-M411-O1 Rev D
203 E. Daugherty, Webb City, MO 64870 USA
Printed in USA
Ph: 417-673-4631  Fax: 417-673-2153
02/11
www.cardinalscale.com
Technical Support: Ph: 866-254-8261  tech@cardet.com
8200-M411-O1 Rev D  210/215 Installation & Technical
1
