Technical Information
SMA Female

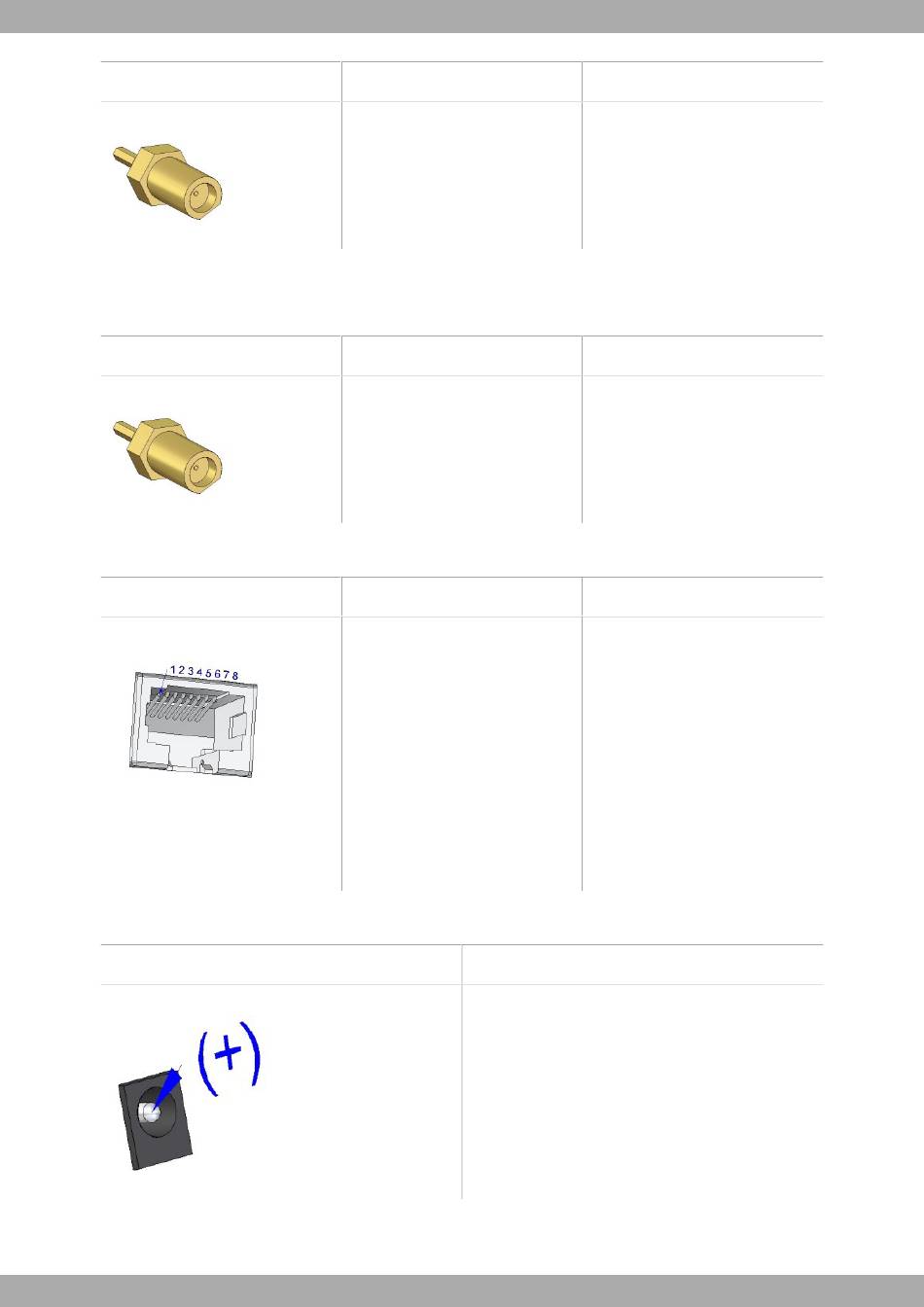

A.4.5 GPS connector
Devices equipped with this interface have one SMA female connector installed.
SMA Female
A.4.6 Configuration connector
RJ45 CONFIGURATION
A.4.7 Power supply connector
Jack 5.5/2.5mm
A.5 Technical specifications
30
PIN
Internal
External
PIN
Internal
External
RJ45 PIN
1
2
3
4
5
6
7
8
PIN
Internal -> POSITIVE
External -> NEGATIVE
ANT
RF in/out
GND
ANT
RF in/out
GND
CONF
--
RxD
GND
--
--
GND
TxD
--
Teldat S.A.
RS1800 series
