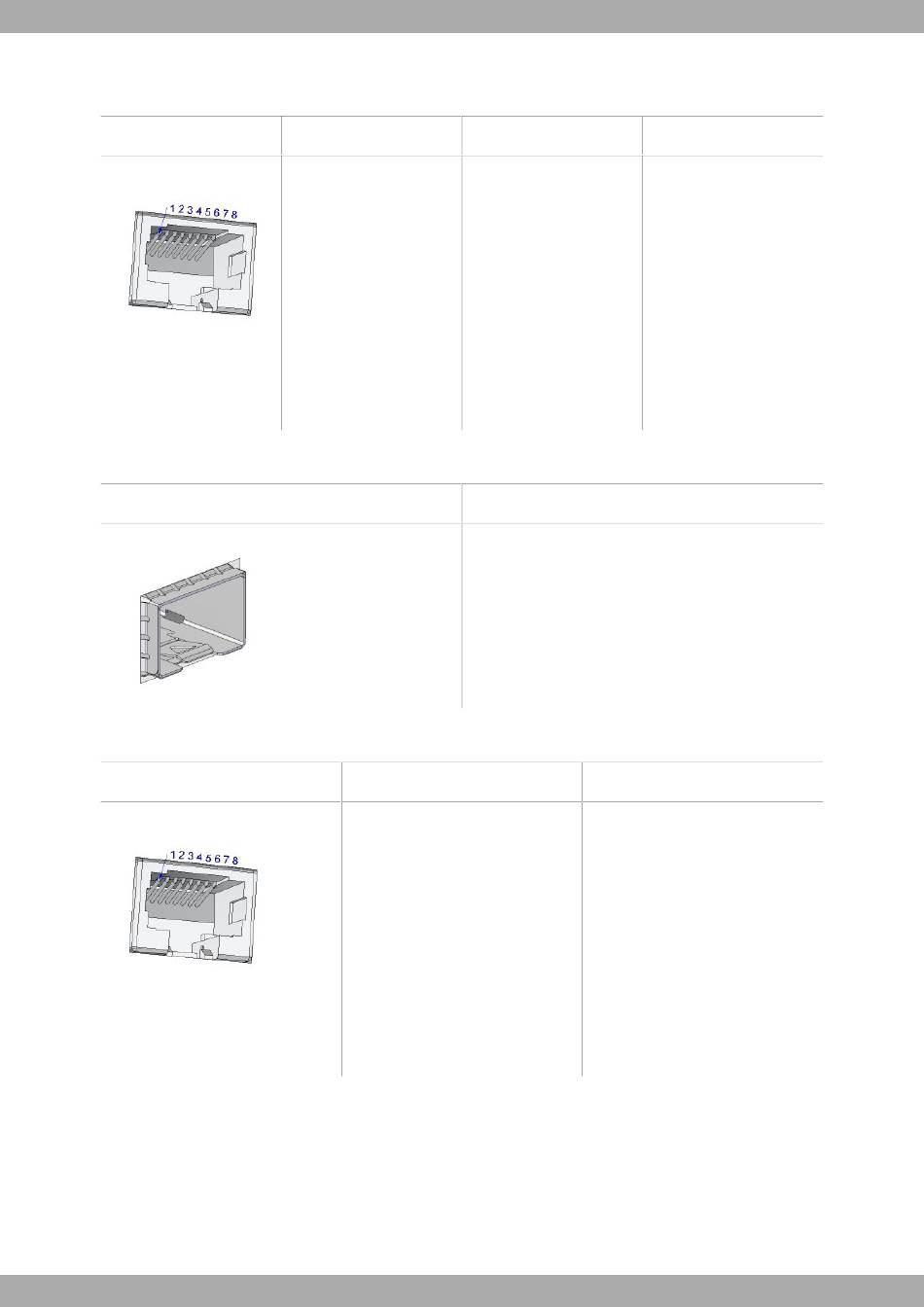

A.4.2 WAN Base-T connectors
RJ45 WAN
A.4.3 WAN SFP connector
SFP
A.4.4 Configuration connector
RJ45 CONFIGURATION
22
RJ45 PIN
1
2
3
4
5
6
7
8
RJ45 PIN
1
2
3
4
5
6
7
8
FE Signals
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
Standard SFP connector
CONF
--
RxD
GND
--
--
GND
TxD
--
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
