Location of the refractive index detector in an example
system
The following diagram shows the location of a refractive index detector in a
typical system.
Operating principles
Optical refraction
When a beam of light passes from one medium into another, it changes its
speed. If the light enters the second medium at an angle that is not
perpendicular to the medium's surface, the light is bent (refracted).

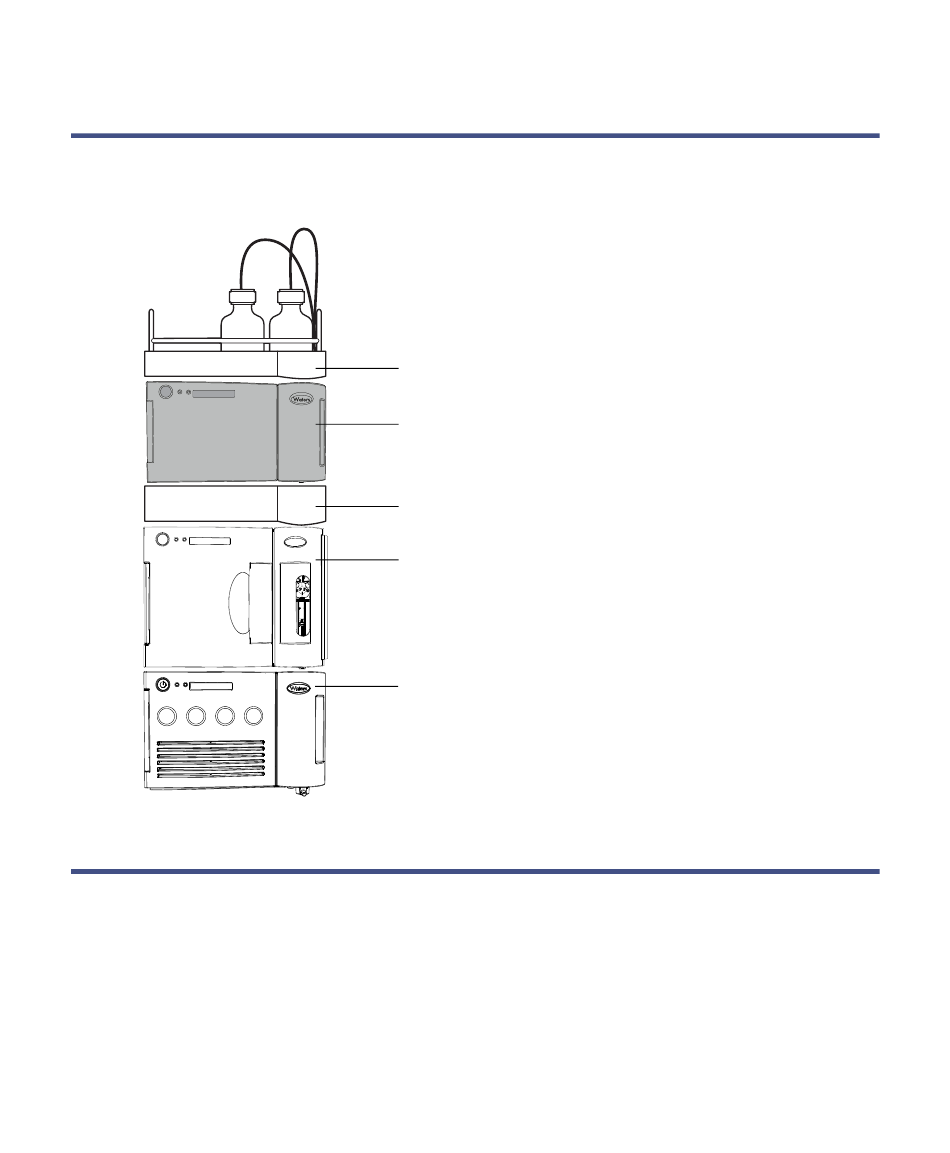

Location of the refractive index detector in an example system
Bottle tray
Refractive index
detector
TP03471
Column heater
Sample manager -
flow through needle
Quaternary
solvent manager
October 13, 2014, 715003547 Rev. C
