5.4
Amplifier Module LED Indicators
There are LED indicators on the QAD-30 amplifier module to help in troubleshooting. The
LEDs indicate troubles, alarms, and statuses for components on the main board.
See Figure 58 on page 91 for the locations of the LEDs. See Table 16 for descriptions of what
the LEDs' indicate.
An indicator of Output 1 or Output 2 implies a wiring short or a missing EOL.
Output 1
Trouble
LED
Active
LED

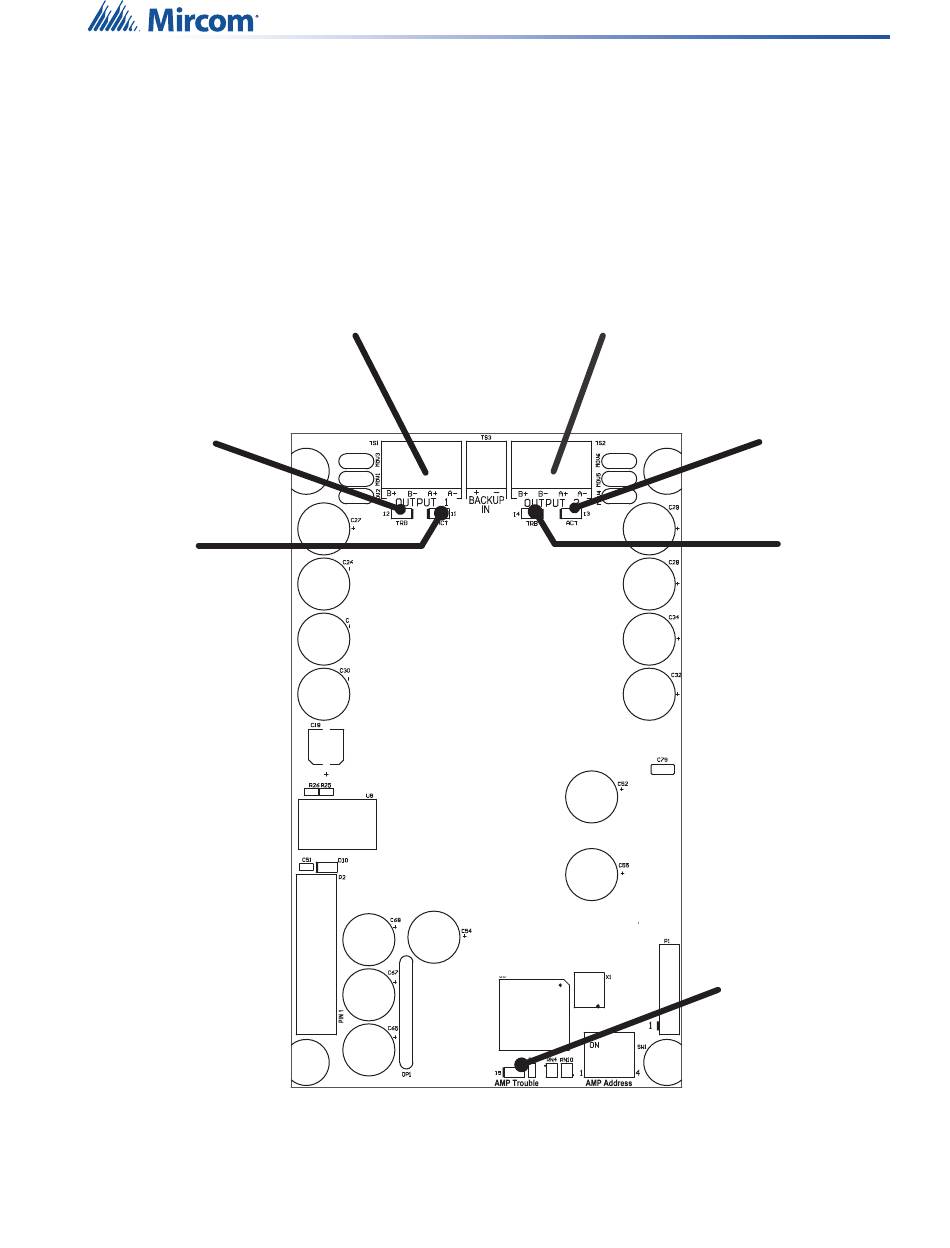

Figure 58 Locations of the QAD-30 amplifier module LEDs
Output 2
Indicators & Controls
Active
LED
Trouble
LED
Amp
Trouble
LED
91
