3.6.1 Installing the Audio Zone Splitter Module
To Connect the Audio Zone Splitter Module to a QX-mini or QX-mini-BP Board
i
Note:
1. Replace one standoff for each screw on the right side of the QX-mini main board as
shown in Figure 27.
2. Attach ribbon cable between P7 on the QX-mini or QX-mini-BP board to P1 on QAS-2X8
audio zone splitter board.
3. Place QAS-2X8 board so its screw holes align with the standoffs.
4. Secure QAS-2X8 using four screws.
Audio zone
splitter
Screw

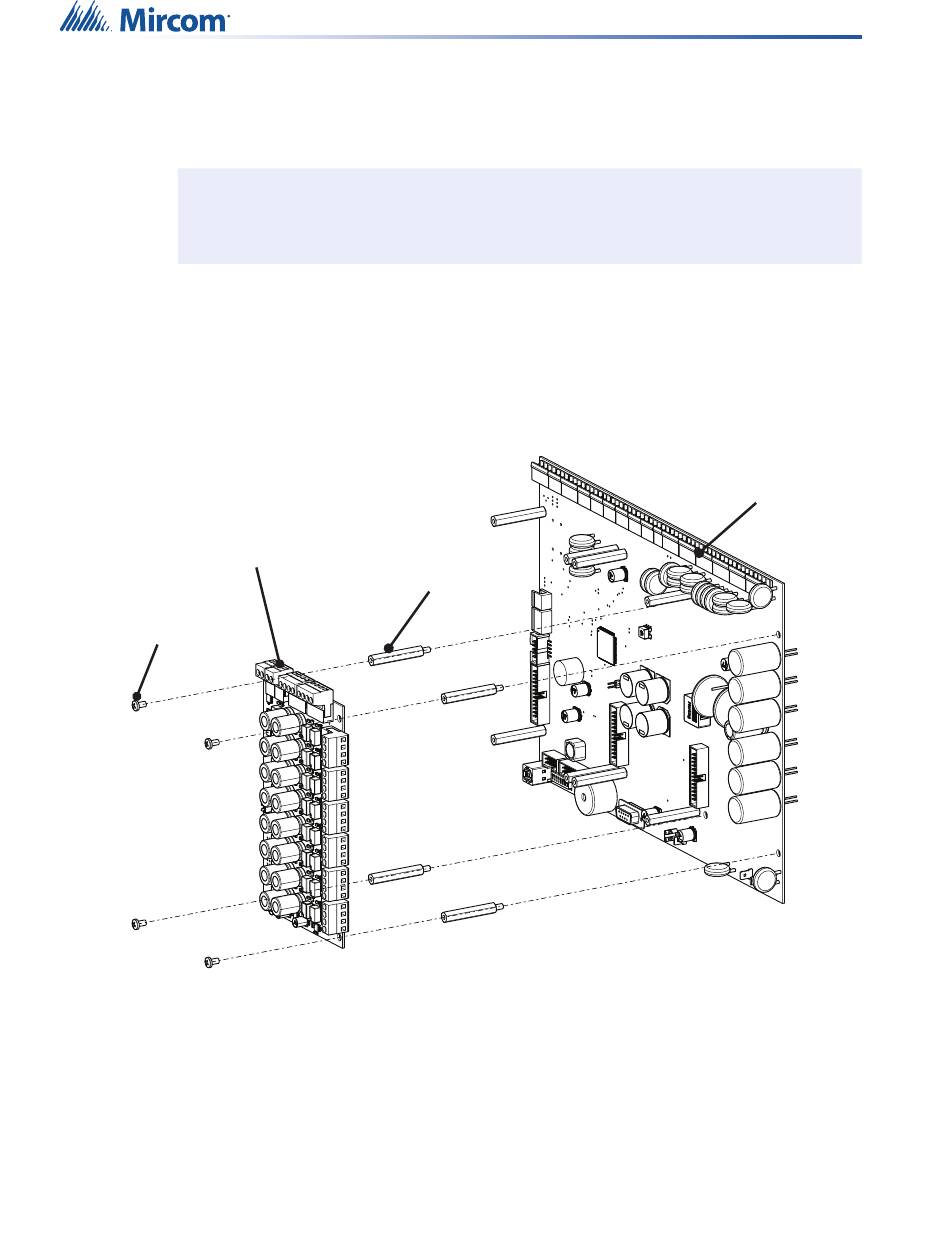

Figure 27 Installing the audio zone splitter module

56
Ensure ALL AC and battery connections are disconnected before attempting to
install or remove any component. Otherwise, board damage may occur.
Standoff
Installation
QX-mini Board
