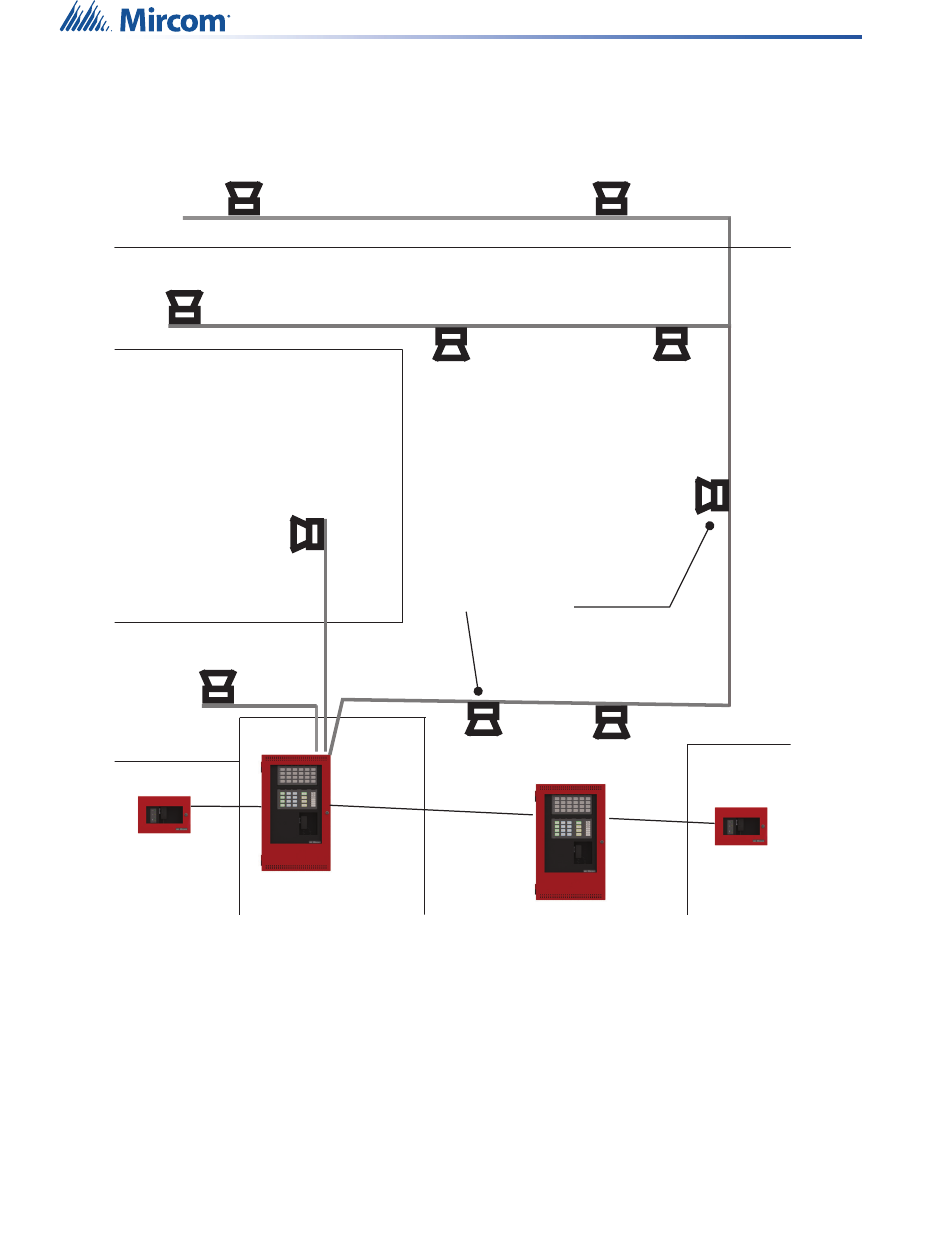

Figure 64 Public annunciating system for a single floor multi-use building

8.1.2 Conventional Fire Alarm
Combined Fire Alarm, Audio Messaging, and Emergency Audio
The same layout as the Stand Alone Use, but with automatic fire message initiation via a
Conventional Fire Alarm Control Panel.
Options for this configuration:
• The QX-mini can interface with any conventional FACP (i.e. Mircom FA-1000 AND FA-
300 series) using dry contacts and/or NAC.
