4.4.1 Wiring the Audio Zone Splitter to Amplifiers
This section describes some of the most common ways to use the audio zone splitter.
In all cases, each amplifier provides up to a maximum of 30W.
One Audio Message Application and One Amplifier

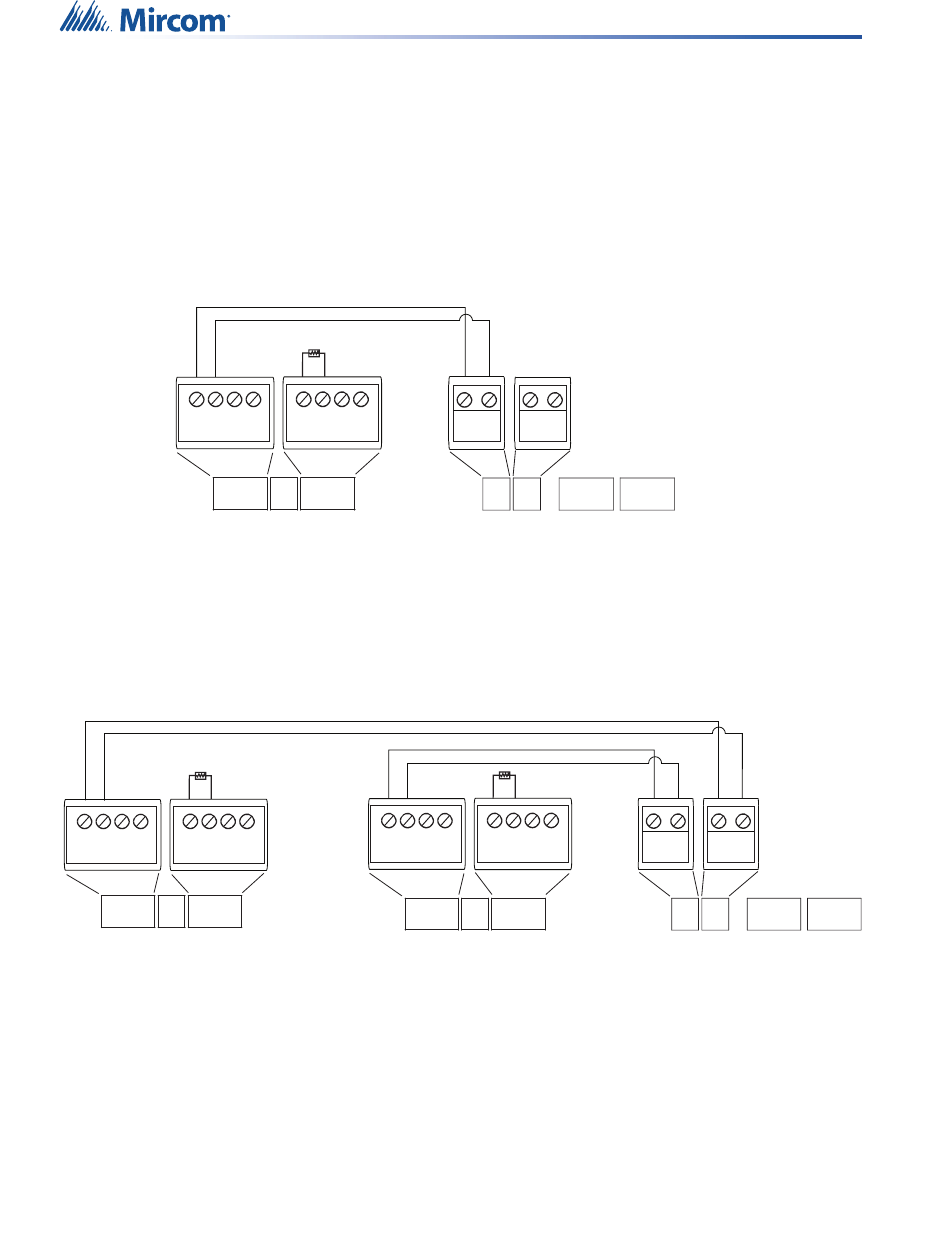

Figure 50 shows the wiring of 1 amplifier to the audio zone splitter in a one audio message
application. This configuration provides 9 outputs (1 output on the amplifier and 8 outputs on
the audio zone splitter), and the ability to turn audio zones on and off.
B+B- A+A-
OUTPUT 1
TS1
OUTPUT 1
B+ B- A+ A-

Figure 50 Wiring 1 amplifier to the audio zone splitter

One Audio Message Application and Two Amplifiers
Figure 51 shows the wiring of 2 amplifiers to the audio zone splitter in an application where
both amplifiers play the same audio message. This configuration provides 10 outputs (2
outputs on the amplifier and 8 outputs on the audio zone splitter), and the ability to turn audio
zones on and off.
22K EOL if this
output is not used
B+B- A+A- B+B- A+A-
OUTPUT 2
OUTPUT 1
TS1 TS3 TS2
BACKUP
OUTPUT 1 OUTPUT 2
IN
B+ B- A+ A- + - B+ B- A+ A-
QAD-30 #2

Figure 51 Wiring 2 amplifiers to the audio zone splitter

78
22K EOL if this
output is not used
B+B- A+A-
OUTPUT 2
TS3 TS2
BACKUP OUTPUT 2
IN
+ - B+ B- A+ A-
QAD-30 #1
B+B- A+A-
OUTPUT 1
OUTPUT 1
B+ B- A+ A-
+ - + -
INPUT 1 INPUT 2
TS2 TS3 TS1A
OUTPUT 1
INPUT 1 INPUT 2
+ - + - + - + -
QAS-2X8
22K EOL if this
output is not used
B+B- A+A-
OUTPUT 2
TS1 TS3 TS2
BACKUP OUTPUT 2
IN
+ - B+ B- A+ A-
QAD-30 #1
TS1B
OUTPUT 2
+ - + -
+ - + -
INPUT 1 INPUT 2
TS2 TS3 TS1A
OUTPUT 1
INPUT 1 INPUT 2
+ - + - + - + -
QAS-2X8
Wiring
TS1B
OUTPUT 2
+ - + -
