Table 6 QAD-30 amplifier module terminals (Continued)
Terminal
TS3
3.5.1 Setting the DIP switch
There is 1 bank of DIP switch bits on the QAD-30.
This DIP switch bank has 4 switches, numbered 1 to 4. Flipping a switch up places it in the ON
position. For the purposes of the configuration tables ON = 1 and OFF = 0. For an
illustration of the DIP switch settings see Figure 24.
ON
OFF

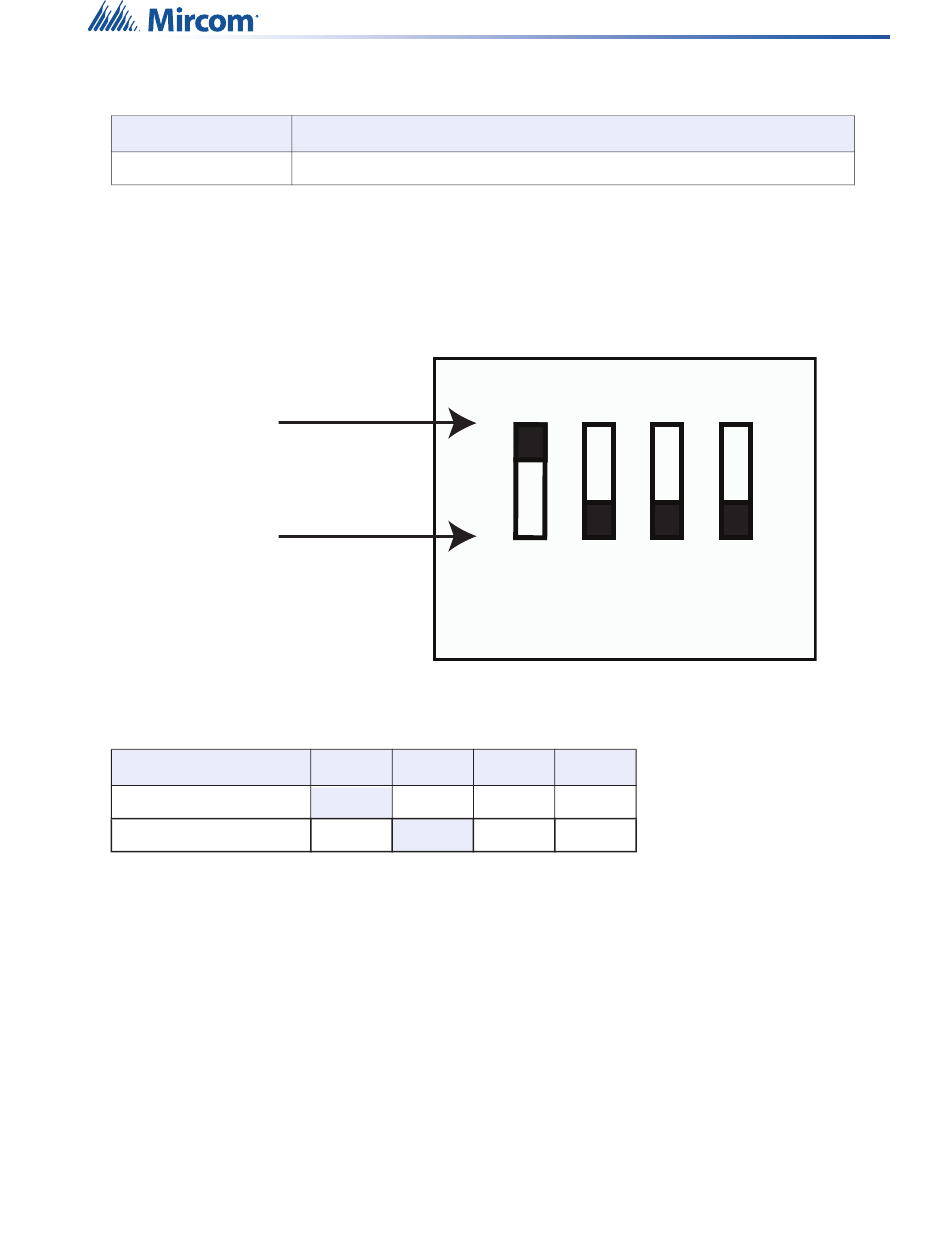

Figure 24 QAD-30 DIP switch positions

Table 7 QAD-30 DIP Switch Settings
Amplifier address
1
2
Description
Input for backup amplifier.
Bit 1 Bit 2
ON OFF
OFF ON
1
0
1 2 3
Bit 3 Bit 4
OFF OFF
OFF OFF
Installation
4
53
