10.2.1 Troubleshooting using LEDs
The QX-mini board uses LEDs to indicate activity and trouble events. The following
procedures allow the operator to quickly diagnose board health or eliminate the most common
system issues.
Remote Mic
Trouble
Relay 1 Relay 2
Trouble Active
Relay 1
Relay 2
Active
Trouble
Power
CPU
Battery
FAIL
Trouble

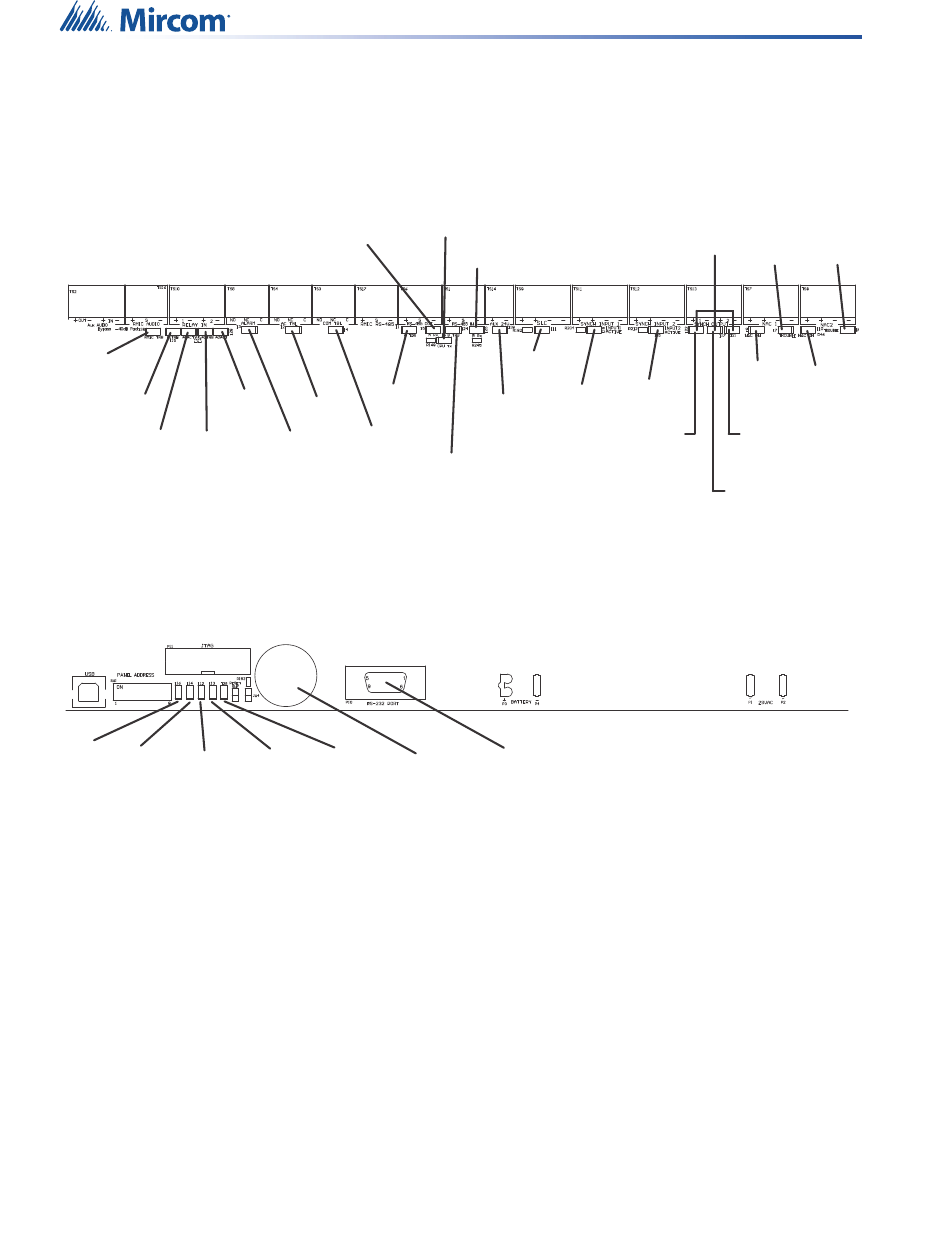

Figure 72 QX-mini board LEDs

1. For Common Trouble, look at QX-mini Main Display for indication of
2. Examine QX-mini board for Trouble LEDs.
3. Examine QX-mini board for COMMS LEDs.
4. Check QX-mini Main Display Connection (no dedicated LED).
5. Confirm Configurator Software matches Hardware configuration (i.e. missing amplifier
board).
6. Check Panel Address DIP Switch settings.
