3.6

QAS-2X8 Audio Zone Splitter Module Installation

The QAS-2X8 mounts on the rightmost side of the main board using four spacers. The QAS-
2X8 uses a ribbon cable for QX-mini board connections and power. The terminals on the QAS-
2X8 are shown below and are described in Table 8.
Amplifier input 1
Ribbon
Connector
(connects to
P7 on main
board)

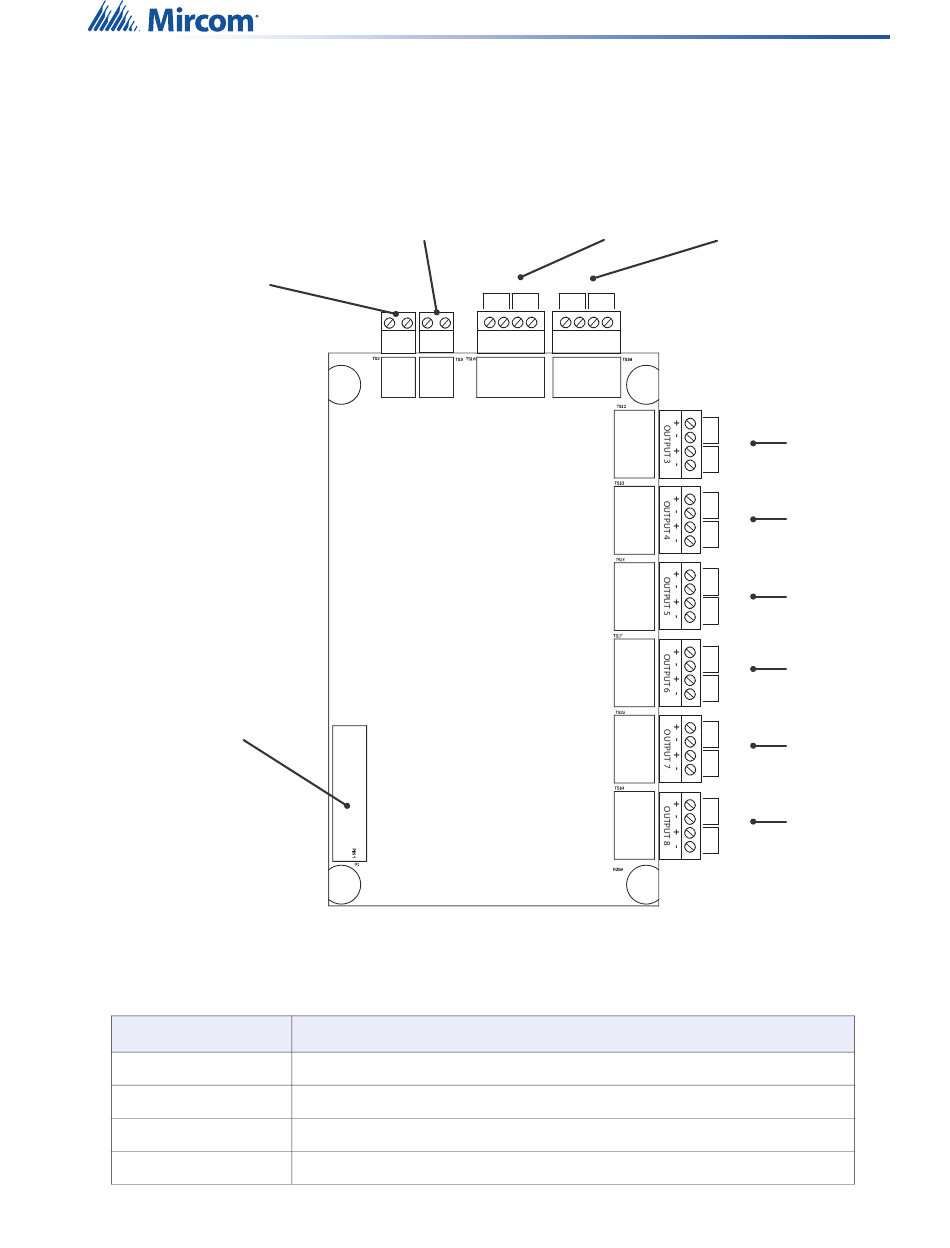

Figure 26 QAS-2X8 audio zone splitter module connections

Table 8 QAS-2X8 audio zone splitter module terminals
Terminal Description
P1 Ribbon cable terminal to P7 on Main Board.
TS2 Amplifier input 1 terminals.
TS3 Amplifier input 2 terminals.
TS1A - TS1H Output terminals 1-8 for audio zones.
Amplifier input 2
Class B Class A
+ -
+ - + -
INPUT 1 INPUT 2
OUTPUT 1
TS2 TS3 TS1A
P1
Output 1 Output 2
Class B Class A
+ - + - + -
OUTPUT 2
TS1B
TS1C
TS1D
TS1E
TS1F
TS1G
TS1H
Installation
Class B
Output 3
Class A
Class B
Output 4
Class A
Class B
Output 5
Class A
Class B
Output 6
Class A
Class B
Output 7
Class A
Class B
Output 8
Class A
