QAS-2X8 Audio Zone Splitter Connections

To install an audio zone splitter
1. See section 3.6.1 Installing the Audio Zone Splitter Module on page 56 for instructions
on adding a QAS-2X8 audio zone splitter.
To enable an audio zone splitter
1. Configure in Software.
The QAS-2X8 audio zone splitter is shown in Figure 26 on page 55. The QAS-2X8 has 8
supervised Class A or Class B outputs. Wire speakers to them as shown in Figure 49.
Class A
Wiring

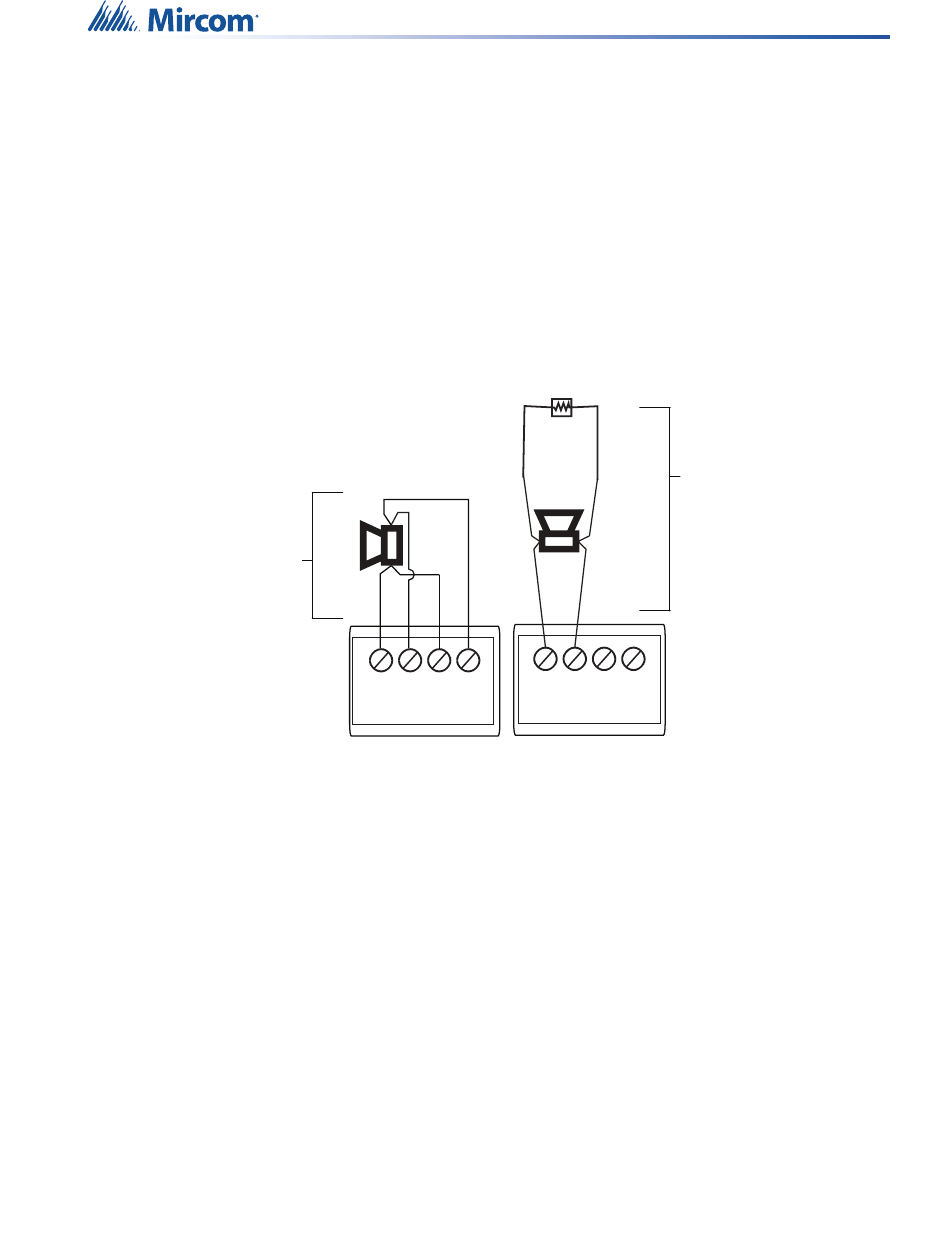

Figure 49 Audio zone splitter wiring to speakers

22K EOL (EOL-223)
B+B- A+A- B+B- A+A-
OUTPUT
Class B
Wiring
OUTPUT
Wiring
