L M N
444

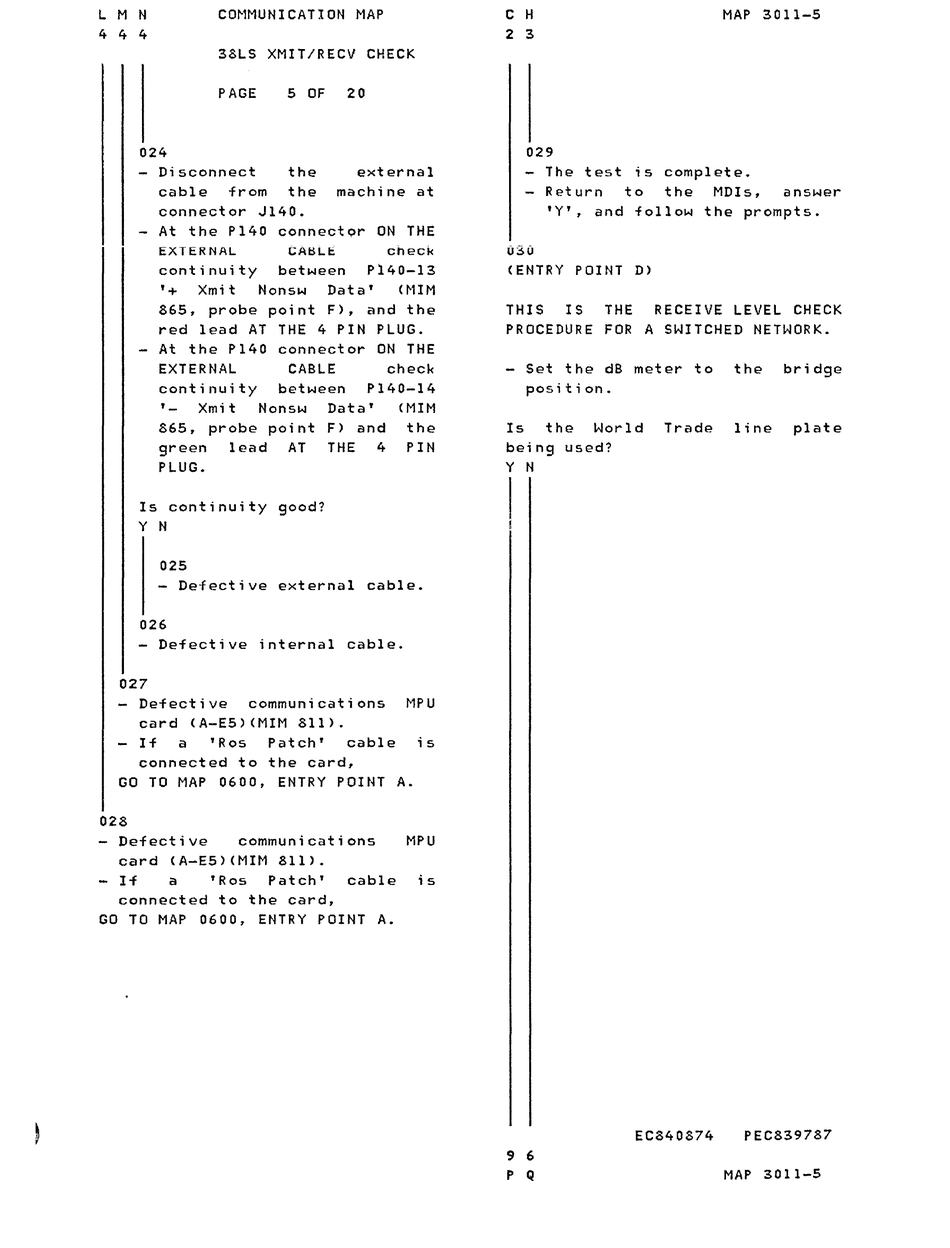

COMMUNICATION MAP
3SLS XMIT/RECV CHECK
PAGE
5 OF
20
024
- Disconnect
the
external
cable
from
the
machine at
connector J140.
- At the P140 connectQr ON THE
EXTERNAL
check
continuity
between
P140-l3
'+
Xmit
Nonsw
Data'
(MIM
865~
probe point F), and the
red lead AT THE 4 PIN PLUG.
- At the Pl40 connector ON THE
EXTERNAL
CABLE
check
continuity
between
P140-l4
Xmit
Nonsw
Data'
(MIM
S65~
probe point
F)
and
the
green
lead
AT
THE
4
PIN
PLUG.
Is continuity good?
Y N
025
- Defective external cable.
026
- Defective internal cable.
027
- Defective
communications
MPU
card (A-E5)(MIM 811).
- If
a
'Ros
Patch'
cable
is
connected to the card,
GO TO MAP 0600, ENTRY POINT A.
028
- Defective
communications
MPU
card (A-E5)(MIM 811).
- If
a
'Ros
Patch'
cable
is
connected to the card,
GO TO MAP 0600, ENTRY POINT A.
C H
2 3
MAP 3011-5
029
- The test is complete.
- Return
to
the
MDIs~
answer
'Y', and follow the prompts.
u~u
(ENTRY POINT D)
THIS
IS
THE
RECEIVE LEVEL CHECK
PROCEDURE FOR A SWITCHED NETWORK.
- Set the dB meter to
the
bridge
position.
Is
the
World
Trade
line
plate
being used?
Y N
I
EC840S74
PECS397S7
9 6
P
Q
MAP 3011-5
