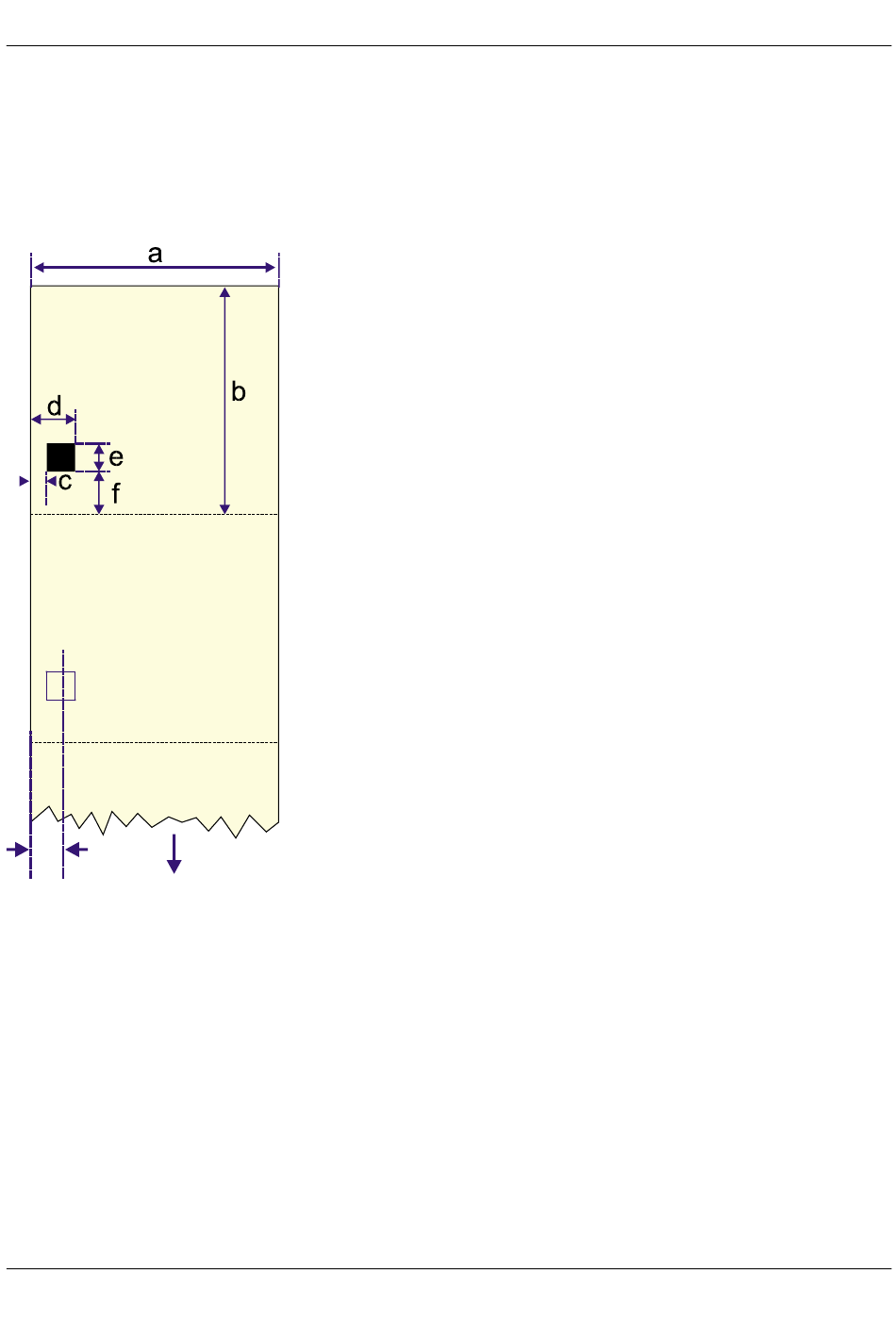

Tickets with Black Mark

Tickets with
Black Marks
Label Stop
Sensor
position
Feed
12 mm
(0.47 inches)
Direction
54
⇐ a ⇒ Media Width:
Maximum:
Minimum:
⇐ b ⇒ Copy Length:
Minimum:
⇐ c ⇒ Black Mark Offset:
The distance between the inner edge of the media and the inner
edge of the black mark must be:
Maximum:
Minimum:
⇐ d ⇒ Black Mark End:
The distance between the inner edge of the media and the outer
edge of the black mark must be:
Maximum:
Minimum:
⇐ e ⇒ Black Mark Height:
Common:
Minimum:
⇐ f ⇒ Black Mark Y-Position:
The black mark should be as close to the front edge of the ticket
as possible. Use a negative stopadjust value to control the media
feed, so that the tickets can be properly torn or cut off.
The black mark should be non-refl ective carbon black on a
whitish background.
Media type setup:
• Ticket (w mark)
Do not allow any perforations to break the edge of the media, as
this may cause the media to split and jam the printer.
114.0 mm
25.4 mm
20.0 mm
9.5 mm
No restriction
No restriction
25.4 mm
12.5 mm
5.0 mm
