Tickets With Gap - Intermec EasyCoder E4 User Manual

Media, cont.

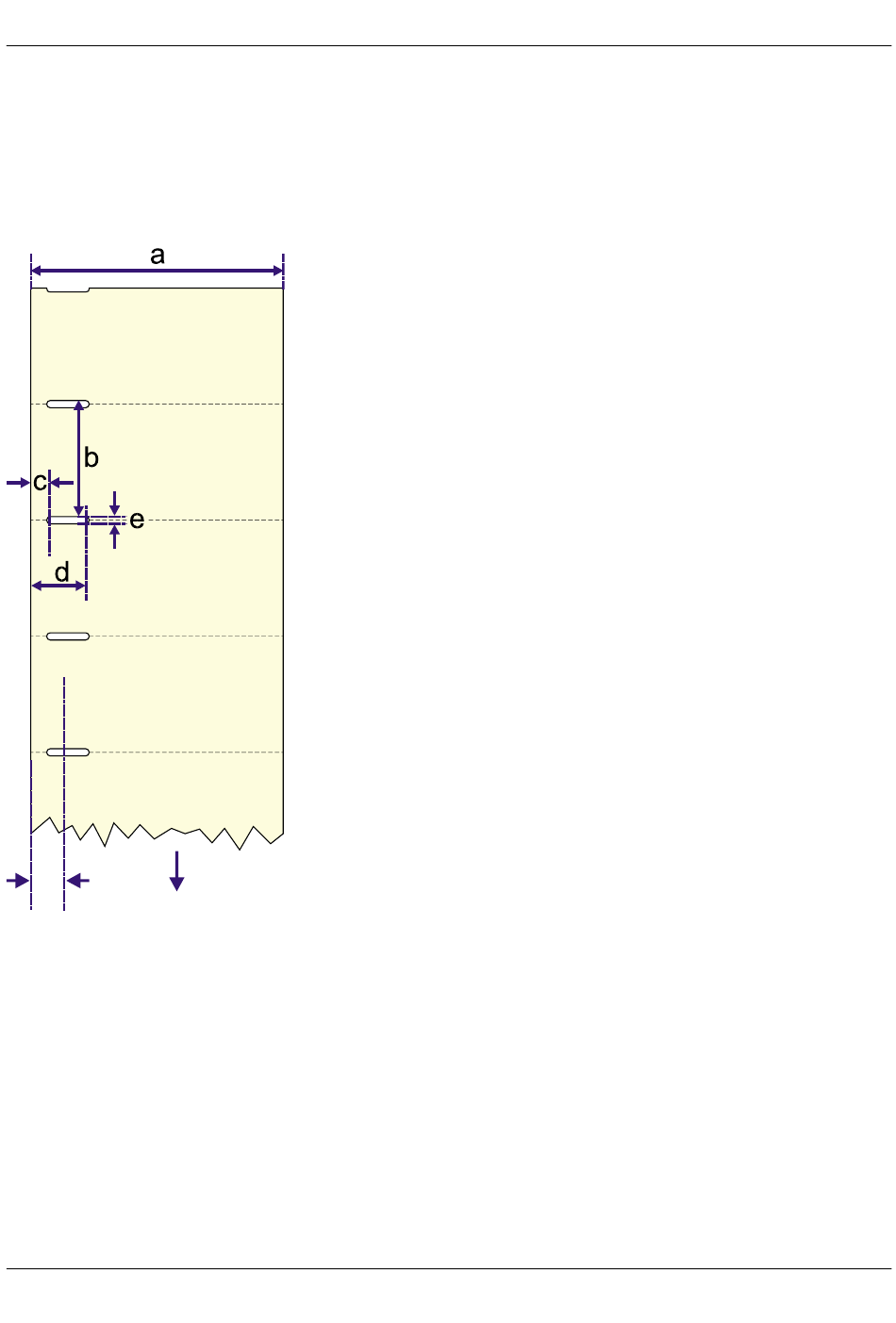

Tickets with Gap

Tickets & Tags
Label Stop
Sensor
position
Feed
12 mm
Direction
(0.47 inches)
Intermec EasyCoder E4 – User's Guide
⇐ a ⇒ Media Width:
Maximum:
Minimum (standard):
⇐ b ⇒ Copy Length:
Min. length between slots:
⇐ c ⇒ Detection Slit Start:
The distance between the inner edge of the media and the start of
the detection gap (excl. corner radii) must be:
Minimum:
Maximum:
⇐ c ⇒ Detection Slit End:
The distance between the inner edge of the media and the end of
the detection gap (excl. corner radii) must be:
Minimum:
⇐ e ⇒ Detection Slit Height:
Maximum:
Recommended:
Minimum:
Media Type Setup:
• Ticket (w gaps)
Do not allow any perforation to break the edge of the media, as
this may cause the media to split and jam the printer.
Appendix 2 Media Specifi cations
114.0 mm
25.4 mm
10.0 mm
6 mm
9 mm
15 mm
10.0 mm
1.6 mm
1.2 mm
(4.5 inches)
(1.00 inches)
(0.39 inches)
(0.24 inches)
(0.35 inches)
(0.59 inches)
(0.39 inches)
(0.06 inches)
(0.05 inches)
53
