Ribbon Load, cont.
3

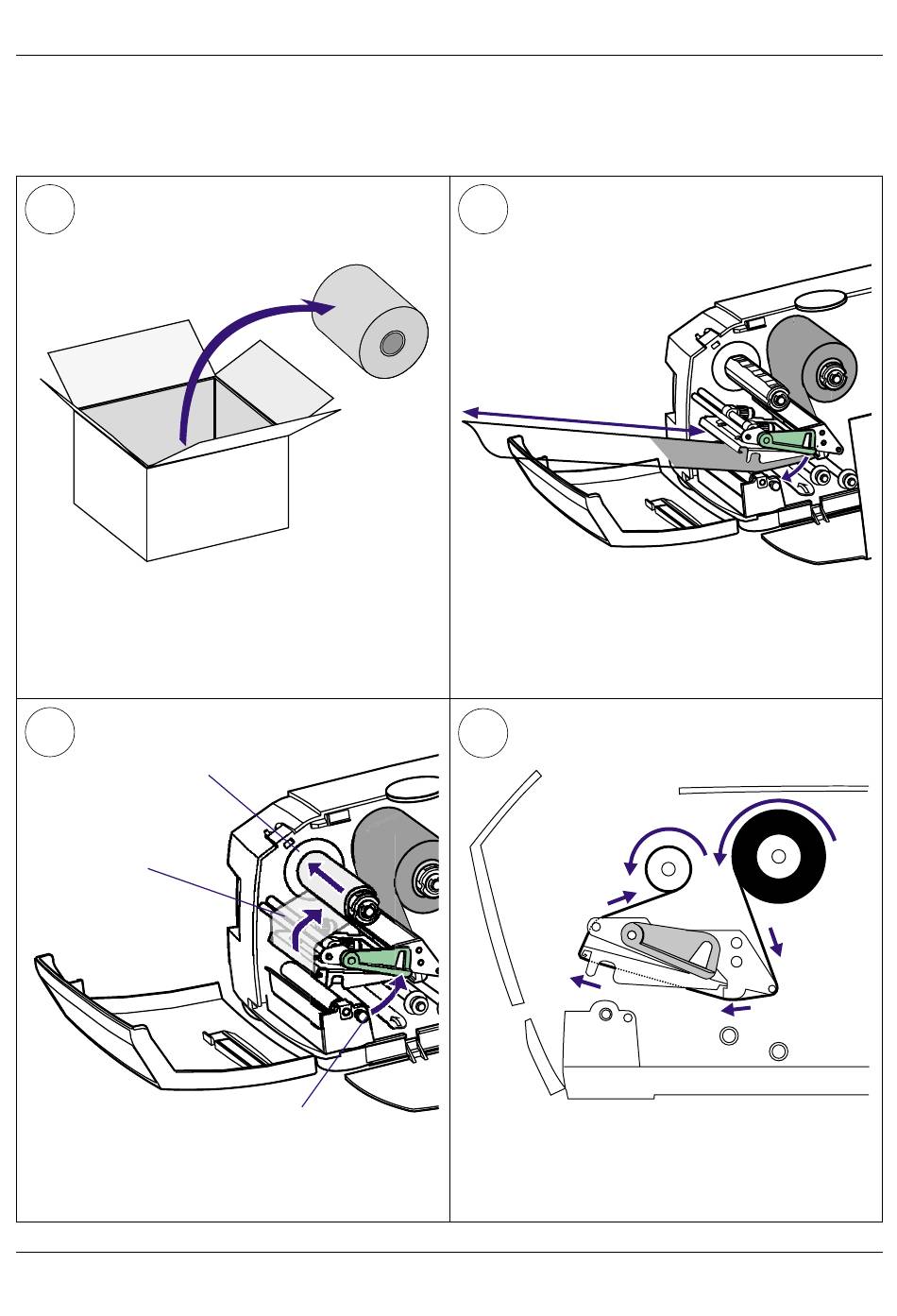

Unpack a roll of original Intermec thermal transfer
5
2
Press an empty core onto the ribbon rewind hub
(1.) Tape the transparent ribbon leader to the
core (2) and raise the printhead (3.)
Intermec EasyCoder E4 – User's Guide
ribbon.
1
3
4
20 cm (8 inches)
Press the ribbon roll onto the ribbon supply spool and
route the ribbon under the printhead with the ink-
coated side facing down. Pull out approx. 20 cm (8
inches) of ribbon and lower the printhead.
6
Both ribbon cores must rotate counterclockwize.
