Chapter 3 Operation
Printing Test Labels, cont.

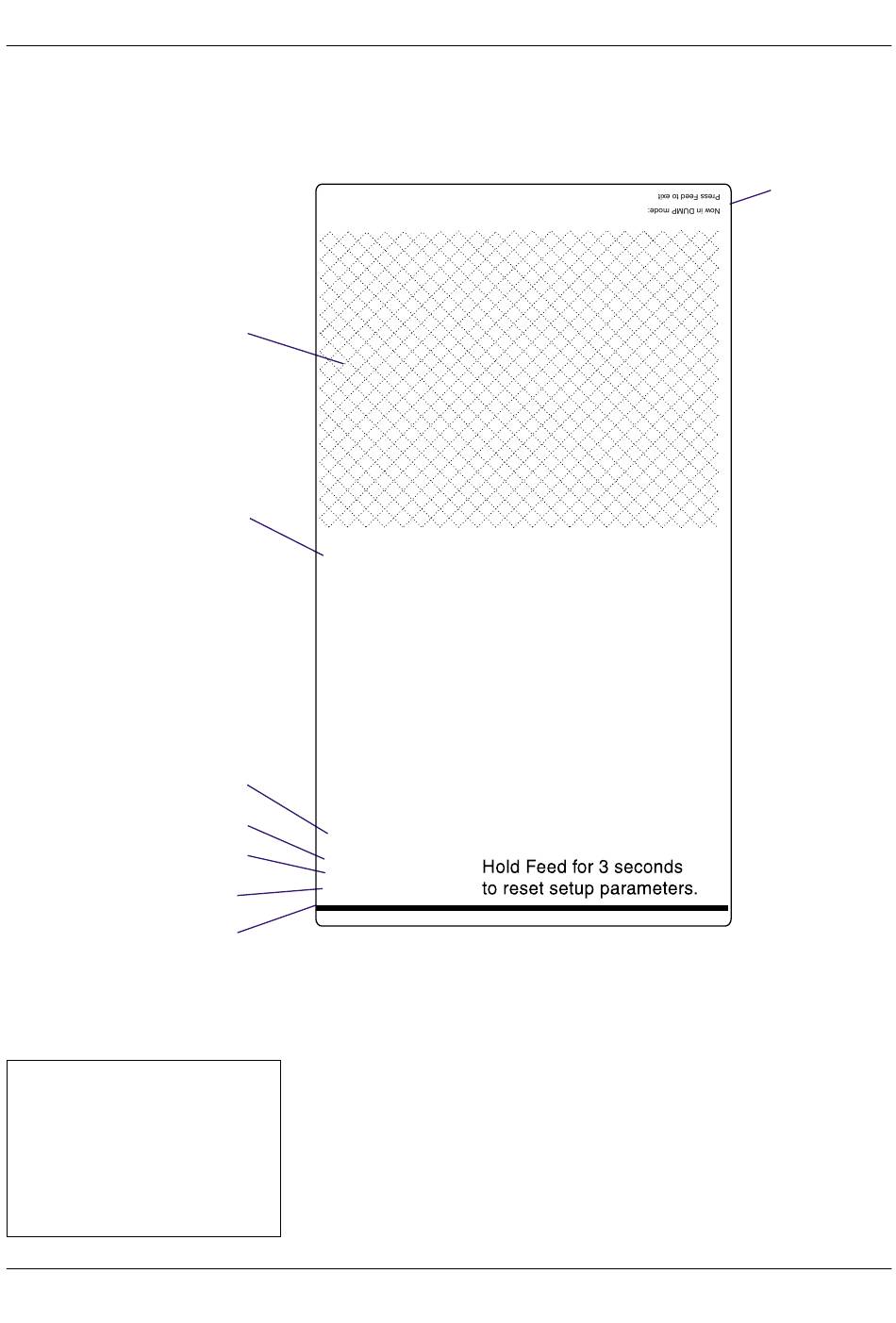

Crosshatch pattern
Setup parameters
Firmware version number
Label size (in dots)
Serial port setup
Total length of media printed
since last font upgrading
1 /. The label size given on
the test label is the size for
which the printer has been
set up. Thus, it is not neces-
sarily the actual size of the
labels loaded into the printer.
24
Example of a test label:
LSS ADJUST,20
STOPADJ,0
STARTADJ,0
XSTART,0
WIDTH,832
LENGTH,1200
MEDIA TYPE,LABEL (w GAPS)
HEAD RESISTANCE:651
THERMAL TRANSFER
PERFORMANCE,NORMAL
CONTRAST,5
UART1,BAUDRATE,9600
UART1,PARITY,NONE
UART1,CHAR LENGTH,8
UART1,STOPBITS,1
UART1,FLOW CONTROL,RTS/CTS,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA FROM HOST,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA TO HOST,DISABLE
UART1,NEW LINE,CR/LF
1
V2.10
Page: 832x1200
SERCOM:9600N81
Km of labels: 0.000
Test bar
Intermec EasyCoder E4 – User's Guide
Mode of
Operation
