Paper, cont'd.

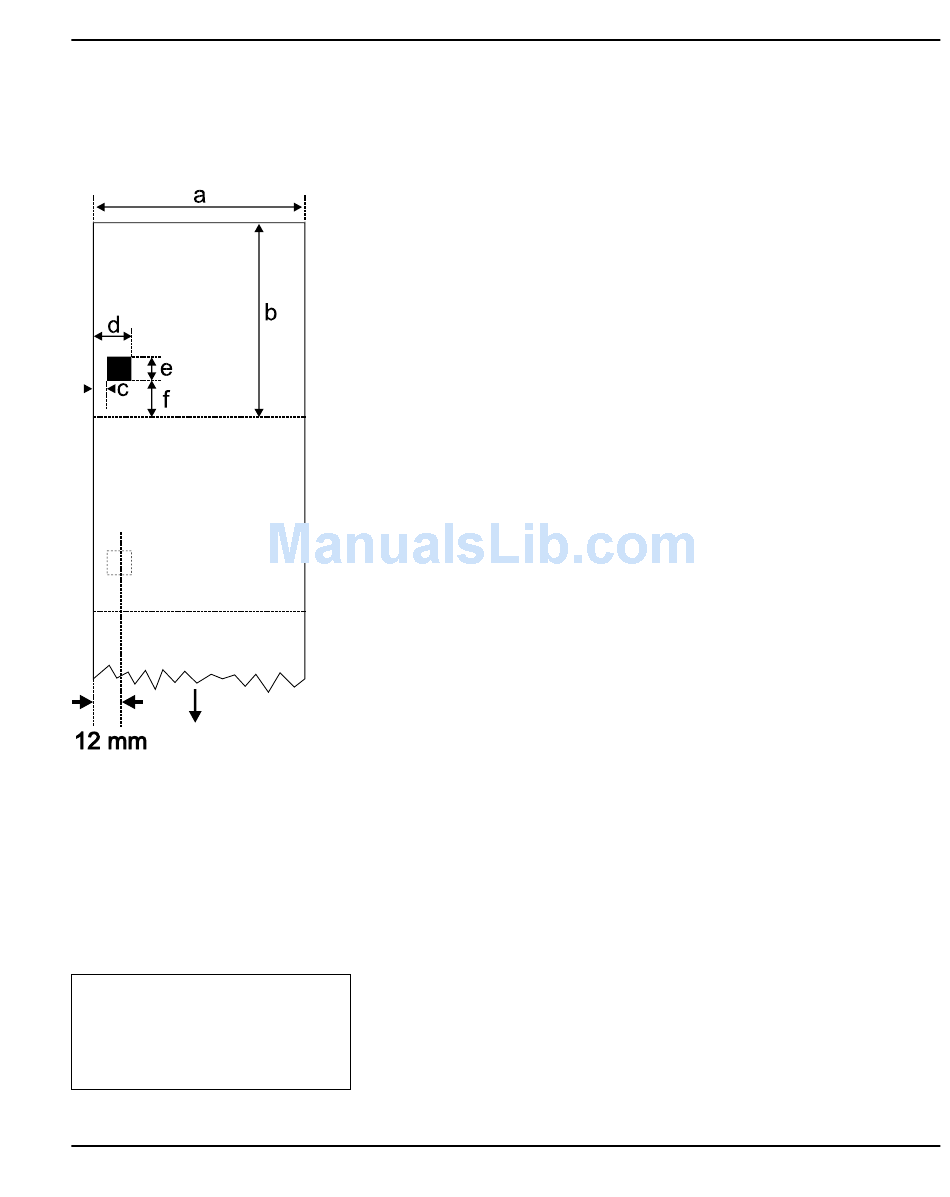

Tickets with Black Mark

Tickets
Label Stop
Sensor
position
Paper feed
direction
Do not allow the perforations to
break the edge of the web, as this
may cause the web to split, re-
sulting in a paper jam.
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
⇐ a ⇒ Web Width:
Maximum ................................ :
Minimum ................................ :
⇐ b ⇒ Copy Length:
Minimum ................................ :
⇐ c ⇒ Black Mark Offset:
The distance between the inner edge of the paper web and the inner
edge of the black mark must be:
Maximum ................................ :
Minimum ................................ :
⇐ d ⇒ Black Mark End:
The distance between the inner edge of the paper web and the outer
edge of the black mark must be:
Maximum ................................ :
Minimum ................................ :
⇐ e ⇒ Black Mark Height:
Common ................................. :
Minimum ................................ :
⇐ f ⇒ Black Mark Y-Position:
The black mark should be as close to the front edge of the ticket as
possible. Use a negative stopadjust value to control the paper feed,
so that the tickets can be properly torn off.
The black mark should be non-reflective carbon black on a whitish
background.
Media type setup:
• Ticket (w mark)
Appendix 2 Media Specifications
114.0 mm (4.5")
25.4 mm (1.00")
20 mm (0.8")
9.5 mm (0.37")
No restriction
No restriction
25.4 mm (1.0")
12.5 mm (0.5")
5.0 mm (0.2")
