Tickets With Black Mark (Mark Stock) - Intermec EasyCoder PF4i User Manual

Tickets With Black Mark (Mark Stock)

EasyCoder PF4i User's Guide (IPL Version)
Media Type Setup: Gap Stock
Note: Handle perforated media carefully to avoid rips or breaks along
the perforations. Broken or ripped perforations, particularly at the
edges, may cause the media to break or misfeed during printing.
Note: Preprint that may interfere with the detection of the black mark
should be avoided.
Note: The black mark should be non-reflective carbon black on a
whitish background.
a
c
e
f
d

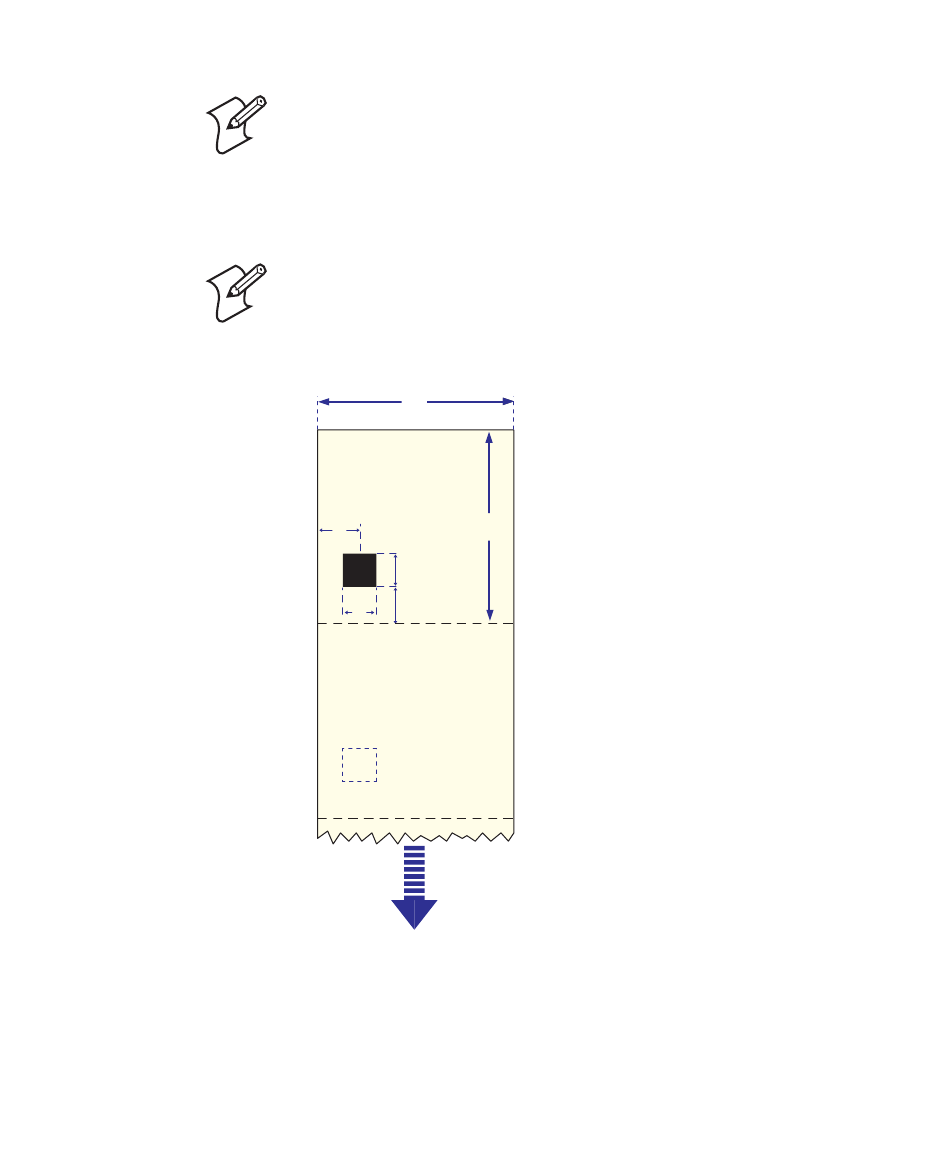

TICKETS
WITH MARKS
FEED
DIRECTION
(e) Black Mark Length
Common: 12.5 mm (0.5 inches)
Minimum: 5.0 mm (0.20 inches)
Maximum: 21.3 mm (0.83 inches)
Chapter B — Media Specifications
(a) Media Width
Maximum: 114.3 mm (4.5 inches)
Minimum (standard): 25 mm (1.00
inches)
Minimum (narrow Quick-Load): 40
mm (1.57 inches)
b
Minimum (wide Quick-Load): 80
mm (3.15 inches)
(b) Ticket Length
Minimum: 20.0 mm (0.8 inches)
Maximum: 6,143 mm (241 inches),
provided there is a sufficient amount
of free SDRAM memory
(c) LSS Detection Position: Five
"Label Taken Sensor"
positions, see
on page 71.
(d) Black Mark Width
The detectable width of the black
mark should be at least 5.0 mm (0.2
inches) on either side of the LSS
detection point.
115
