Media Load – Tear-Off, cont.
3

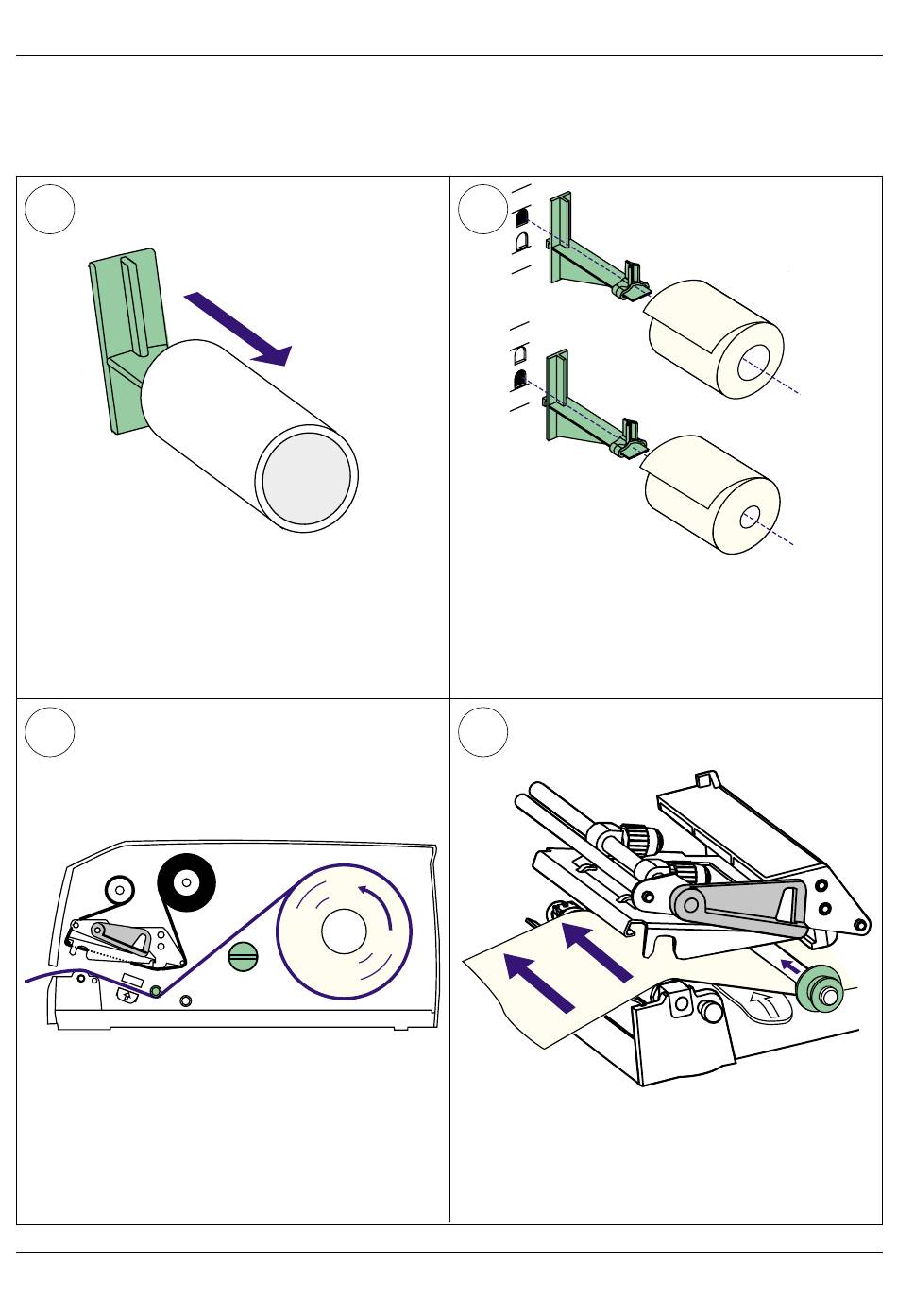

Remove any empty core from the media
supply roll post. It is not necessary to remove the
5
Route the media between the guide rollers, between
the two parts of the ribbon/media sensor, over the
platen roller, and out through the feed-out slot.
Intermec EasyCoder E4 – User's Guide
edge guide.
4
Check that the media supply roll post is in the
correct position for the size of the media roll. The
post is easier to move if fi rst rotated
Push the new roll as far in as it will go and adjust
the edge guide.
6
Push the media as far in as it will go and adjust
the edge guide ring according to the width of the
Chapter 3 Operation
1
/ of a turn.
4
media.
