Media Specifi cations

Media Roll Size

Intermec EasyCoder E4 – User's Guide
The following restrictions apply to media rolls fi tted inside the
printer. Only the width and web thickness restrictions apply to
external media supplies.
Core
Diameters:
Width:
The media must not be attached to the core in such a way
that the printer cannot pull the end free. Otherwise the thermal
transfer ribbon may be damaged.

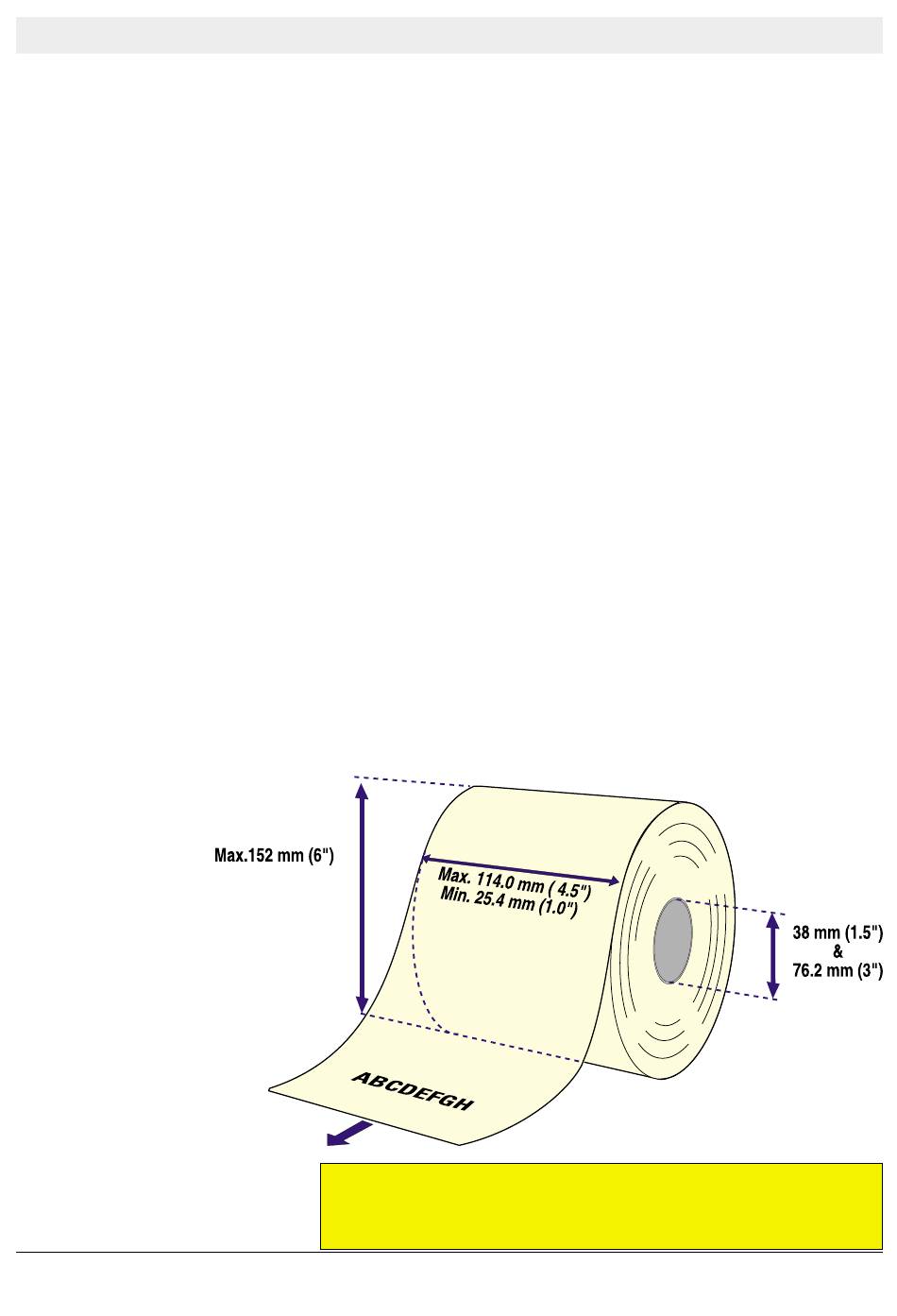

Roll
Max. diameter:
Max. width:
Min. width:
Max. web thickness:
The maximum recommended media thickness is 175µm.
Thicker media may be used, but print quality will be reduced.
Media stiffness is also important and must be balanced against
thickness to maintain print quality.
Media rolls fi tted inside the printer should be wound with the
printable side facing outwards.
An external media supply must be protected from dust, sand,
grit, etc. Any hard particles, even small ones, can damage the
printhead.
38 mm (1.5 inches)
76.2 mm (3 inches)
Must not protrude outside the media.
152 mm (6 inches)
114 mm (4.5 inches)
25.4 mm (1 inches)
175µm (0.007 inches)
Appendix 2
bottom position
top position
