8. Electronic System

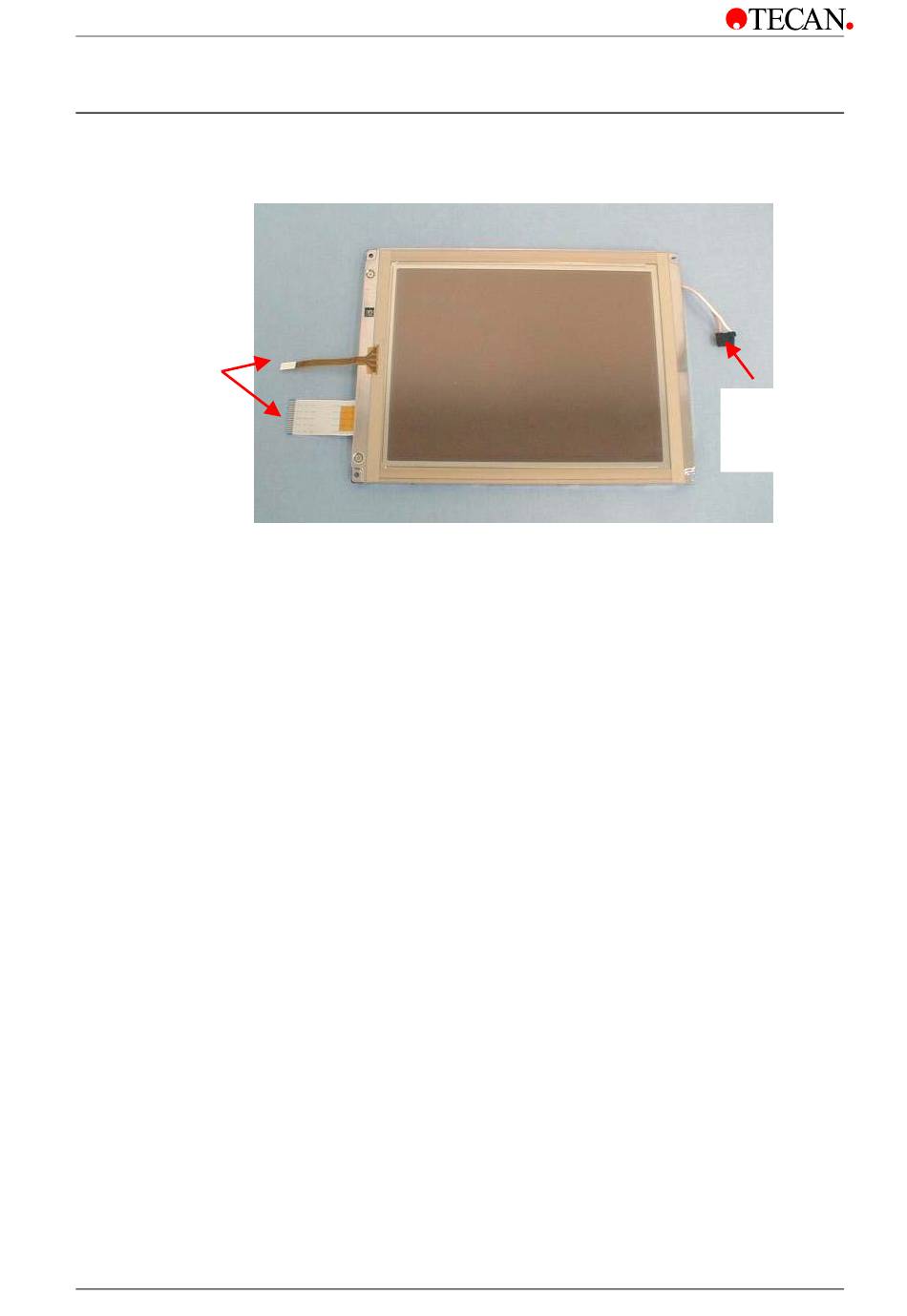

8.18 Touch Panel

Connectors to
WinCE Board
Remove the EMV shield and the black USB-PCB shield. (Refer to chapter 0
8-20 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
The touch panel consists of the display and the touchpad.
The touch panel is replaced using the following procedure:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove the instrument top cover.
4. Remove the Touchscreen
5. Remove the USB stick.
6. Unscrew the five screws where the complete chassis fixed with.
Connector to
Converter
