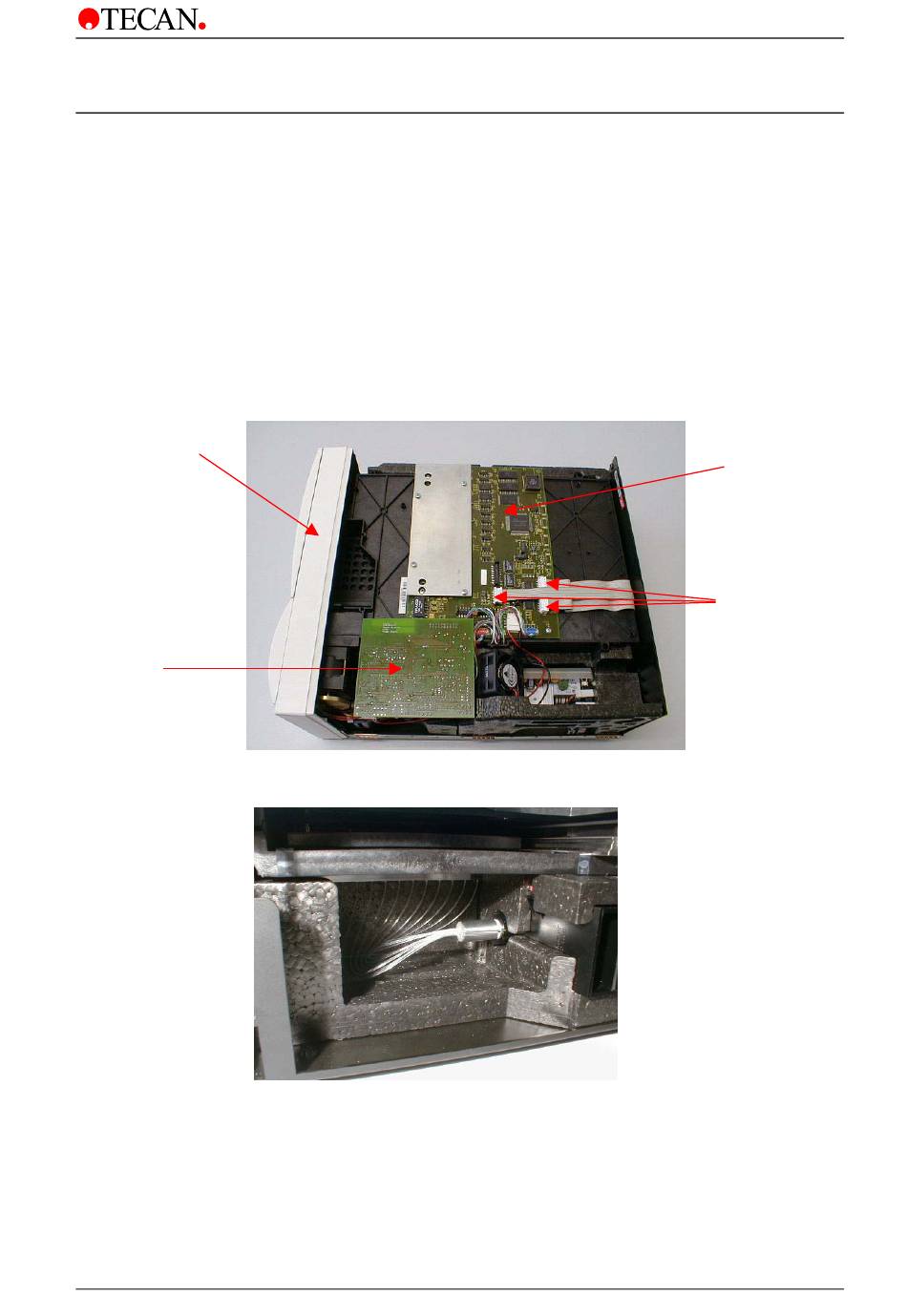

7.5 Replacing the Transport Box

Front Cover
Power Board
2004-10 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
The transport box is a whole unit and can be replaced using the following
procedure:
1. Switch the instrument OFF
2. Remove the main power cable from the socket
3. Remove top cover and upper EPAC (see 5 Removing and Replacing the
Instrument Cover)
4. Remove front Cover (see 5 Removing and Replacing the Instrument Cover)
5. Disconnect ST1, ST8,ST7,ST3,ST15,ST20 and ST 21 of Mainboard and all
connections of the of Powerboard
6. Remove the Power Board and Mainboard
7. Disconnect the Fiber bundle from the Filter Guide
7. Mechanical System
Mainboard
Connectors
