5. Removing and Replacing the
Instrument Cover
5.1 Removal of Instrument Top Cover
2004-10
Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1

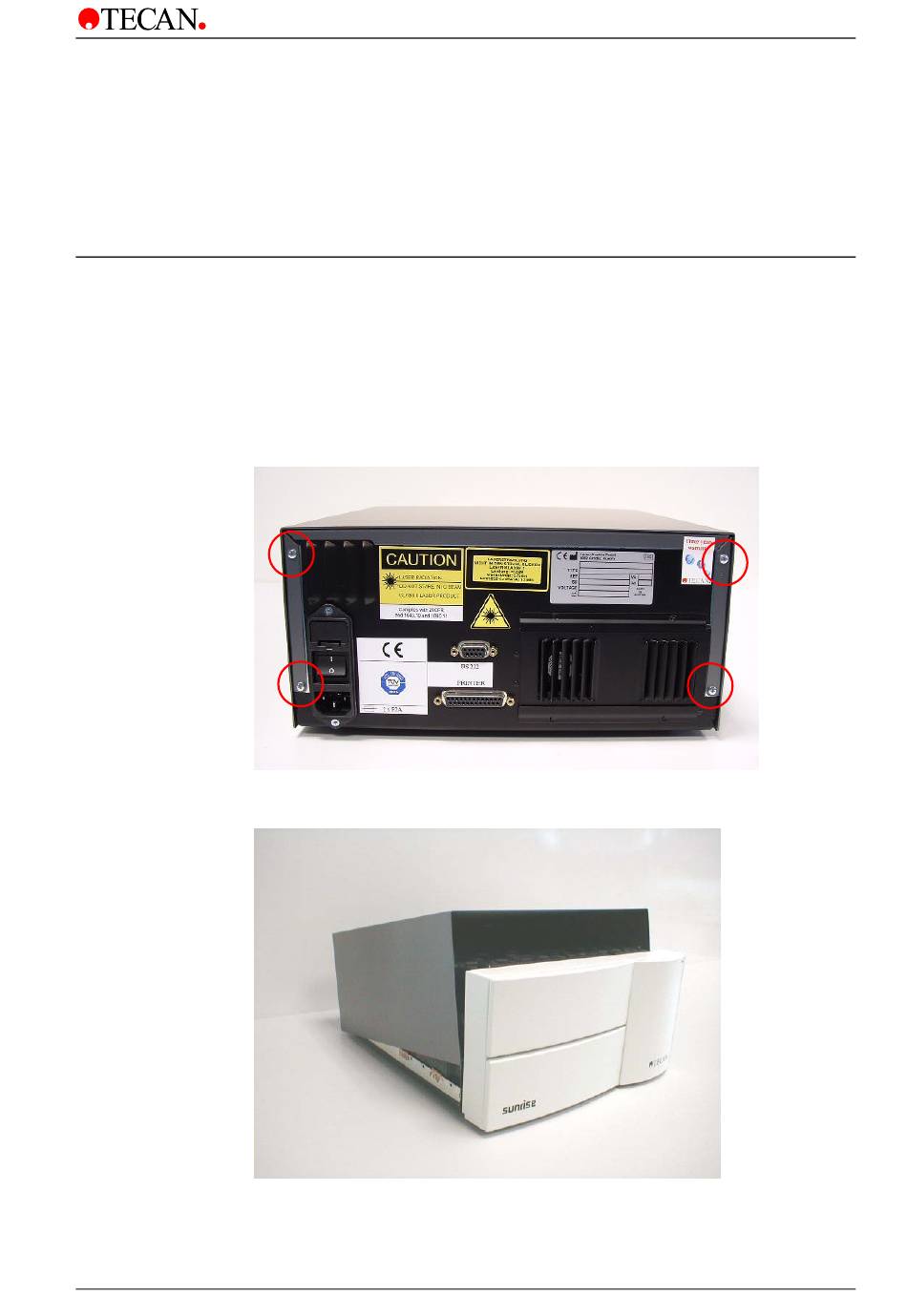

5. Removing and Replacing the Instrument Cover
The instrument top cover is removed using the following procedure:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove the four cover screws on the back panel.
4. Carefully pull the instrument cover backwards, approx 1-2 cm and lift
upwards to remove.
5-1
