6.4 Lamp Replacement

6.5 Filter Slide Replacement

6.6 Lamp and Mirror Unit Parts

6.6.1

Heat Filter and Air Filter

Heat filter
6-4 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
Please refer to chapter 11.2 Lamp Replacement.
Please refer to chapter 11.3 Filter Replacement
The lamp and mirror unit consists of the following serviceable parts:
• Heat filter
• Air filter
• Mirror
• Optical lens
To service these parts the following procedures have to be executed:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove lamp compartment cover.
4. Remove lamp.
5. Replace heat filter.
6. Open the plastic cover with a screw driver and replace the air filter.
7. Replace lamp.
8. Close lamp compartment cover.

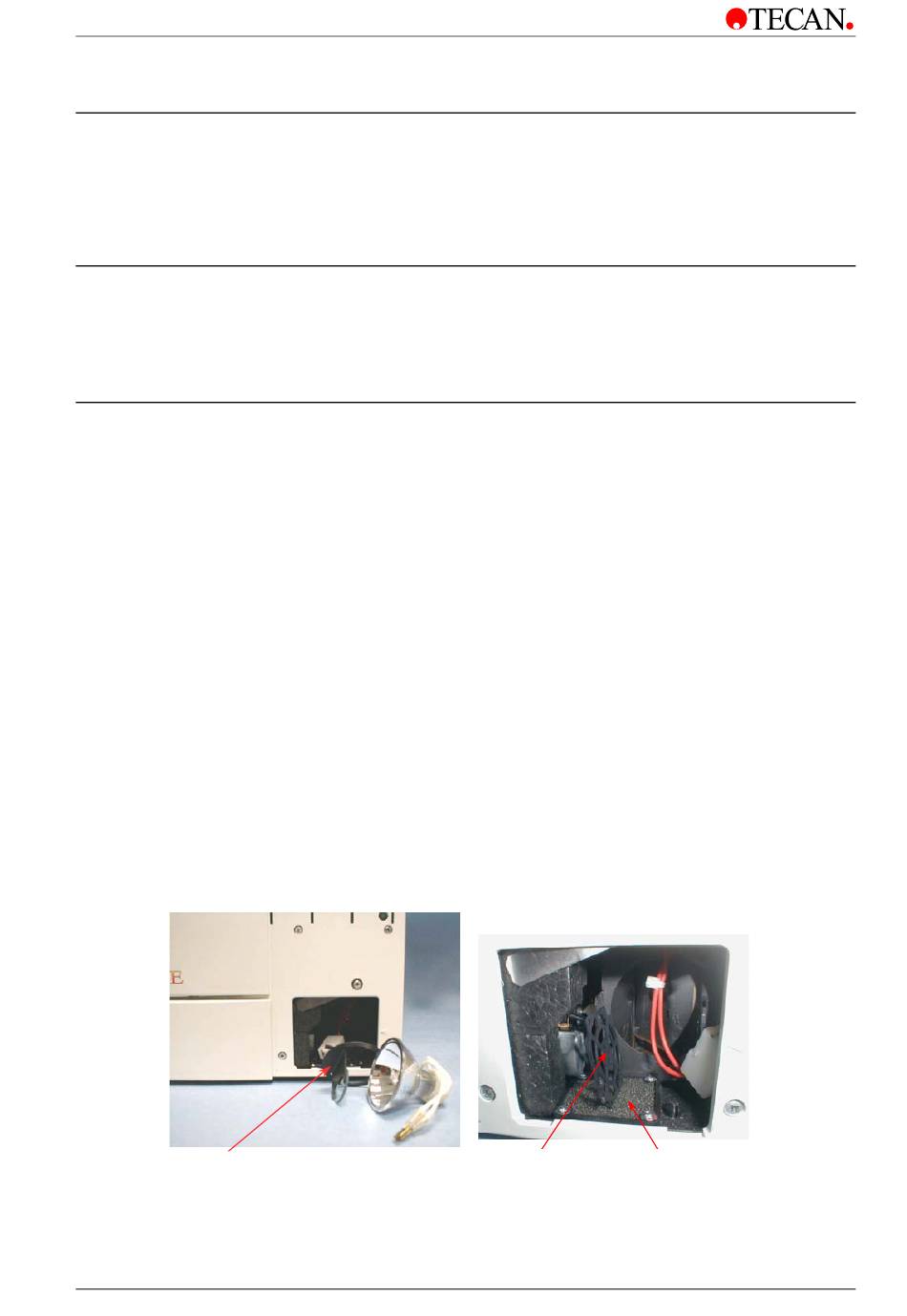

Filter cover Air filter
