Wince Board - tecan sunrise RC Technical Manual

8. Electronic System

8.16 WinCE Board

USB-connector
Connector to PC
for image
downloading)
Internal
USB connector
USB-PCB
shield
8-18 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1

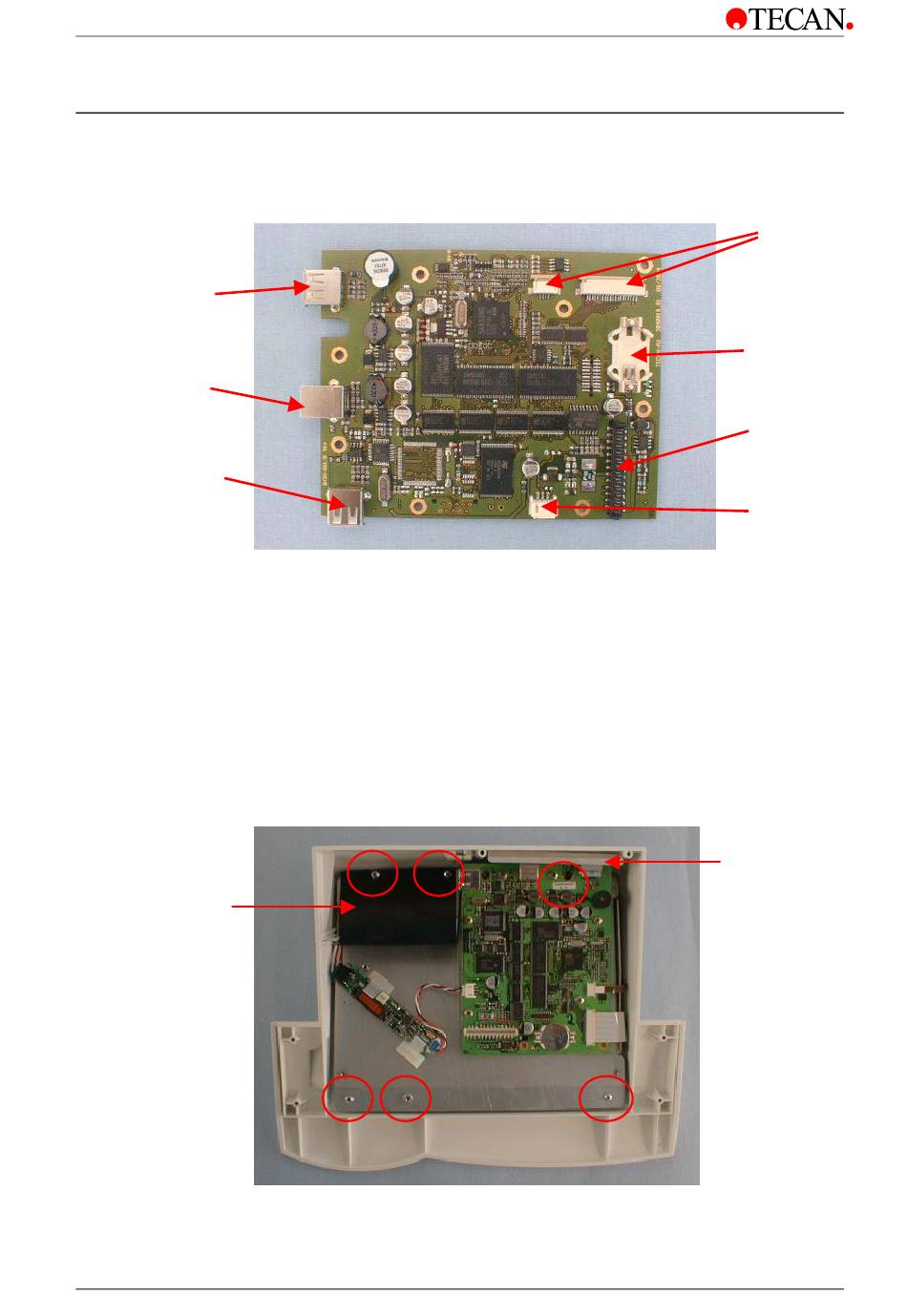

The WinCE Board controls the Touchscreen and processes all the
measurement data.
The WinCE Board is replaced using the following procedure:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove the instrument top cover.
4. Remove the Touchscreen.
5. Disconnect the USB stick.
6. Unscrew the five screws where the complete chassis fixed with.
Connector to
Touchpanel
Battery
Connector to
Mainboard
Connector to
Converter
EMV
shield
2004-10
