11. Maintenance & Cleaning
11-2 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
2. Remove the lamp compartment cover by gently pulling it from the
underside.
3. Push the locating spring bar, on top of the lamp, to the left.
4. Carefully remove the lamp from the lamp holder.
TO PREVENT BURNS, ENSURE THAT THE LAMP IS COLD.
5. Disconnect the lamp power cables from the lamp power connector.
6. Replace the old lamp.
7. Reconnect the lamp power connector.
8. Replace the lamp into the lamp holder.
Please note that the lamp is held in place by three lugs, between which the lamp
is to be inserted.
Insert the lamp so that the cables are at the bottom.
Lamp
9. Lock the lamp into place using the spring bar.
10. Before closing the cover plate, ensure, that the lamp is properly seated, in
the three lugs.
11. Close the lamp compartment cover.
Do not touch the reflective surface and the bulb. Any fingerprints on
these surfaces must be removed with acetone or methylated spirits.
WARNING

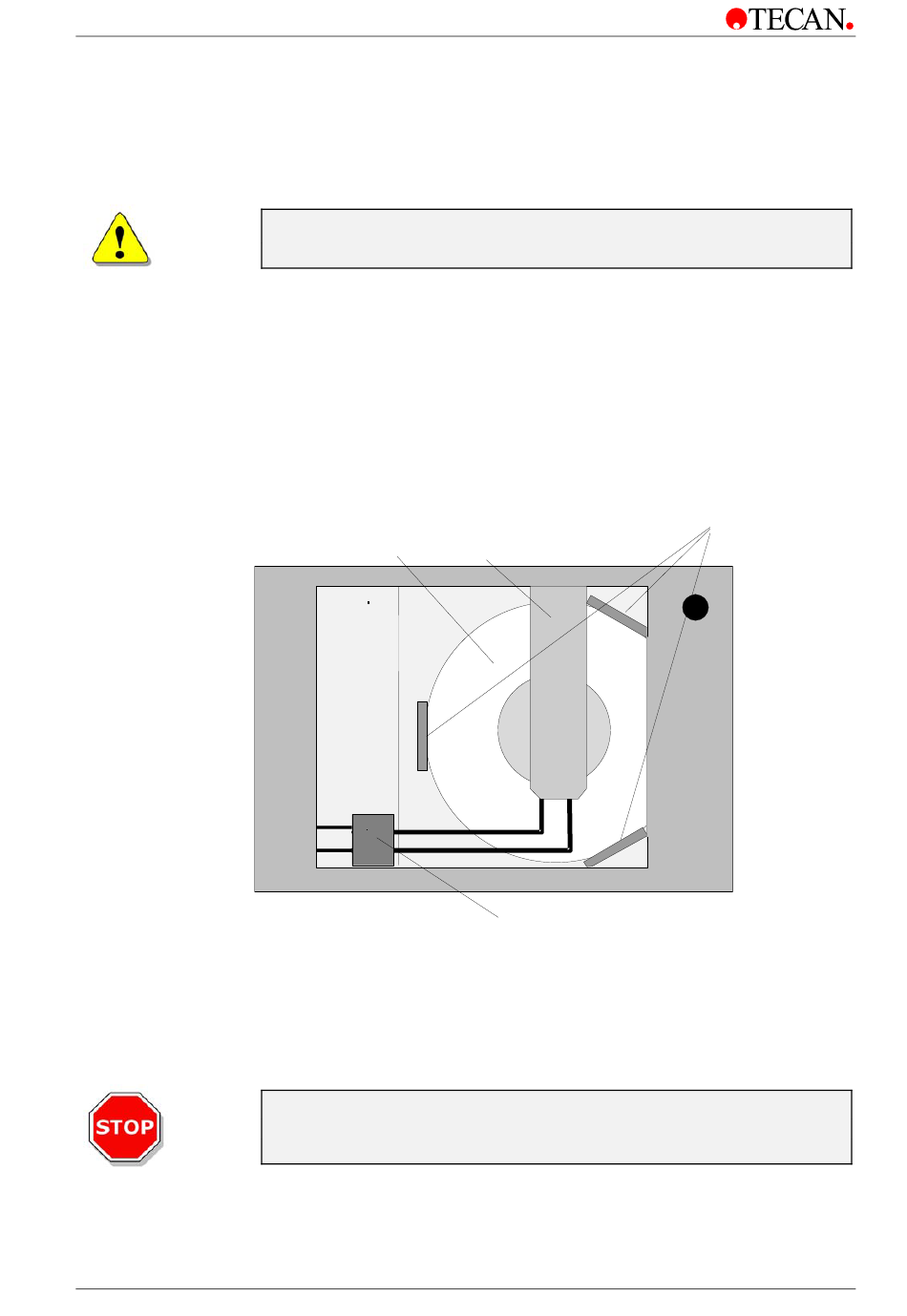

Spring bar
Connecting plug
Caution
Locating lugs
