Power Board (Tuneable Wavelength / 6 Filter) - tecan sunrise RC Technical Manual

8.8 Power Board (Tuneable Wavelength / 6 Filter)

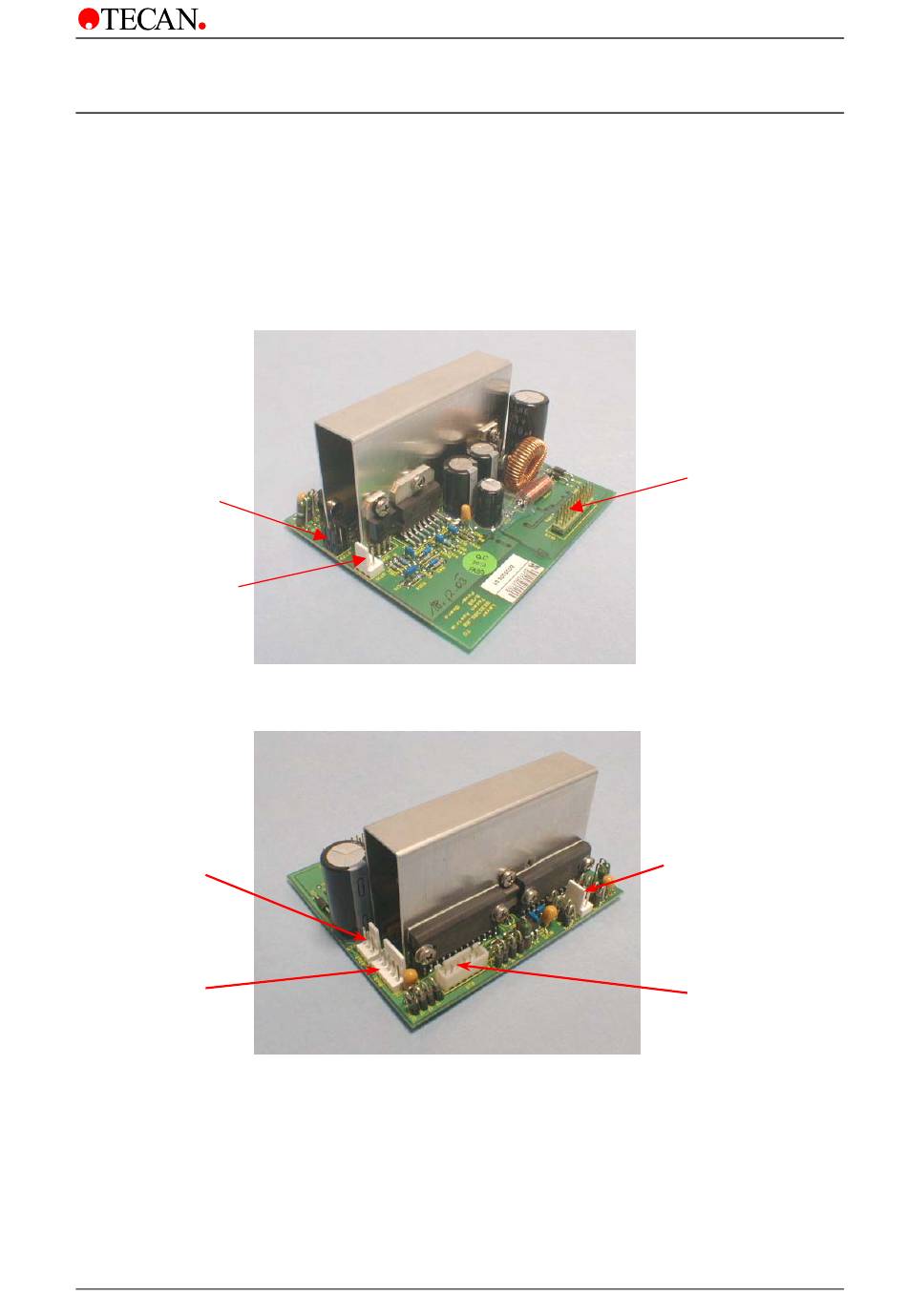

Front view:
Connector to
Power On LED
Connector to
lamp
Rear view:
Connector
to fan
Connector to
power supply
2004-10 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
The board has the same function as the standard board but there is one more
motor driver for control the filter carriage motor (DC Servo Motor by TW Option
and 6-Filter Option).There is also a voltage regulation for the TW board.
8. Electronic System
Connector to
CPU board
Connector to filter transport
Motor (DC Servo Motor)
Connector to
transport motor
