6. Optical System
6.3 Optical System Diagram
SUNRISE ST (Option Standard Optic) Instrument
SUNRISE TW (Tuneable Wavelength Optic) Instrument
6-2
Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1

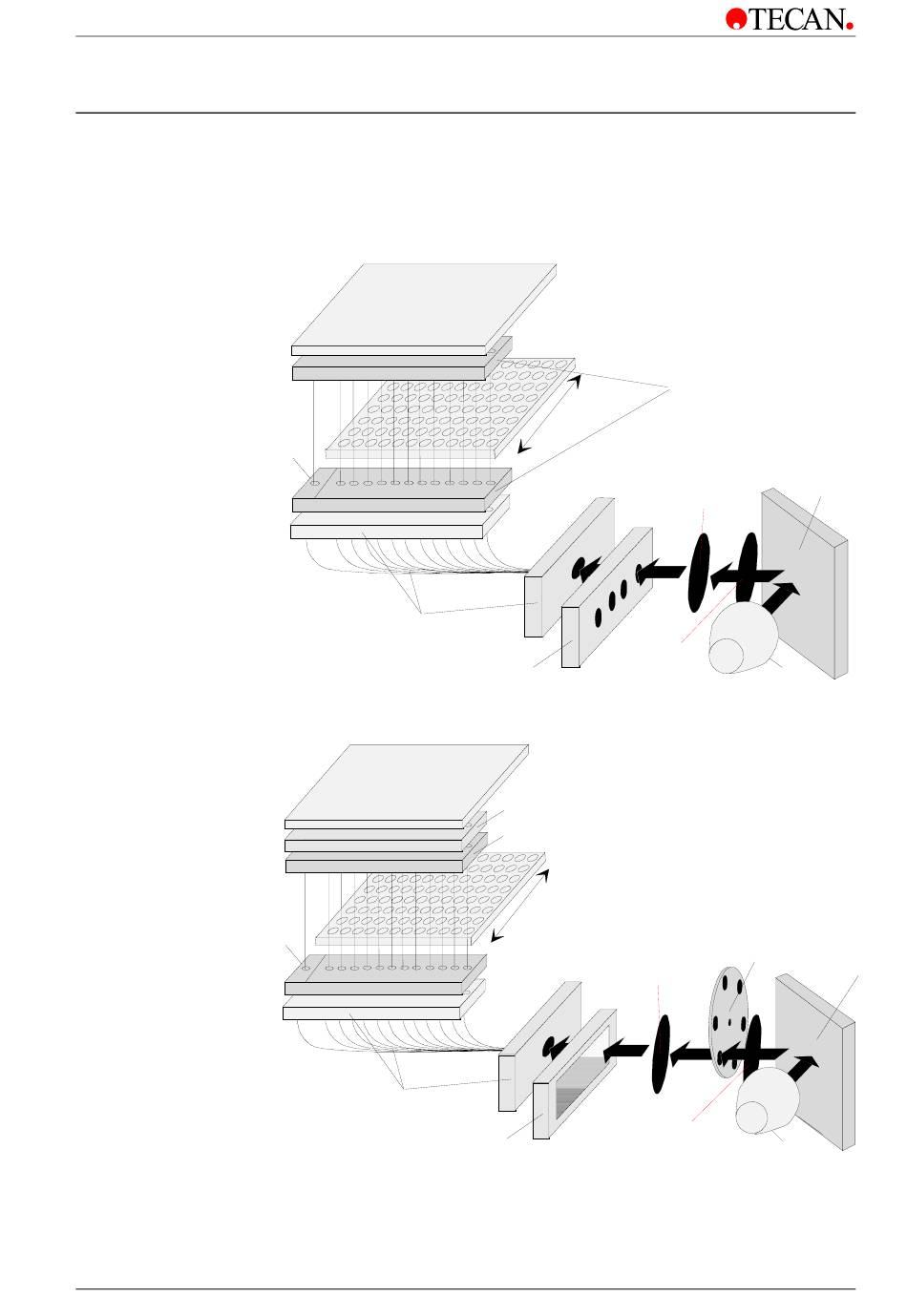

The illustration below illustrates the optical system functions.
Main Board
Reference
Diode
Channel
Fiber Optic Unit
A/D Converter Board
Reference
Diode
Channel
Fiber Optic Unit
Microplate
Filter Carriage
Photo Diode Block
Diode Lens Block
Microplate
Optical Lens
Heat Absorbing
Filter
Filter Slide Block
Transport box
Mirror
Optical Lens
Heat
Absorbing
Filter
Lamp
Blocking
Filter wheel
Lamp
2004-10
Mirror
