1.2 Typical System Installation

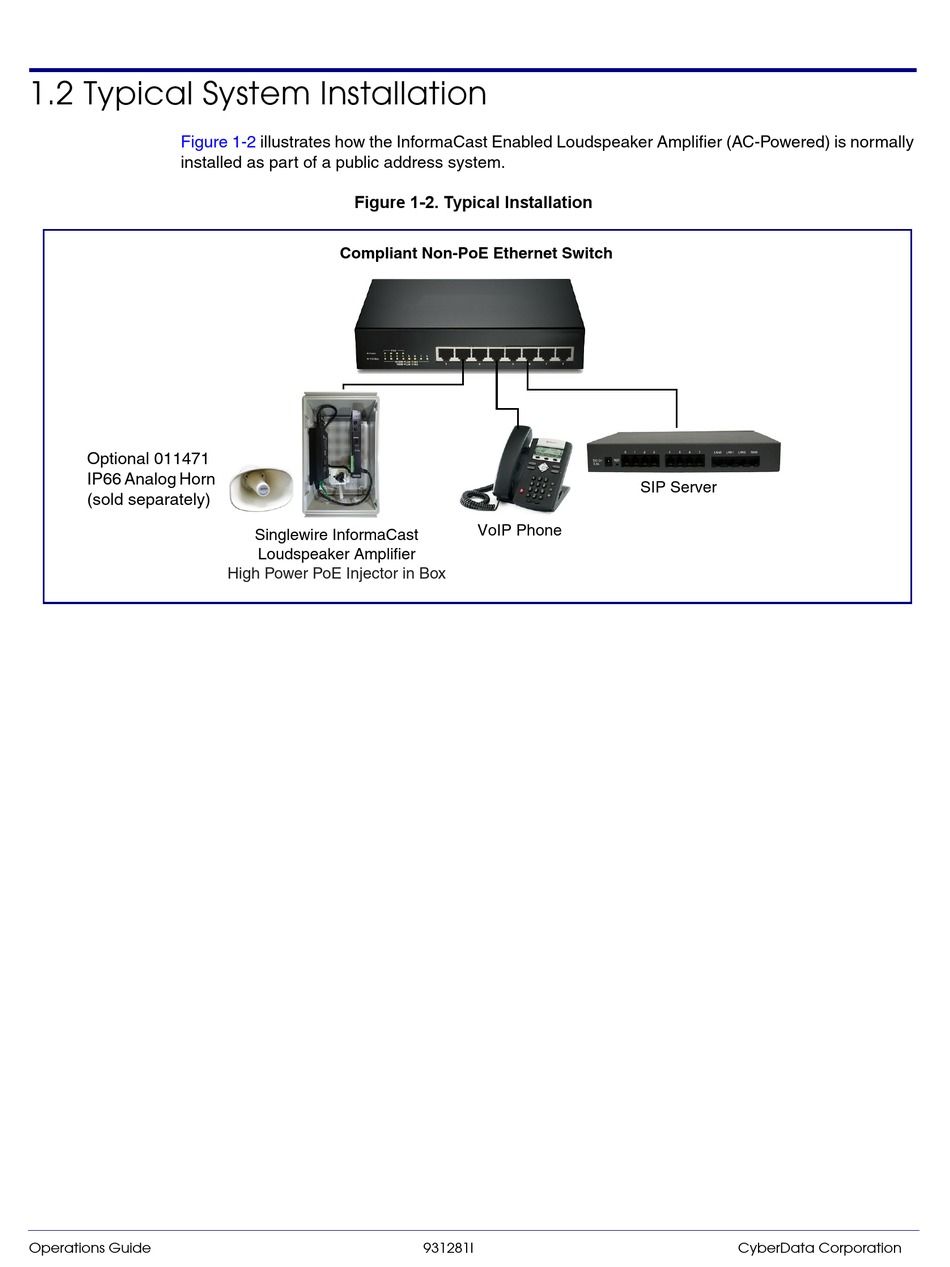

Figure 1-2
installed as part of a public address system.
Optional 011471
IP66 Analog Horn
(sold separately)
Operations Guide
illustrates how the InformaCast Enabled Loudspeaker Amplifier (AC-Powered) is normally
Figure 1-2. Typical Installation
Compliant Non-PoE Ethernet Switch
Singlewire InformaCast
Loudspeaker Amplifier
High Power PoE Injector in Box
VoIP Phone
931281I
SIP Server
CyberData Corporation
